MX36L-WHNEA (1979)

Toyota Cressida

Production Aug 1979 - Aug 1980
Engine 4ME
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

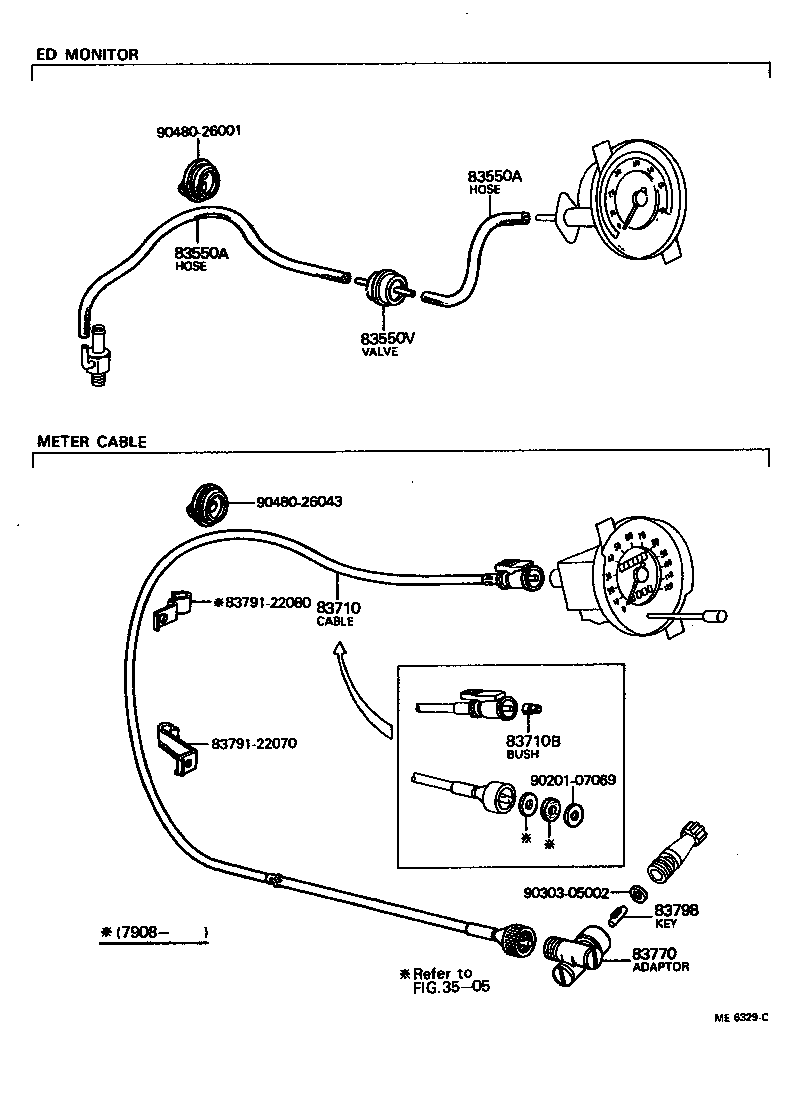

Click highlighted areas on diagram

diagram 3505 83550A 83550A 83550V 83710 83710B 83770 8379122070 8379122080 83798 9020107069 9030305002 9048026001 9048026043
Part # Description Qty Price
83550A - HOSE, ED MONITOR GAGE
95411-10030

MX3#

*H,L=200,MARK=#0

 1
95411-10095

MX3#

*H,L=700,MARK=#0

 1
83550A - HOSE, ED MONITOR GAGE
95411-10030

MX3#

*H,L=200,MARK=#0

 1
95411-10095

MX3#

*H,L=700,MARK=#0

 1
83550V - VALVE, VACUUM TRANSMITTING
90925-01028

MX3#

 1
Common parts
83791-22070
83791-22080
90201-07069
90303-05002
90480-26001
90480-26043
Linked diagrams
3505
