MX36L-WHNEA (1979)

Toyota Cressida

Production Aug 1979 - Aug 1980
Engine 4ME
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

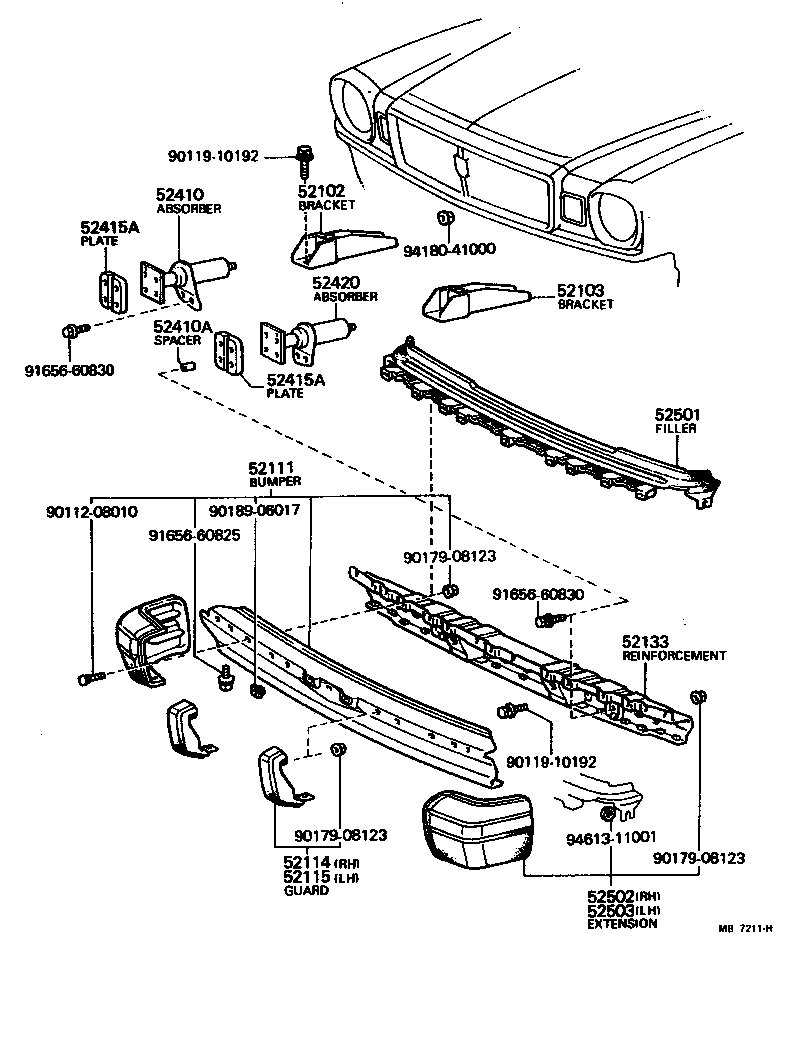

Click highlighted areas on diagram

diagram 52102 52103 52111 52114 52115 52133 52410 52410A 52415A 52415A 52420 52501 52502 52503 9011208010 9011910192 9011910192 9017908123 9017908123 9017908123 9018906017 9165660825 9165660830 9165660830 9418041000 9461311001
Part # Description Qty Price
52114 - GUARD, BUMPER, FRONT RH
52401-29026

MX3#

 1
52115 - GUARD, BUMPER, FRONT LH
52401-29026

MX3#

 1
52133 - REINFORCEMENT, FRONT BUMPER
52021-22011

MX3#

 1
Common parts
90112-08010
90119-10192
90179-08123
90189-06017
91656-60825
91656-60830
94180-41000
94613-11001
