MX36L-WHNEA (1979)

Toyota Cressida

Production Aug 1979 - Aug 1980
Engine 4ME
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

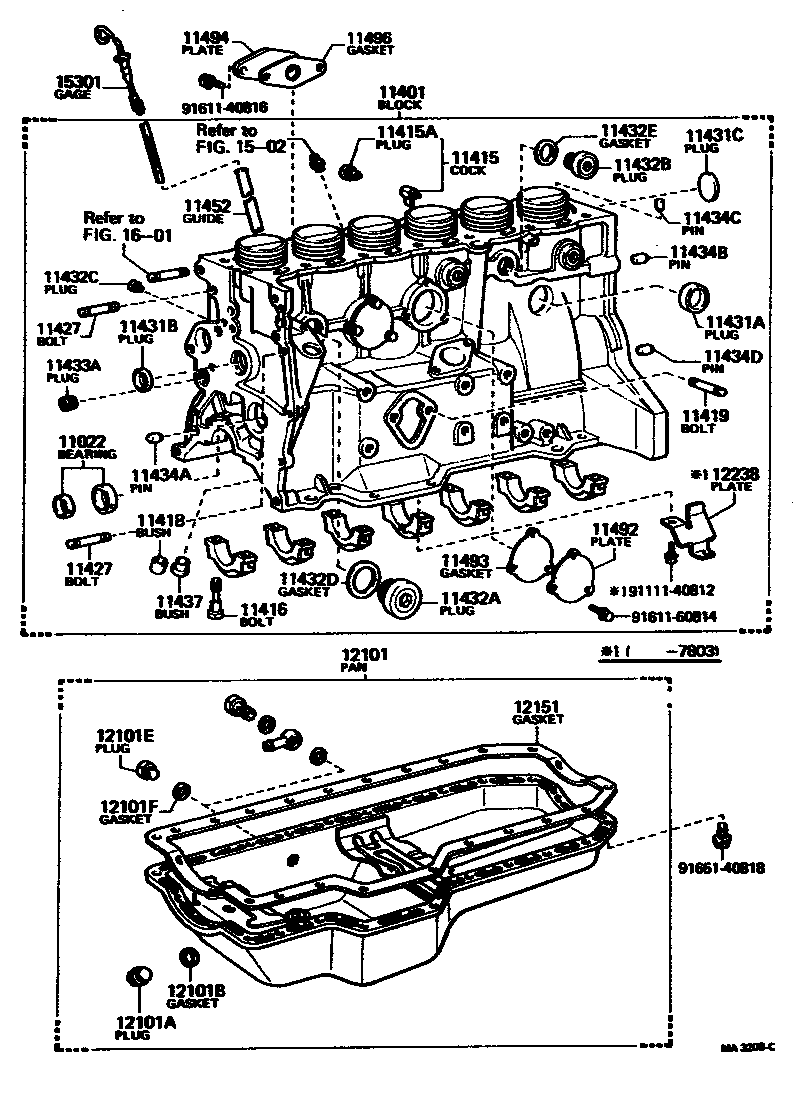

Click highlighted areas on diagram

diagram 11022 11401 11415 11415A 11416 11418 11419 11427 11427 11431A 11431B 11431C 11432A 11432B 11432C 11432D 11432E 11433A 11434A 11434B 11434C 11434D 11437 11452 11492 11493 11494 11496 12101 12101A 12101B 12101E 12101F 12151 12238 1502 15301 1601 9111140812 9161140816 9161160814 9165140818
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49265

4ME..MX3#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

4ME..MX3#

OD=40

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4ME..MX3#

OD=35

 1
12101 - PAN SUB-ASSY, OIL
12101-49275

4ME..MX3#

 1
12238 - PLATE, VENTILATION BAFFLE
12238-45010

4M..MX3#

 1
Common parts
91111-40812
91611-40816
91611-60814
91651-40818
Linked diagrams
1502
1601
