MX36L-WHNA (1977)

Toyota Cressida

Production Aug 1977 - Aug 1979
Engine 4M
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

Click highlighted areas on diagram

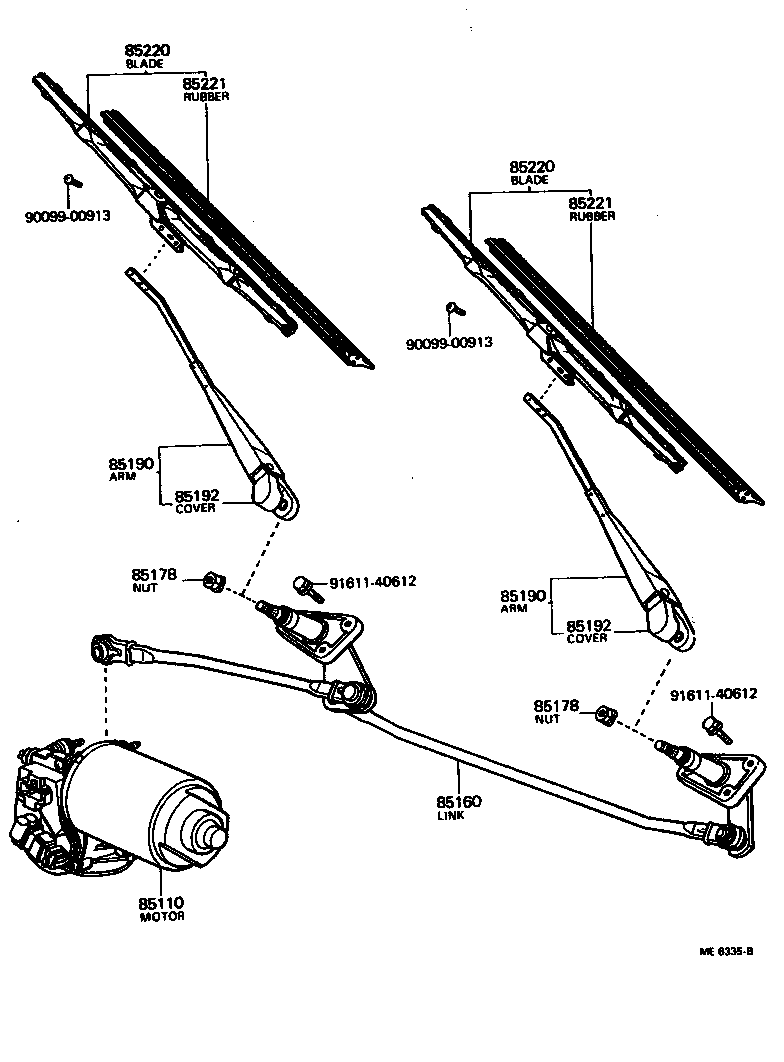

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9161140612 9161140612
Part # Description Qty Price
85190 - ARM ASSY, WINDSHIELD WIPER
85190-22230

MX3#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-22230

MX3#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12260

MX3#

 2
85220-22071

MX3#

 2
85220-22100

MX3#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12260

MX3#

 2
85220-22071

MX3#

 2
85220-22100

MX3#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12070

MX3#

 2
85221-20060

MX3#

 2
85221-20060

MX3#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12070

MX3#

 2
85221-20060

MX3#

 2
85221-20060

MX3#

 2
Common parts
90099-00913
91611-40612

(7708-8008)

Click highlighted areas on diagram

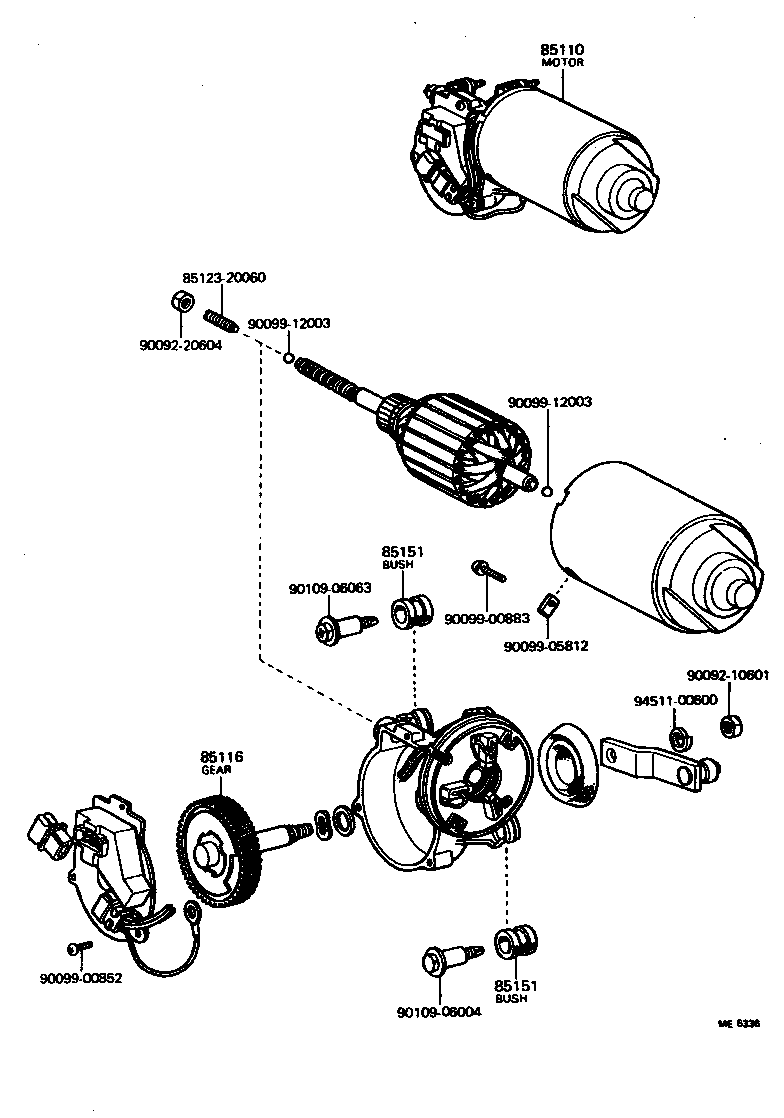

diagram 85110 85116 8512320060 85151 85151 9009210601 9009220604 9009900852 9009900883 9009905812 9009912003 9009912003 9010906004 9010906063 9451100600
Part # Description Qty Price
Common parts
85123-20060
90092-10601
90092-20604
90099-00852
90099-00883
90099-05812
90099-12003
90109-06004
90109-06063
94511-00600
