MX36L-WHNA (1977)

Toyota Cressida

Production Aug 1977 - Aug 1979
Engine 4M
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

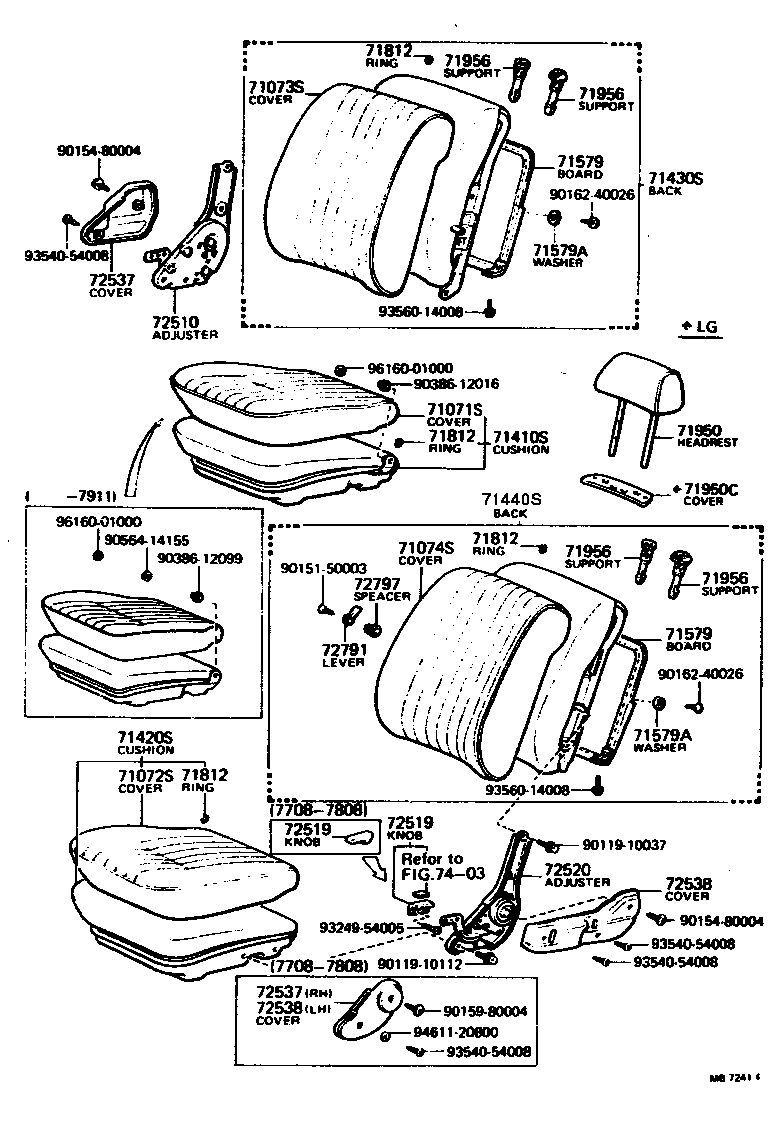

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71579 71579 71579A 71579A 71812 71812 71812 71812 71950 71950C 71956 71956 71956 71956 72510 72519 72519 72520 72537 72537 72538 72538 72791 72797 7403 9011910037 9011910112 9015150003 9015480004 9015480004 9015980004 9016240026 9016240026 9038612016 9038612099 9056414155 9324954005 9354054008 9354054008 9354054008 9354054008 9356014008 9356014008 9461120800 9616001000 9616001000
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-2232001

MX3#

FB.BLACK,BLACK

 1
71071-2232003

MX3#

FB.GRAY,GRAY

 1
71071-2241003

MX3#

PF.GRAY,GRAY

 1
71071-2241001

MX3#

PF.BLACK,BLACK

 1
71071-2241005

MX3#

PF.BEIGE,BEIGE

 1
71071-2232005

MX3#

FB.BEIGE,BEIGE

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-2212001

MX3#

FB.BLACK,BLACK

 1
71072-2218003

MX3#

PF.GRAY,GRAY

 1
71072-2212003

MX3#

FB.GRAY,GRAY

 1
71072-2212005

MX3#

FB.BEIGE,BEIGE

 1
71072-2218005

MX3#

PF.BEIGE,BEIGE

 1
71072-2218001

MX3#

PF.BLACK,BLACK

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-2253001

MX3#

FB.BLACK,BLACK

 1
71073-2254003

MX3#

PF.GRAY,GRAY

 1
71073-2253005

MX3#

FB.BEIGE,BEIGE

 1
71073-2253003

MX3#

FB.GRAY,GRAY

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-2251003

MX3#

FB.GRAY,GRAY

 1
71074-2258003

MX3#

PF.GRAY,GRAY

 1
71074-2251001

MX3#

FB.BLACK,BLACK

 1
71074-2251005

MX3#

FB.BEIGE,BEIGE

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-2240001

MX3#

FB.BLACK,BLACK

 1
71410-2240003

MX3#

FB.GRAY,GRAY

 1
71410-2245003

MX3#

PF.GRAY,GRAY

 1
71410-2245001

MX3#

PF.BLACK,BLACK

 1
71410-2245005

MX3#

PF.BEIGE,BEIGE

 1
71410-2240005

MX3#

FB.BEIGE,BEIGE

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-2217003

MX3#

FB.GRAY,GRAY

 1
71420-2217005

MX3#

FB.BEIGE,BEIGE

 1
71420-2221001

MX3#

PF.BLACK,BLACK

 1
71420-2221005

MX3#

PF.BEIGE,BEIGE

 1
71420-2217001

MX3#

FB.BLACK,BLACK

 1
71420-2221003

MX3#

PF.GRAY,GRAY

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-2252003

MX3#

FB.GRAY,GRAY

 1
71430-2252005

MX3#

FB.BEIGE,BEIGE

 1
71430-2257001

MX3#

PF.BLACK,BLACK

 1
71430-2257005

MX3#

PF.BEIGE,BEIGE

 1
71430-2252001

MX3#

FB.BLACK,BLACK

 1
71430-2257003

MX3#

PF.GRAY,GRAY

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-2246005

MX3#

PF.BEIGE,BEIGE

 1
71440-2241003

MX3#

FB.GRAY,GRAY

 1
71440-2241001

MX3#

FB.BLACK,BLACK

 1
71440-2241005

MX3#

FB.BEIGE,BEIGE

 1
71440-2246001

MX3#

PF.BLACK,BLACK

 1
71440-2246003

MX3#

PF.GRAY,GRAY

 1
71579 - BOARD, FRONT SEAT BACK
71701-2204005

MX3#

BEIGE,BEIGE

 2
71701-2204003

MX3#

GRAY,GRAY

 2
71701-2204001

MX3#

BLACK,BLACK

 2
71579 - BOARD, FRONT SEAT BACK
71701-2204005

MX3#

BEIGE,BEIGE

 2
71701-2204003

MX3#

GRAY,GRAY

 2
71701-2204001

MX3#

BLACK,BLACK

 2
71579A - WASHER, FRONT SEAT BACK BOARD SETTING
71328-30010

MX3#

 2
71579A - WASHER, FRONT SEAT BACK BOARD SETTING
71328-30010

MX3#

 2
71950 - HEADREST ASSY, FRONT SEAT
71910-2224003

MX3#

GRAY,GRAY

 2
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-22050

MX3#

 1
72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM
72525-2201005

MX3#

FOR RH.BEIGE,BEIGE

 1
72526-2201001

MX3#

FOR LH.BLACK,BLACK

 1
72526-2201005

MX3#

FOR LH.BEIGE,BEIGE

 1
72525-2201001

MX3#

FOR RH.BLACK,BLACK

 1
72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM
72525-2201005

MX3#

FOR RH.BEIGE,BEIGE

 1
72526-2201001

MX3#

FOR LH.BLACK,BLACK

 1
72526-2201005

MX3#

FOR LH.BEIGE,BEIGE

 1
72525-2201001

MX3#

FOR RH.BLACK,BLACK

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-22050

MX3#

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71821-2205001

MX3#

BLACK,BLACK

 1
71821-2205005

MX3#

BEIGE,BEIGE

 1
71821-2205003

MX3#

GRAY,GRAY

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71821-2205001

MX3#

BLACK,BLACK

 1
71821-2205005

MX3#

BEIGE,BEIGE

 1
71821-2205003

MX3#

GRAY,GRAY

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-2205001

MX3#

BLACK,BLACK

 1
71822-2205003

MX3#

GRAY,GRAY

 1
71822-2205005

MX3#

BEIGE,BEIGE

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71822-2205001

MX3#

BLACK,BLACK

 1
71822-2205003

MX3#

GRAY,GRAY

 1
71822-2205005

MX3#

BEIGE,BEIGE

 1
Common parts
90119-10037
90119-10112
90151-50003
90154-80004
90159-80004
90162-40026
90386-12016
90386-12099
90564-14155
93249-54005
93540-54008
93560-14008
94611-20800
96160-01000
Linked diagrams
7403
