MX36L-WHNA (1977)

Toyota Cressida

Production Aug 1977 - Aug 1979
Engine 4M
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7908)

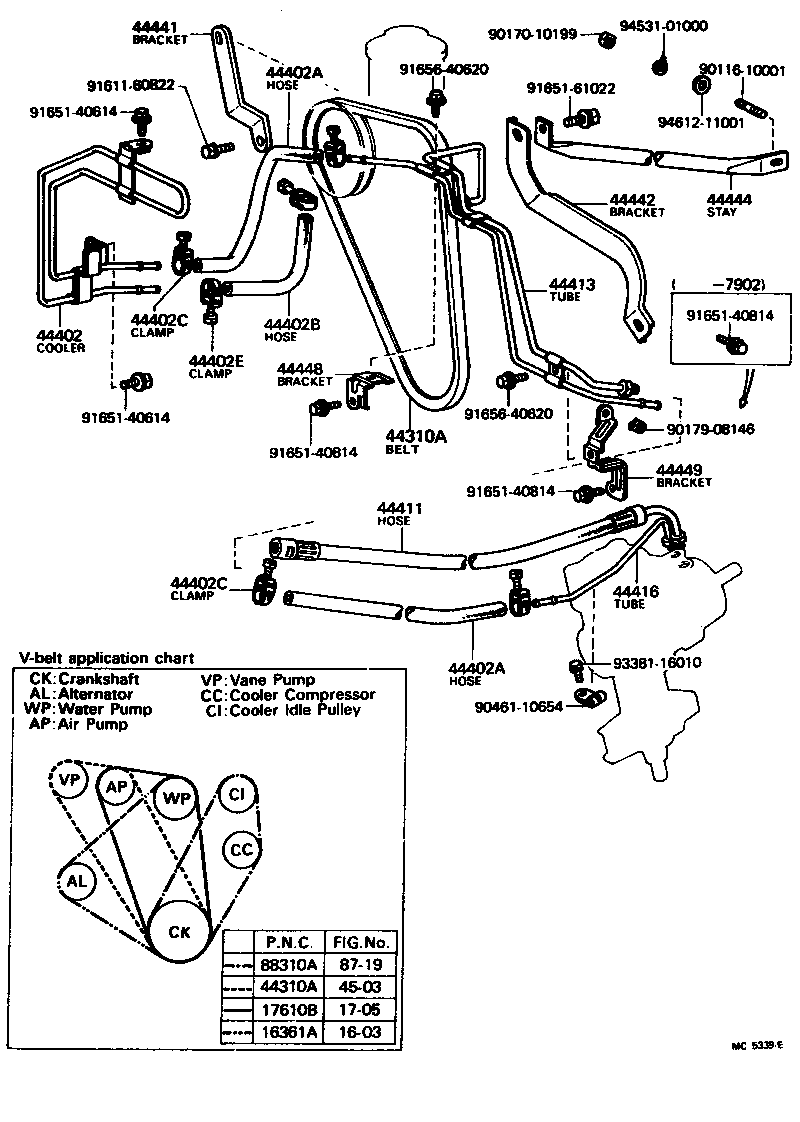

Click highlighted areas on diagram

diagram 44310A 44402 44402A 44402A 44402B 44402C 44402C 44402E 44411 44413 44416 44441 44442 44444 44448 44449 9011610001 9017010199 9017908146 9046110654 9161160822 9165140614 9165140614 9165140814 9165140814 9165140814 9165161022 9165640620 9165640620 9338116010 9453101000 9461211001
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22040

MX3#

 1
44411 - HOSE, PRESSURE FEED
44411-22060

MX3#

 1
44413 - TUBE, PRESSURE FEED, NO.1
44413-22030

MX3#

 1
Common parts
90116-10001
90170-10199
90179-08146
90461-10654
91611-60822
91651-40614
91651-40814
91651-61022
91656-40620
93381-16010
94531-01000
94612-11001
