RT135LG-TWHDSA (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )WG

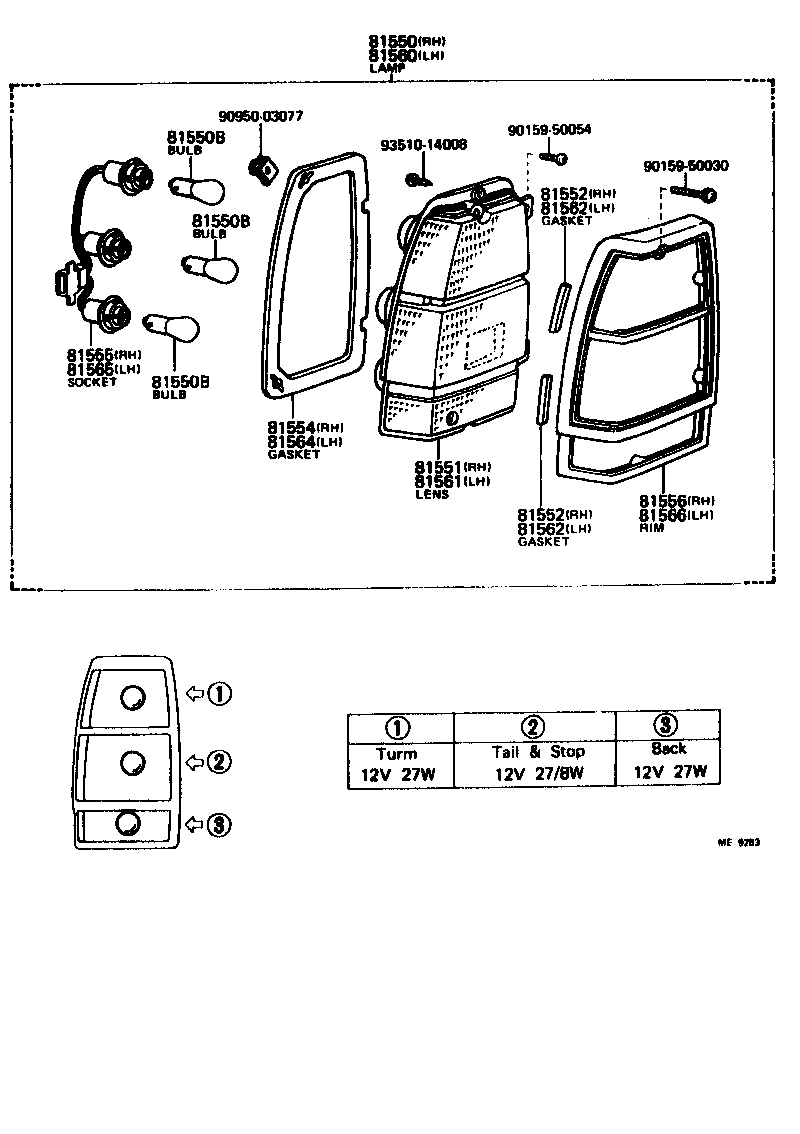

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81552 81552 81554 81555 81556 81560 81561 81562 81562 81564 81565 81566 9015950030 9015950054 9095003077 9351014008
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80082

RT135..WG

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

RT13#

12V 27/8W,12V 27/8W

 4
99132-11270

RT13#

12V 27W,12V 27W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

RT13#

12V 27/8W,12V 27/8W

 4
99132-11270

RT13#

12V 27W,12V 27W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21270

RT13#

12V 27/8W,12V 27/8W

 4
99132-11270

RT13#

12V 27W,12V 27W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91260

RT135..WG

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-91255

RT135..WG

 2
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-91255

RT135..WG

 2
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91255

RT13#..WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-23130

RT135..WG

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-91258

RT135..WG

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80085

RT135..WG

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91260

RT135..WG

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-91255

RT135..WG

 2
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-91255

RT135..WG

 2
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-91255

RT13#..WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-23130

RT135..WG

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-91258

RT135..WG

 1
Common parts
90159-50030
90159-50054
90950-03077
93510-14008
