RT135L-TLMESA (1980)
Toyota Corona
Production
Aug 1980
-
Dec 1981
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

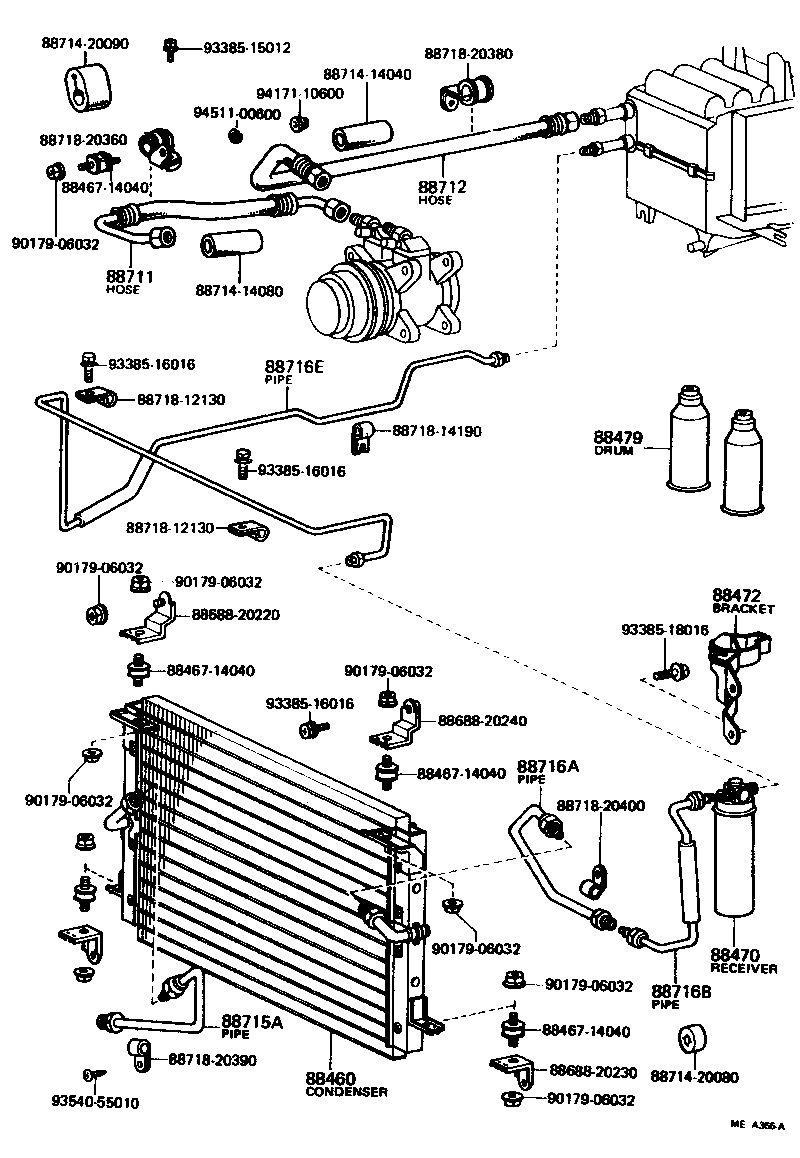

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20150 |
RT135 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-14111 |
RT13# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20173 |
RT135..USA |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-14490 |
RT135..USA |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20100 |
RT135 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-20471 |
RT135 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20491 |
RT135 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-20481 |
RT135 |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88688-20220 | ||||
| 88688-20230 | ||||
| 88688-20240 | ||||
| 88714-14040 | ||||
| 88714-14080 | ||||
| 88714-20080 | ||||
| 88714-20090 | ||||
| 88718-12130 | ||||
| 88718-14190 | ||||
| 88718-20360 | ||||
| 88718-20380 | ||||
| 88718-20390 | ||||
| 88718-20400 | ||||
| 90179-06032 | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93540-55010 | ||||
| 94171-10600 | ||||
| 94511-00600 | ||||
