RT135L-TLMESA (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )LE

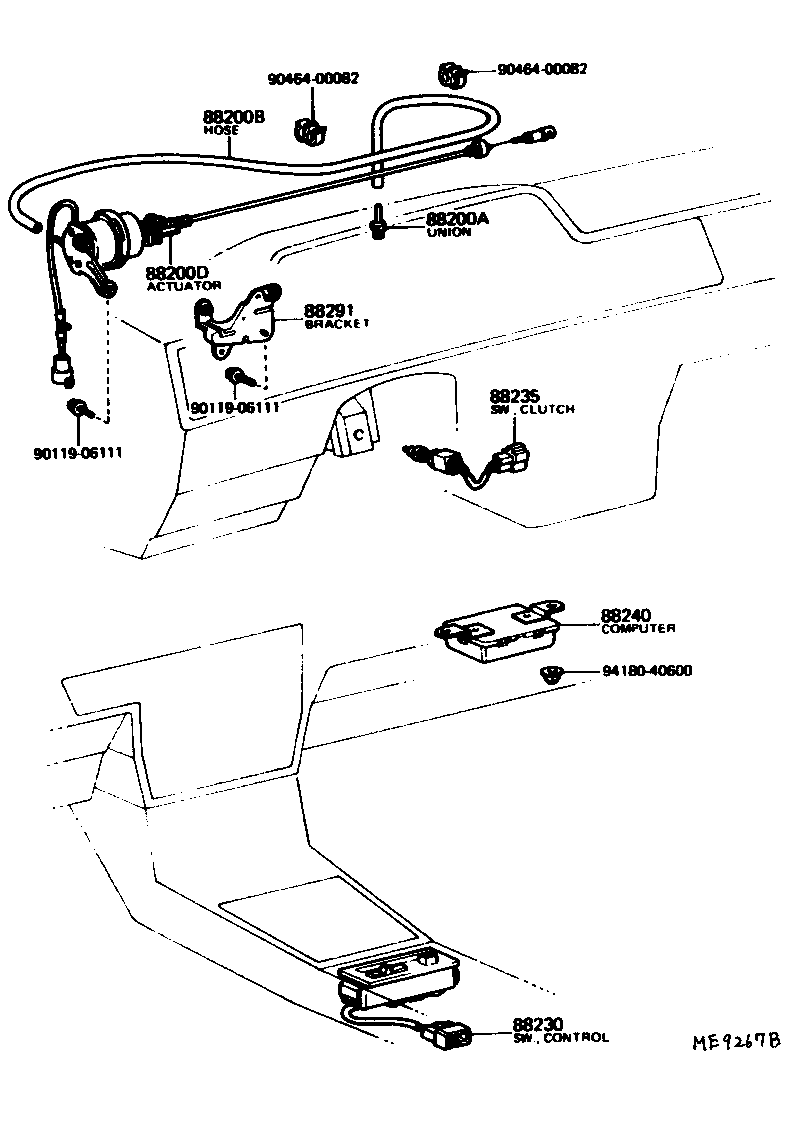

Click highlighted areas on diagram

diagram 88200A 88200B 88200D 88230 88235 88240 88291 9011906111 9011906111 9046400082 9046400082 9418040600
Part # Description Qty Price
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90404-51010

RT135..LE

 1
90404-51093

RT135..LE

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08197

RT135..LE

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-20010

RT135..LE

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-20010

RT135..LE

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-14020

RT135..5F..LE

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-20010

RT135..LE

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-20010

RT135..LE

 1
Common parts
90119-06111
90464-00082
94180-40600
