RT135L-TLHESK (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

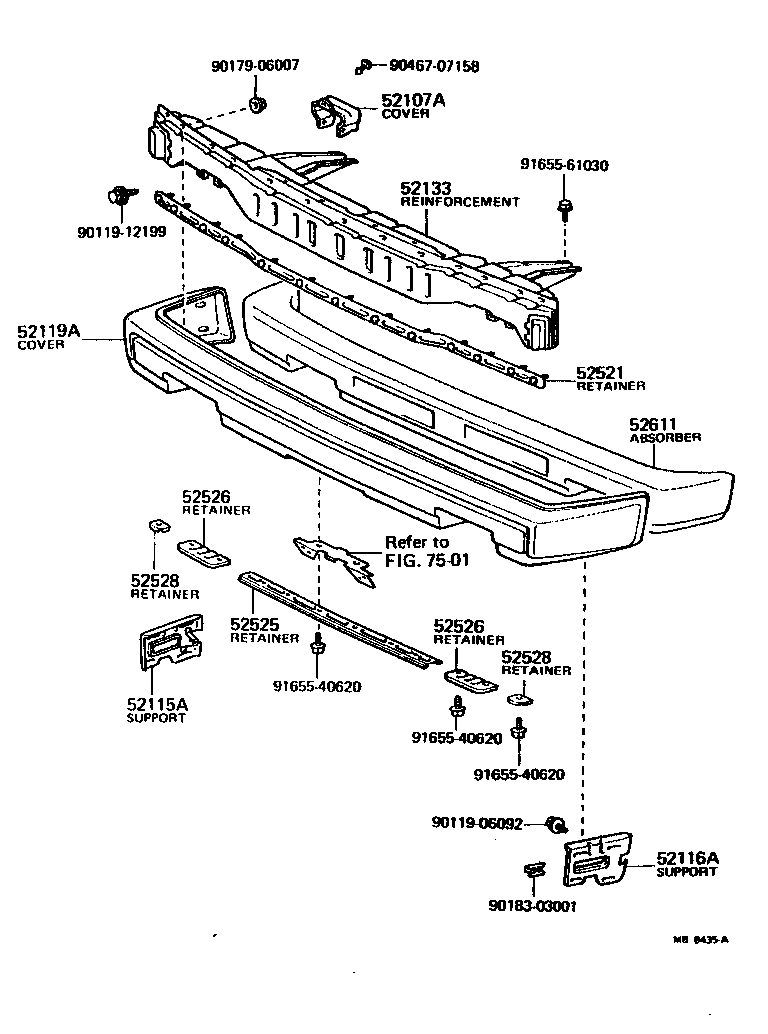

Click highlighted areas on diagram

diagram 52107A 52115A 52116A 52119A 52133 52521 52525 52526 52526 52528 52528 52611 7501 9011906092 9011912199 9017906007 9018303001 9046707158 9165540620 9165540620 9165540620 9165561030
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52061-20010

RT135

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52062-20010

RT135

 1
52119A - COVER, FRONT BUMPER
52119-20031

RT135

 1
52133 - REINFORCEMENT, FRONT BUMPER
52021-20031

RT135

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20010

RT135

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-20011

RT135

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-20011

RT135

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-20011

RT135

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

RT13#

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

RT13#

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20011

RT135

 1
Common parts
90119-06092
90119-12199
90179-06007
90183-03001
90467-07158
91655-40620
91655-61030
Linked diagrams
7501
