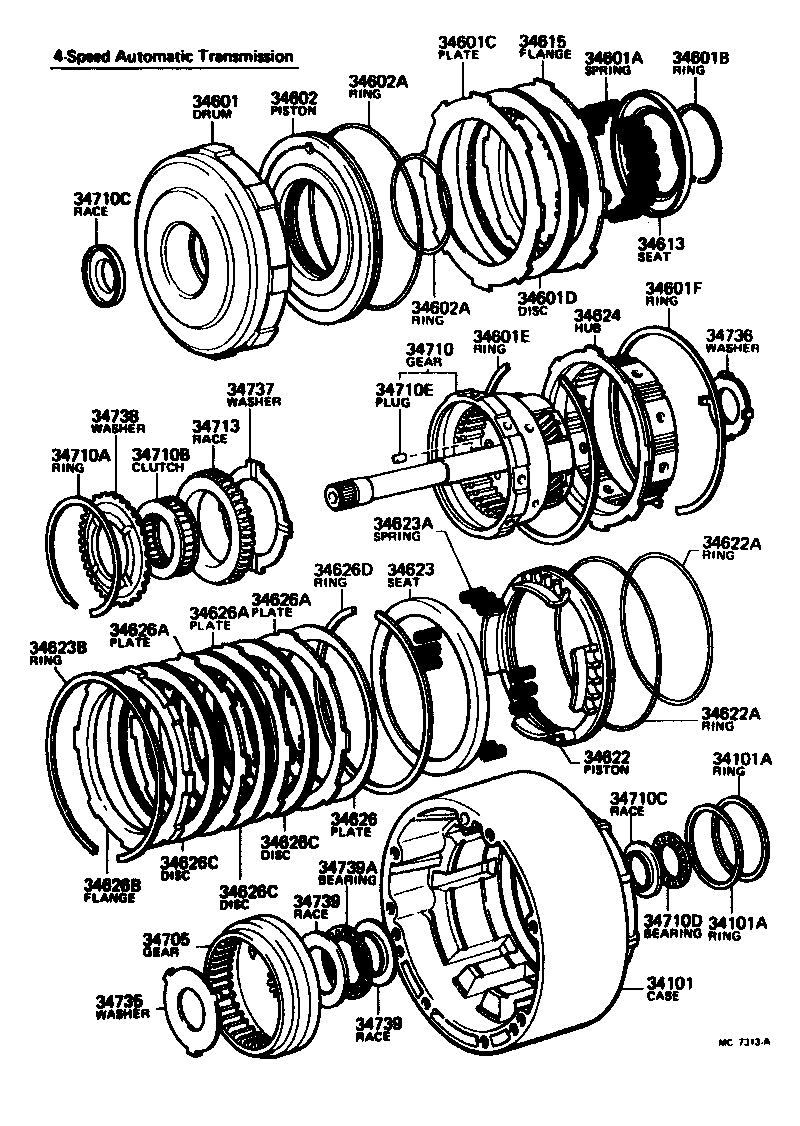

RT135L-TLHESA (1980)
Toyota Corona
(8008- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-30040 |
RT135..4FC |
1 | ||
| 34101-30041 |
RT135..4FC |
1 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-22020 |
RT135..4FC |
2 | ||
| 35617-16010 |
RT135..4FC |
2 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-22020 |
RT135..4FC |
2 | ||
| 35617-16010 |
RT135..4FC |
2 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30011 |
RT135..4FC |
1 | ||
| 34601-30010 |
RT135..4FC |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-11007 |
RT135..4FC |
18 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
RT135..4FC |
1 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30070 |
RT135..4FC |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-22020 |
RT135..4FC |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
RT135..4FC |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
RT135..4FC |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30010 |
RT135..4FC |
1 | ||
| 34602-30011 |
RT135..4FC |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
RT135..4FC ID=56 |
1 | ||
| 90301-99192 |
RT135..4FC ID=122 |
1 | ||
| 90301-99016 |
RT135..4FC ID=117 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-57188 |
RT135..4FC ID=56 |
1 | ||
| 90301-99192 |
RT135..4FC ID=122 |
1 | ||
| 90301-99016 |
RT135..4FC ID=117 |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-30010 |
RT135..4FC |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30010 |
RT135..4FC T=4.0 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-22010 |
RT135..4FC |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99193 |
RT135..4FC OD=108.5,ID=106 |
1 | ||
| 90301-99015 |
RT135..4FC OD=108.5,ID=106 |
1 | ||
| 90301-99192 |
RT135..4FC OD=125,ID=122.5 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99193 |
RT135..4FC OD=108.5,ID=106 |
1 | ||
| 90301-99015 |
RT135..4FC OD=108.5,ID=106 |
1 | ||
| 90301-99192 |
RT135..4FC OD=125,ID=122.5 |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30010 |
RT135..4FC |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-10671 |
RT135..4FC |
16 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99139 |
RT135..4FC |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-30010 |
RT135..4FC |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30020 |
RT135..4FC |
1 | ||
| 34626-30010 |
RT135..4FC |
1 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-22060 |
RT135..4FC |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-22060 |
RT135..4FC |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-22060 |
RT135..4FC |
3 | ||
| 34626B - FLANGE, REAR CLUTCH (FOR OVERDRIVE) | ||||
| 34625-22010 |
RT135..4FC |
1 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-22020 |
RT135..4FC |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-22020 |
RT135..4FC |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-22020 |
RT135..4FC |
3 | ||
| 34626D - RING, HOLE SNAP (FOR OVERDRIVE) | ||||
| 90521-99139 |
RT135..4FC |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30010 |
RT135..4FC |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-30010 |
RT135..4FC |
1 | ||
| 34710-22010 |
RT135..4FC |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-79148 |
RT135..4FC |
1 | ||
| 34710B - CLUTCH, 1WAY, NO.1(FOR OVERDRIVE) | ||||
| 35791-30011 |
RT135..4FC |
1 | ||
| 35791-30020 |
RT135..4FC |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
RT135..4FC FR |
1 | ||
| 34739-30010 |
RT135..4FC RR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
RT135..4FC FR |
1 | ||
| 34739-30010 |
RT135..4FC RR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
RT135..4FC |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
RT135..4FC |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30010 |
RT135..4FC |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30010 |
RT135..4FC |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
RT135..4FC |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30010 |
RT135..4FC |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30010 |
RT135..4FC |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
RT135..4FC FR |
1 | ||
| 35789-22030 |
RT135..4FC RR |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
RT135..4FC FR |
1 | ||
| 35789-22030 |
RT135..4FC RR |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
RT135..4FC |
1 | ||
