RT135L-TLHESA (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )4FC

Click highlighted areas on diagram

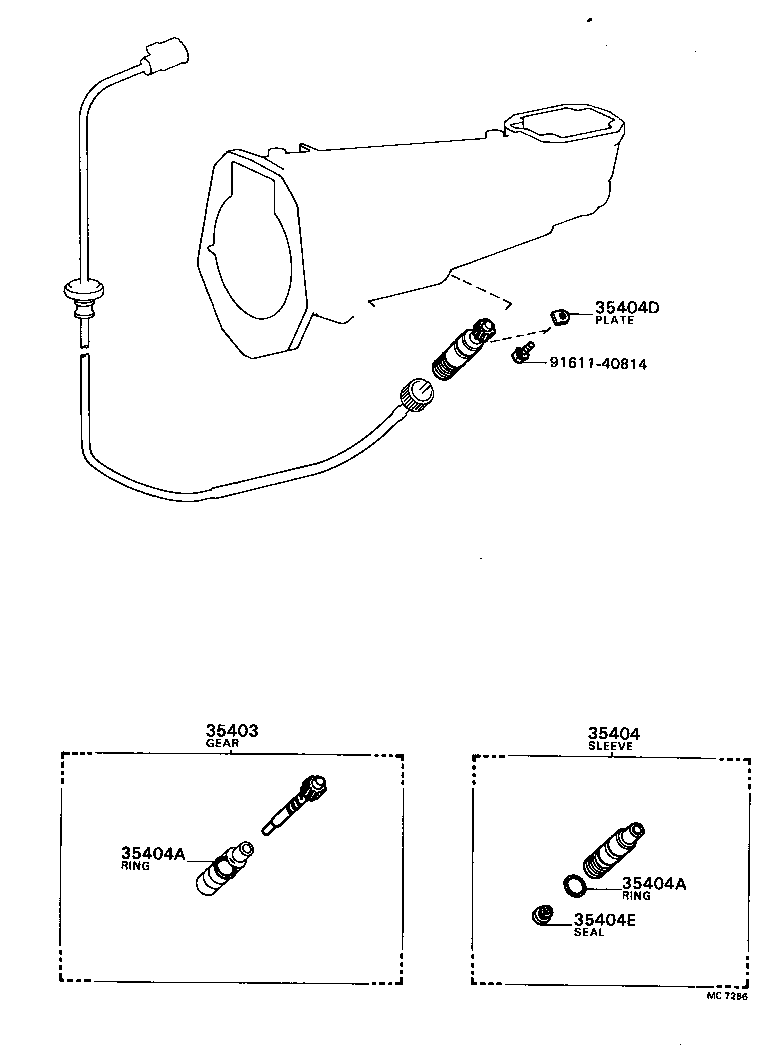

diagram 35403 35404 35404A 35404A 35404D 35404E 9161140814
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-69016

RT135..4FC

N=17

 1
33403-69065

RT135..4FC..LE

N=18

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-30040

RT135..4FC

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT13#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

RT13#..ATM

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

RT135..4FC

 1
35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

RT135..4FC

 1
Common parts
91611-40814
