RT135L-TLHESA (1980)
Toyota Corona

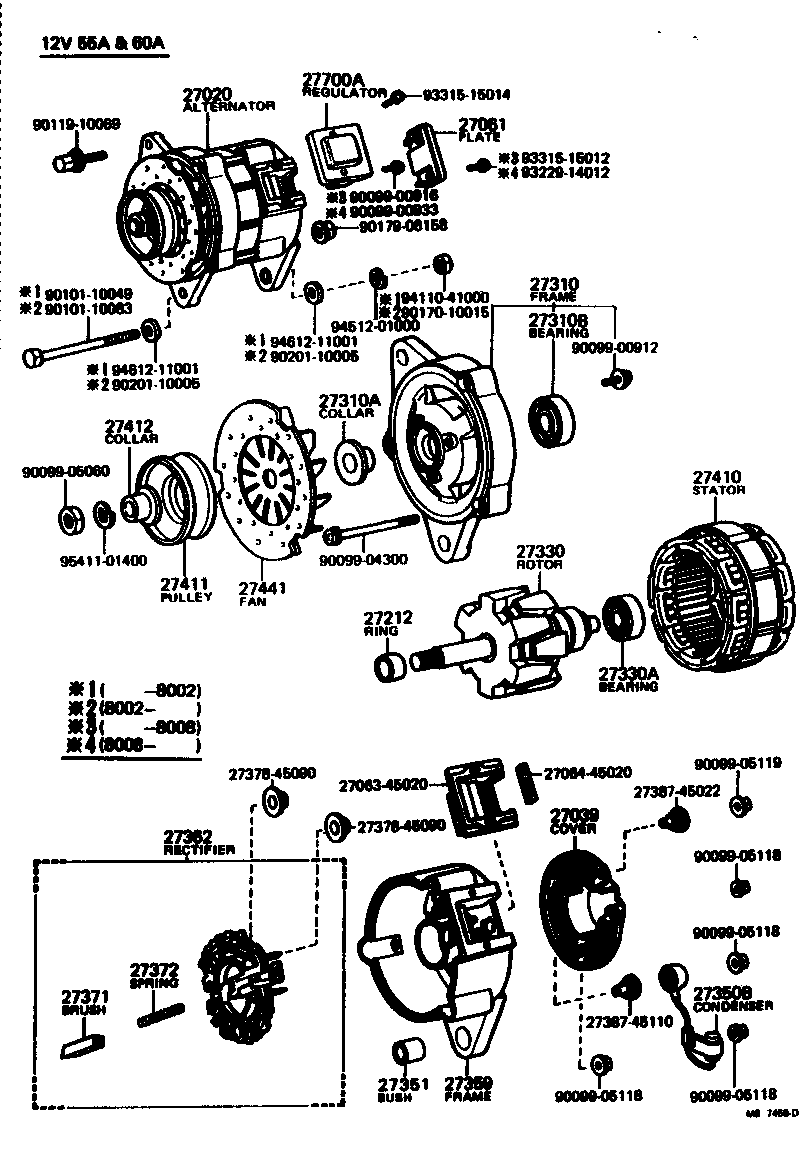

(7809-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-35040 |
22R..RT135..USA 12V 55A,W/REGULATOR |
1 | ||
| 27020-28020 |
22R..RT135..USA 12V 55A,W/O REGULATOR |
1 | ||
| 27060-35020 |
22R..RT135 12V 60A,W/REGULATOR |
1 | ||
| 27020-38102 |
22R..RT135 12V 60A,W/O REGULATOR |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-15070 |
22R..RT135 12V 55A,60A |
1 | ||
| 27330-45090 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-28030 |
22R..RT135 12V 55A,60A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-28021 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-28022 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-38100 |
22R..RT135 12V 60A |
1 | ||
| 27362-38101 |
22R..RT135 12V 60A |
1 | ||
| 27362-28020 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-15070 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-43040 |
22R..RT135 12V 60A |
1 | ||
| 27362-38102 |
22R..RT135 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R..RT135 12V 55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R..RT135 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
22R..RT135 12V 60A |
1 | ||
| 27410-41080 |
20R..RT134;22R..RT135..USA 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44031 |
22R..RT135 12V 55A,60A |
1 | ||
| 27412-44030 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45110 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27441-70040 |
22R..RT135 12V 55A,60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38100 |
20R,22R..RT13# |
1 | ||
| 27700-43010 |
22R..RT135 |
1 | ||
| Common parts | ||||
| 27063-45020 | ||||
| 27064-45020 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-00916 | ||||
| 90099-00933 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90101-10083 | ||||
| 90119-10069 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 93229-14012 | ||||
| 93315-15012 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| 95411-01400 | ||||

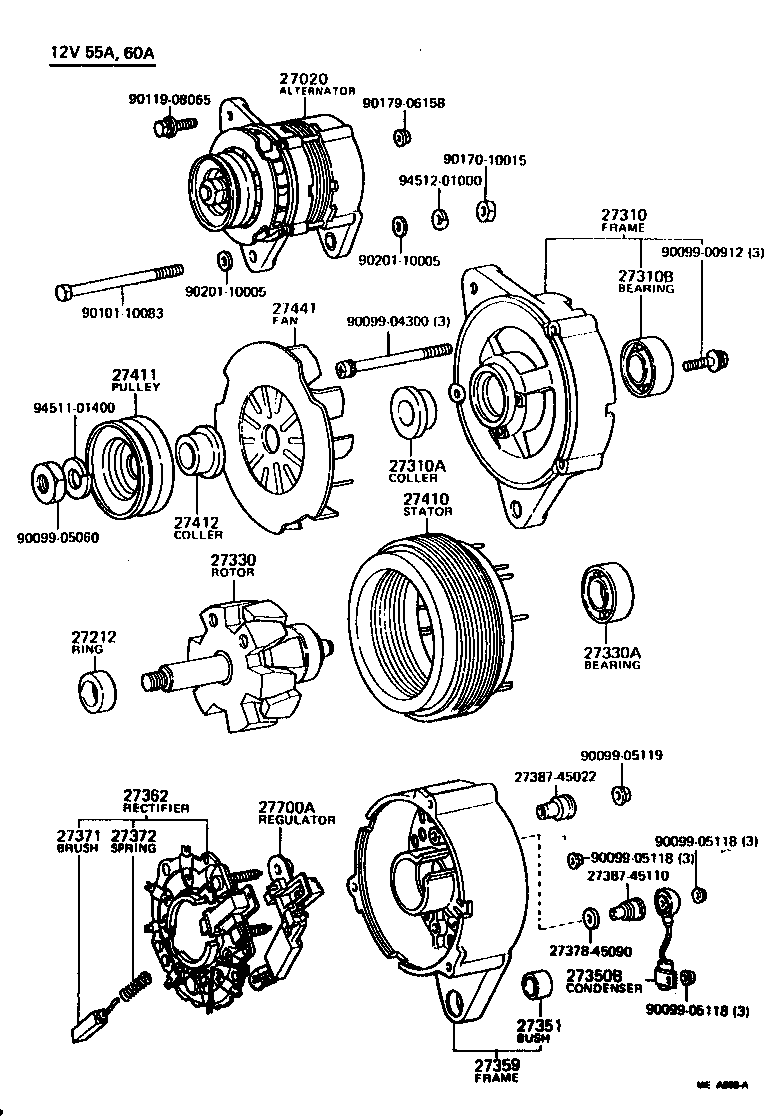

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-35040 |
22R..RT135..USA 12V 55A,W/REGULATOR |
1 | ||
| 27020-28020 |
22R..RT135..USA 12V 55A,W/O REGULATOR |
1 | ||
| 27060-35020 |
22R..RT135 12V 60A,W/REGULATOR |
1 | ||
| 27020-38102 |
22R..RT135 12V 60A,W/O REGULATOR |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-15070 |
22R..RT135 12V 55A,60A |
1 | ||
| 27330-45090 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-28030 |
22R..RT135 12V 55A,60A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-28021 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-28022 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-38100 |
22R..RT135 12V 60A |
1 | ||
| 27362-38101 |
22R..RT135 12V 60A |
1 | ||
| 27362-28020 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-15070 |
22R..RT135..USA 12V 55A |
1 | ||
| 27362-43040 |
22R..RT135 12V 60A |
1 | ||
| 27362-38102 |
22R..RT135 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R..RT135 12V 55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R..RT135 12V 55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
22R..RT135 12V 60A |
1 | ||
| 27410-41080 |
20R..RT134;22R..RT135..USA 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44031 |
22R..RT135 12V 55A,60A |
1 | ||
| 27412-44030 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45110 |
20R,22R..RT13# 12V 55A,60A |
1 | ||
| 27441-70040 |
22R..RT135 12V 55A,60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38100 |
20R,22R..RT13# |
1 | ||
| 27700-43010 |
22R..RT135 |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10083 | ||||
| 90119-08065 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
