RT134LG-TWNDSK (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

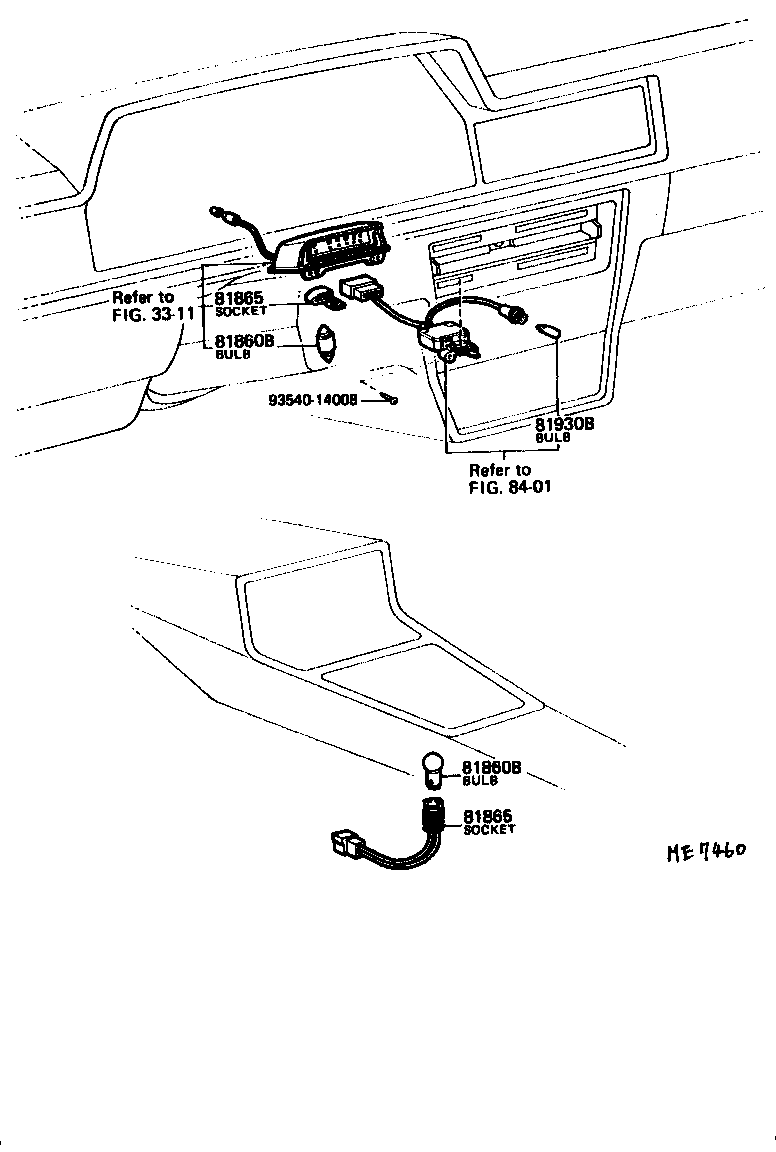

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81860B - BULB, TRANSMISSION INDICATOR LAMP | ||||
| 90981-11006 |
RT134..3HC 12V 3W,12V 3W |
1 | ||
| 81860B - BULB, TRANSMISSION INDICATOR LAMP | ||||
| 90981-11006 |
RT134..3HC 12V 3W,12V 3W |
1 | ||
| 81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP | ||||
| 35963-30030 |
RT134..3HC |
1 | ||
| 81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP | ||||
| 35963-30030 |
RT134..3HC |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 90981-11014 |
RT13# 14V 1.4W,12V 1.4W |
1 | ||
| Common parts | ||||
| 93540-14008 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8401 | ||||
