RT134LG-TWNDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )WG

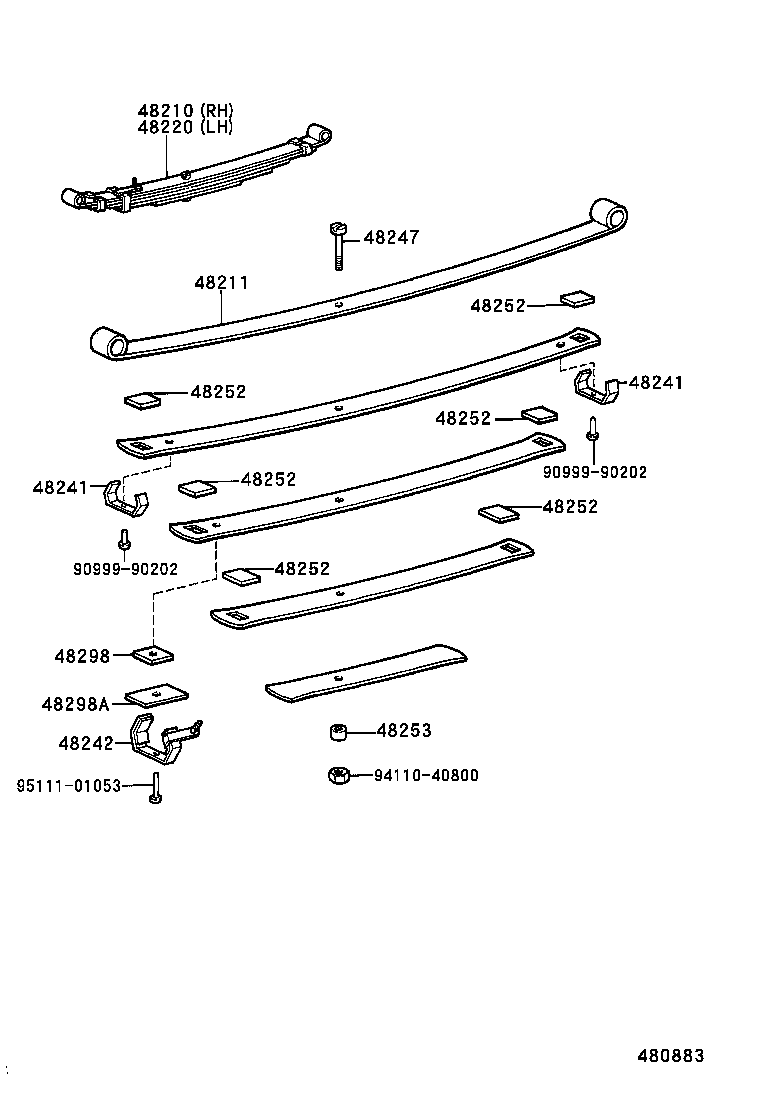

Click highlighted areas on diagram

diagram 48210 48211 48220 48241 48241 48242 48247 48252 48252 48252 48252 48252 48252 48253 48298 48298A 9099990202 9099990202 9411040800 9511101053
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-21170

RT13#..WG

 1
48211 - LEAF, REAR SPRING, NO.1
48201-21170

RT13#..WG

 2
48220 - SPRING ASSY, REAR LH
48210-21170

RT13#..WG

 1
48241 - CLIP, REAR SPRING, NO.1
48242-10060

RT13#..WG

 4
48241 - CLIP, REAR SPRING, NO.1
48242-10060

RT13#..WG

 4
48242 - CLIP, REAR SPRING, NO.2
48241-21170

RT13#..WG

 2
48247 - BOLT, REAR SPRING, CENTER
48247-13100

RT13#..WG

 2
48252 - SILENCER, REAR SPRING
48252-21150

RT13#..WG

 12
48252 - SILENCER, REAR SPRING
48252-21150

RT13#..WG

 12
48252 - SILENCER, REAR SPRING
48252-21150

RT13#..WG

 12
48252 - SILENCER, REAR SPRING
48252-21150

RT13#..WG

 12
48252 - SILENCER, REAR SPRING
48252-21150

RT13#..WG

 12
48252 - SILENCER, REAR SPRING
48252-21150

RT13#..WG

 12
48253 - SPACER, REAR SPRING, NO.1
48254-10050

RT13#..WG

 2
48298 - BALANCER, REAR SPRING, NO.1
48298-21170

RT13#..WG

 2
48298A - BALANCER, REAR SPRING, NO.2
48299-21170

RT13#..WG

 4
Common parts
90999-90202
94110-40800
95111-01053

(7809- )WG

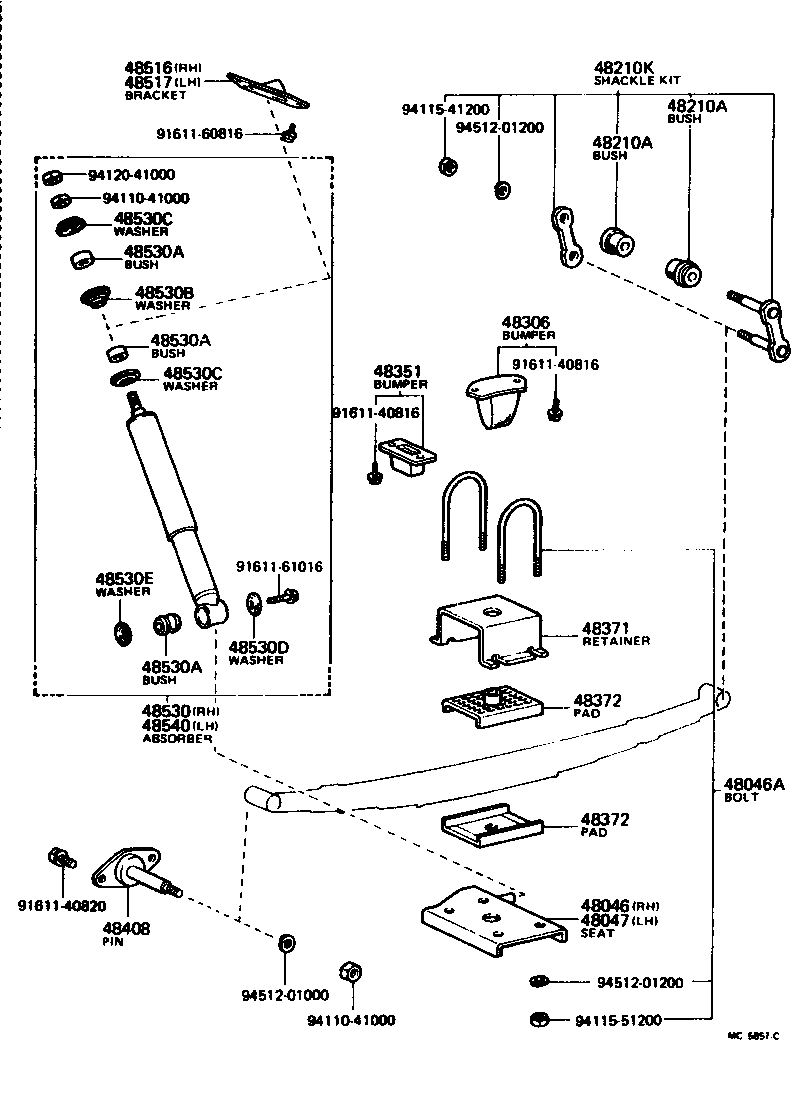

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210A 48210K 48306 48351 48371 48372 48372 48408 48516 48517 48530 48530A 48530A 48530A 48530B 48530C 48530C 48530D 48530E 48540 9161140816 9161140816 9161140820 9161160816 9161161016 9411041000 9411041000 9411541200 9411551200 9412041000 9451201000 9451201200 9451201200
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-21020

RT13#..WG

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-10124

RT13#..WG

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-21020

RT13#..WG

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15070

RT13#..WG

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15070

RT13#..WG

 4
48210K - SHACKLE KIT, REAR SPRING
04483-20020

RT13#..WG

 1
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-29015

RT13#..WG

 2
48351 - BUMPER, DIFFERENTIAL CARRIER
48351-29055

RT13#..WG

 1
48371 - RETAINER, REAR SPRING PAD
48371-20120

RT13#..WG

 2
48372 - PAD, REAR SPRING
48372-20030

RT13#..WG

 4
48372 - PAD, REAR SPRING
48372-20030

RT13#..WG

 4
48408 - PIN SUB-ASSY, SPRING BRACKET
48408-23010

RT13#..WG

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-21010

RT13#..WG

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517-21010

RT13#..WG

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-29615

RT134..WG

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

RT13#..WG

UPR

 4
90385-16060

RT134

LWR

 2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

RT13#..WG

UPR

 4
90385-16060

RT134

LWR

 2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

RT13#..WG

UPR

 4
90385-16060

RT134

LWR

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02050

RT134

 2
90948-02007

RT134

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

RT13#..WG

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

RT13#..WG

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03012

RT13#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

RT13#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29615

RT134..WG

 1
Common parts
91611-40816
91611-40820
91611-60816
91611-61016
94110-41000
94115-41200
94115-51200
94120-41000
94512-01000
94512-01200
