RT134LG-TWNDSK (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8108)ATM

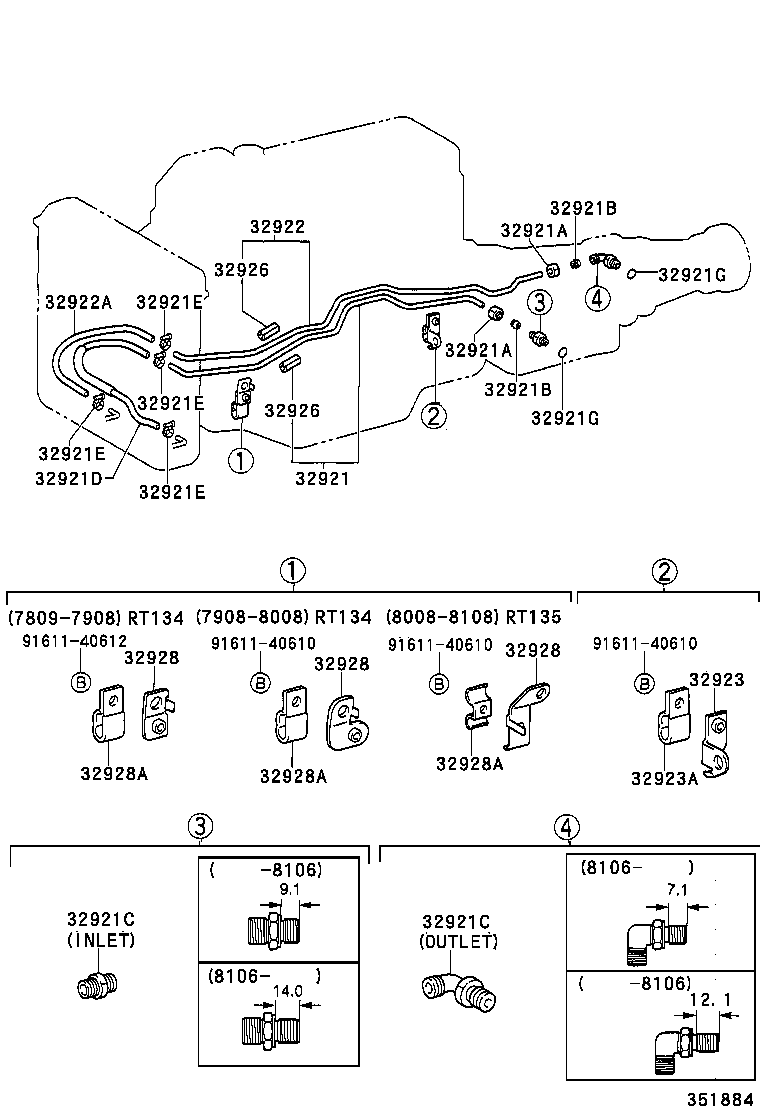

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-14060 |
RT134..ATM |
1 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-13041 |
RT13#..ATM |
2 | ||
| 32921A - NUT, UNION(FOR OIL COOLER TUBE) | ||||
| 90402-13041 |
RT13#..ATM |
2 | ||
| 32921B - OLIVE(FOR OIL COOLER TUBE) | ||||
| 96395-71400 |
RT13#..ATM |
2 | ||
| 32921B - OLIVE(FOR OIL COOLER TUBE) | ||||
| 96395-71400 |
RT13#..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13265 |
RT134..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13265 |
RT134..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-14030 |
RT13#..ATM |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
RT13#..ATM |
4 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
RT13#..ATM |
4 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
RT13#..ATM |
4 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
RT13#..ATM |
4 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
RT13#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
RT13#..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-14051 |
RT134..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-14259 |
RT134..ATM |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-20022 |
RT13#..ATM |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90461-08070 |
RT13#..ATM |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20060 |
RT134..ATM |
1 | ||
| 32928-22020 |
RT134..ATM |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20060 |
RT134..ATM |
1 | ||
| 32928-22020 |
RT134..ATM |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20060 |
RT134..ATM |
1 | ||
| 32928-22020 |
RT134..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90461-08070 |
RT134..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90461-08070 |
RT134..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90461-08070 |
RT134..ATM |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-40612 | ||||
