RT134LG-TWNDSA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)WG

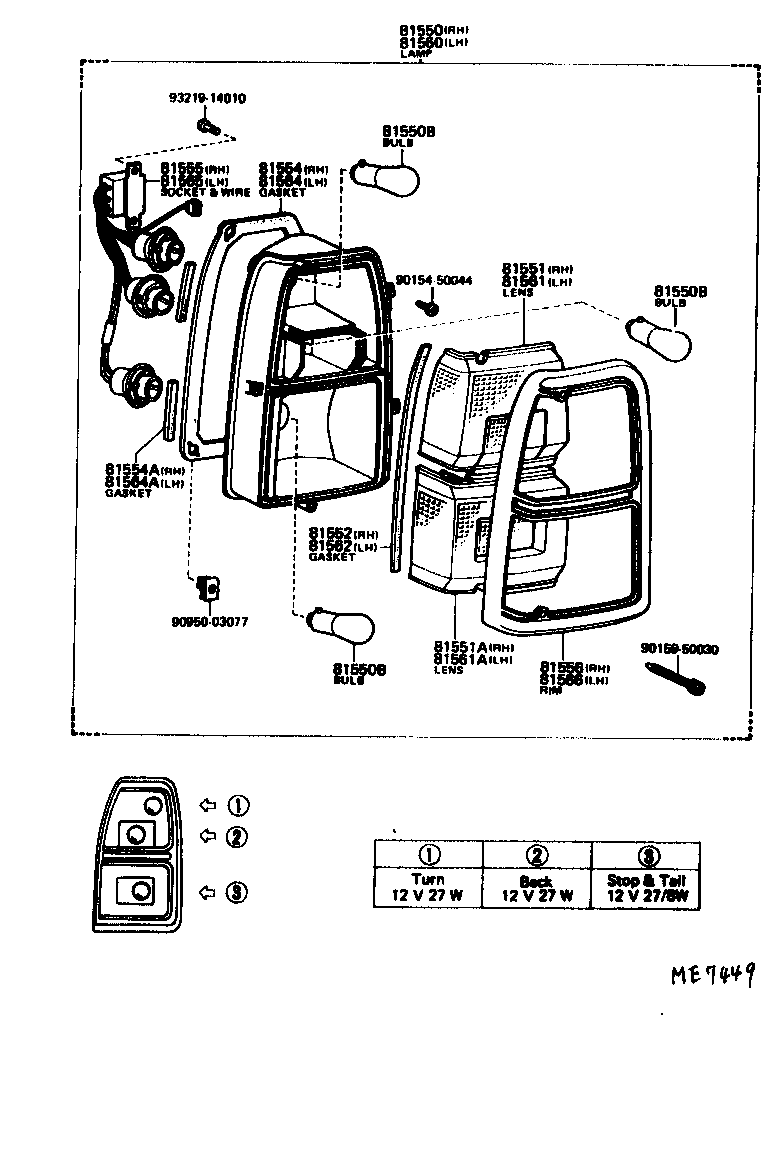

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-29885 |
RT134..WG |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
RT13# 12V 27/8W,12V 27/8W |
4 | ||
| 99132-11270 |
RT13# 12V 27W,12V 27W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
RT13# 12V 27/8W,12V 27/8W |
4 | ||
| 99132-11270 |
RT13# 12V 27W,12V 27W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21270 |
RT13# 12V 27/8W,12V 27/8W |
4 | ||
| 99132-11270 |
RT13# 12V 27W,12V 27W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-91255 |
RT134..WG AMBER-CLEAR |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81557-91255 |
RT134..WG RED |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81559-91255 |
RT134..WG L=270 |
2 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-91255 |
RT13#..WG |
1 | ||
| 81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH | ||||
| 81558-91255 |
RT134..WG L=52 |
2 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-91257 |
RT134..WG |
1 | ||
| 81556 - RIM, REAR COMBINATION LAMP, RH | ||||
| 81556-91255 |
RT134..WG |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-29965 |
RT134..WG |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-91255 |
RT134..WG AMBER-CLEAR |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81567-91255 |
RT134..WG RED |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81559-91255 |
RT134..WG L=270 |
2 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-91255 |
RT13#..WG |
1 | ||
| 81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH | ||||
| 81558-91255 |
RT134..WG L=52 |
2 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-91257 |
RT134..WG |
1 | ||
| 81566 - RIM, REAR COMBINATION LAMP, LH | ||||
| 81566-91255 |
RT134..WG |
1 | ||
| Common parts | ||||
| 90154-50044 | ||||
| 90159-50030 | ||||
| 90950-03077 | ||||
| 93219-14010 | ||||
