RT134LG-TWNDSA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)

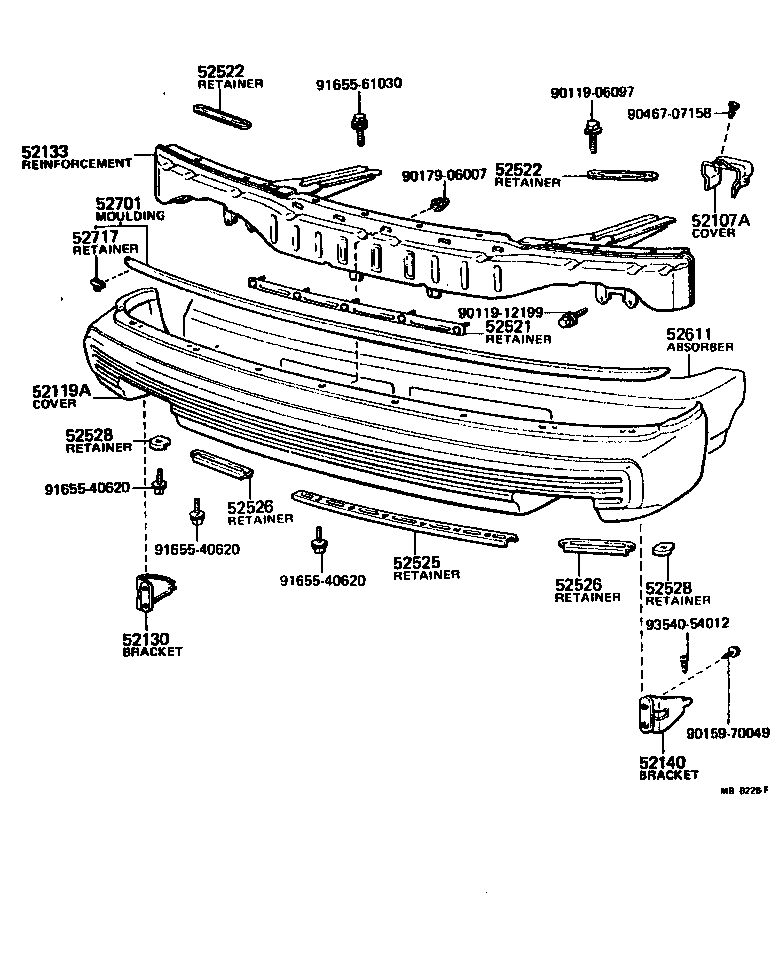

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-20030 |
RT134..LPB |
1 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-20020 |
RT134 |
1 | ||
| 52133 - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-20030 |
RT134 |
1 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-20020 |
RT134 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-14020 |
RT134 |
1 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-20010 |
RT134 |
2 | ||
| 52522 - RETAINER, FRONT BUMPER UPPER SIDE | ||||
| 52522-20010 |
RT134 |
2 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-20010 |
RT134 |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-20010 |
RT134 |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-20010 |
RT134 |
2 | ||
| 52528 - RETAINER, FRONT BUMPER, LOWER CORNER | ||||
| 52528-20010 |
RT13# |
2 | ||
| 52528 - RETAINER, FRONT BUMPER, LOWER CORNER | ||||
| 52528-20010 |
RT13# |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-20010 |
RT134 |
1 | ||
| 52701 - MOULDING SUB-ASSY, FRONT BUMPER | ||||
| 52701-20010 |
RT134 |
1 | ||
| 52717 - RETAINER, FRONT BUMPER MOULDING | ||||
| 52717-20010 |
RT134 |
8 | ||
| Common parts | ||||
| 90119-06097 | ||||
| 90119-12199 | ||||
| 90159-70049 | ||||
| 90179-06007 | ||||
| 90467-07158 | ||||
| 91655-40620 | ||||
| 91655-61030 | ||||
| 93540-54012 | ||||
