RT134LG-TWNDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

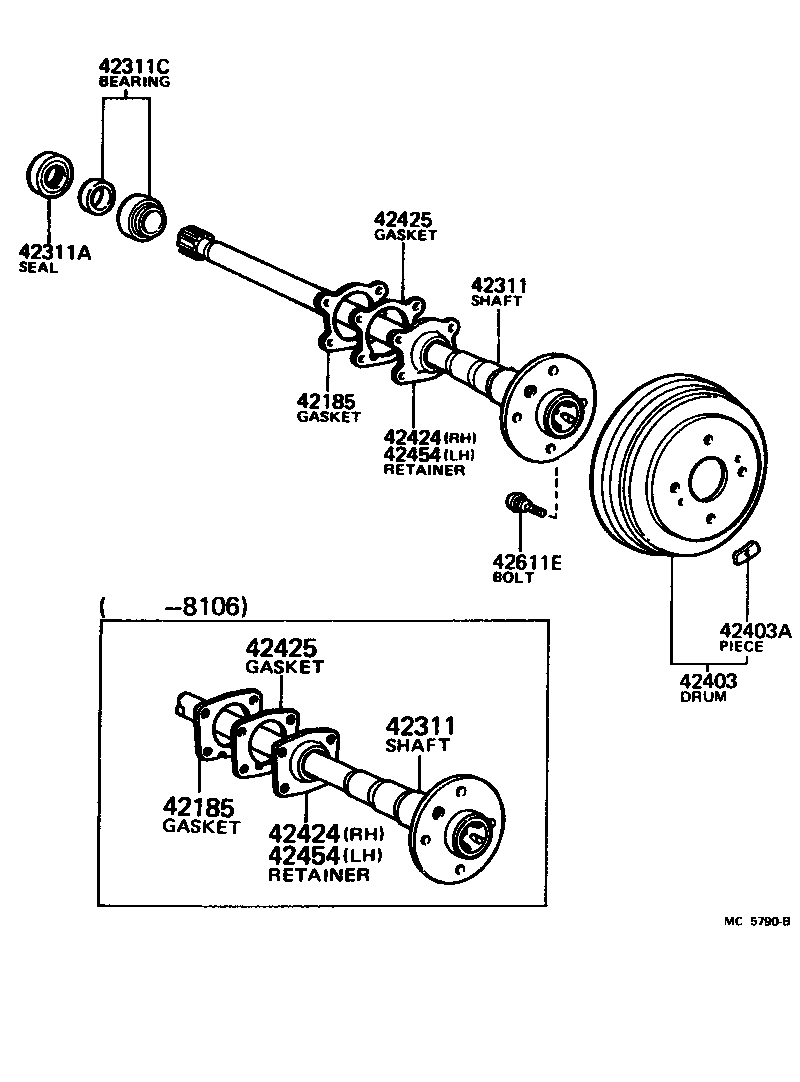

Click highlighted areas on diagram

diagram 42185 42185 42311 42311 42311A 42311C 42403 42403A 42424 42424 42425 42425 42454 42454 42611E
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42185-22020

RT13#

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-22020

RT13#

 2
42311 - SHAFT, REAR AXLE
42311-14080

RT13#

 2
42311 - SHAFT, REAR AXLE
42311-14080

RT13#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

RT13#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
04421-30011

RT13#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-12060

RT13#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01119

RT13#

30G,30G

 1
90937-01117

RT13#

10G,10G

 1
90937-01118

RT13#

20G,20G

 1
90937-01195

RT13#

40G,40G

 1
90937-01197

RT13#

60G,60G

 1
90937-01196

RT13#

50G,50G

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-21010

RT13#

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-21010

RT13#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-22020

RT13#

 2
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-22020

RT13#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-21010

RT13#

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-21010

RT13#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02035

RT13#

*12-1.5PX36-23.5

 8
