RT134LG-TWMESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

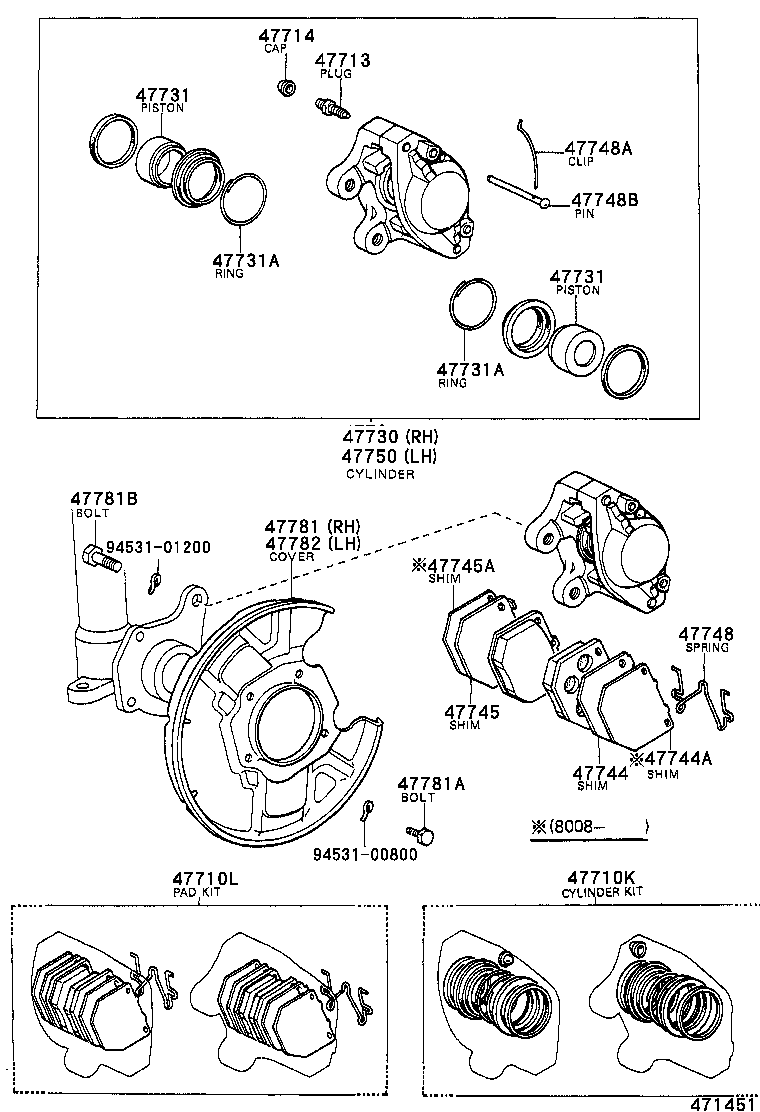

Click highlighted areas on diagram

diagram 47710K 47710L 47713 47714 47730 47731 47731 47731A 47731A 47744 47744A 47745 47745A 47748 47748A 47748B 47750 47781 47781A 47781B 47782 9453100800 9453101200
Part # Description Qty Price
47710K - CYLINDER KIT, DISC BRAKE, FRONT
04479-30021

RT13#

 1
47710L - PAD KIT, DISC BRAKE, FRONT
04491-22071

RT134

 1
04491-22070

RT134

 1
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

RT13#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

RT13#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-20060

RT13#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-20040

RT13#

 4
47731 - PISTON, FRONT DISC BRAKE
47731-20040

RT13#

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-58026

RT13#

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-58026

RT13#

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-30012

RT13#

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-30012

RT13#

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-30013

RT13#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12002

RT13#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06098

RT13#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-20050

RT13#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-20080

RT13#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-08341

RT13#

 8
47781B - BOLT(FOR DUST COVER SETTING)
90101-12379

RT13#

 4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-20080

RT13#

 1
Common parts
94531-00800
94531-01200

(7809- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-22170

RT134

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30100

RT134

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60060

RT134

 1
