RT134LG-TWMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

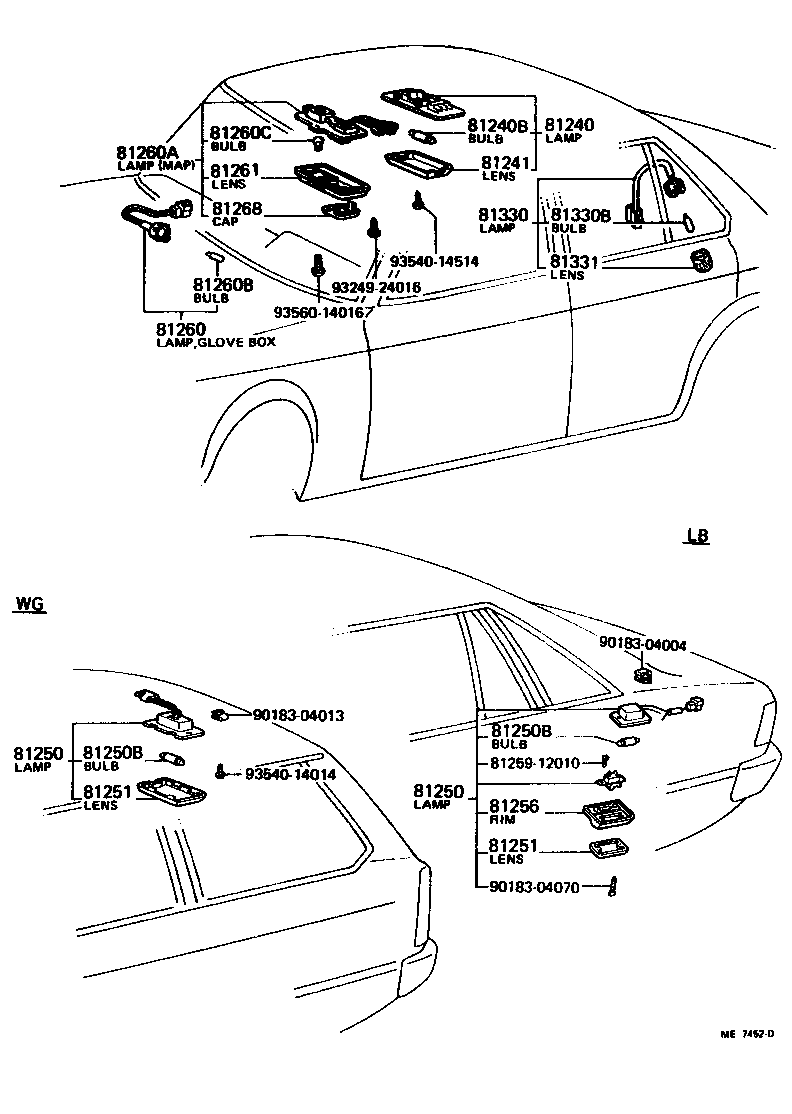

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250 81250B 81250B 81251 81251 81256 8125912010 81260 81260A 81260B 81260C 81261 81268 81330 81330B 81331 9018304004 9018304013 9018304070 9324924016 9354014014 9354014514 9356014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1601005

RT134

BEIGE,BEIGE

 1
81240-1601008

RT13#

IVORY,IVORY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

RT13#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

RT13#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-23010

RT13#..WG

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-23010

RT13#..WG

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11004

RT13#..WG

12V 10W,12V 10W

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11004

RT13#..WG

12V 10W,12V 10W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-23010

RT13#..WG

 1
81251 - LENS, ROOM LAMP, NO.2
81251-23010

RT13#..WG

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22030

RT13#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

RT13#

12V 1.2W W/O SOCKET,12V 1.4W

 1
Common parts
81259-12010
90183-04004
90183-04013
90183-04070
93249-24016
93540-14014
93540-14514
93560-14016
