RT134LG-TWMDSK (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

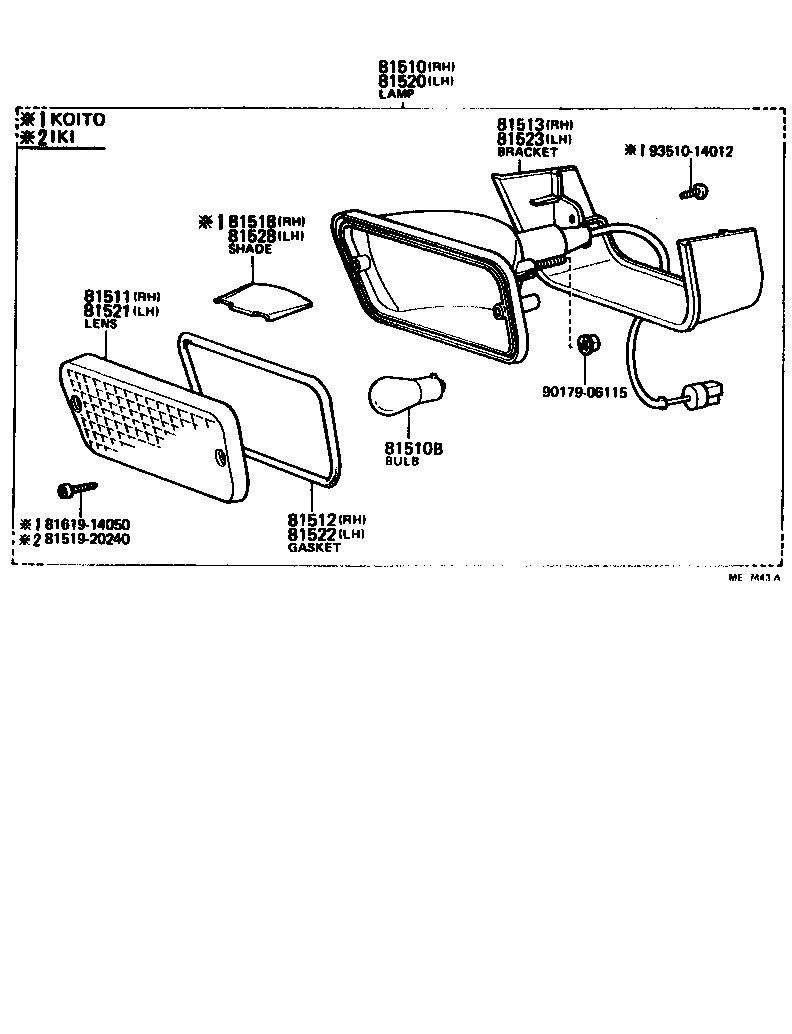

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-19545 |
RT134 KOITO |
1 | ||
| 81510-29485 |
RT134 IKI |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
RT13# 12V 27W,12V 27W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-20240 |
RT13# IKI |
1 | ||
| 81511-14170 |
RT134 KOITO |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-20240 |
RT13# IKI |
1 | ||
| 81512-14150 |
RT134 KOITO |
1 | ||
| 81513 - BRACKET, FRONT TURN SIGNAL LAMP, RH | ||||
| 81516-14170 |
RT134 KOITO |
1 | ||
| 81518 - SHADE, FRONT TURN SIGNAL LAMP, RH | ||||
| 81517-14170 |
RT134 KOITO |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-29485 |
RT134 IKI |
1 | ||
| 81520-19545 |
RT134 KOITO |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-20230 |
RT13# IKI |
1 | ||
| 81521-14170 |
RT134 KOITO |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-20240 |
RT13# IKI |
1 | ||
| 81512-14150 |
RT134 KOITO |
1 | ||
| 81523 - BRACKET, FRONT TURN SIGNAL LAMP, LH | ||||
| 81526-14170 |
RT134 KOITO |
1 | ||
| 81528 - SHADE, FRONT TURN SIGNAL LAMP, LH | ||||
| 81517-14170 |
RT134 KOITO |
1 | ||
| Common parts | ||||
| 81519-20240 | ||||
| 81619-14050 | ||||
| 90179-06115 | ||||
| 93510-14012 | ||||
