RT134LG-TWMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)WG

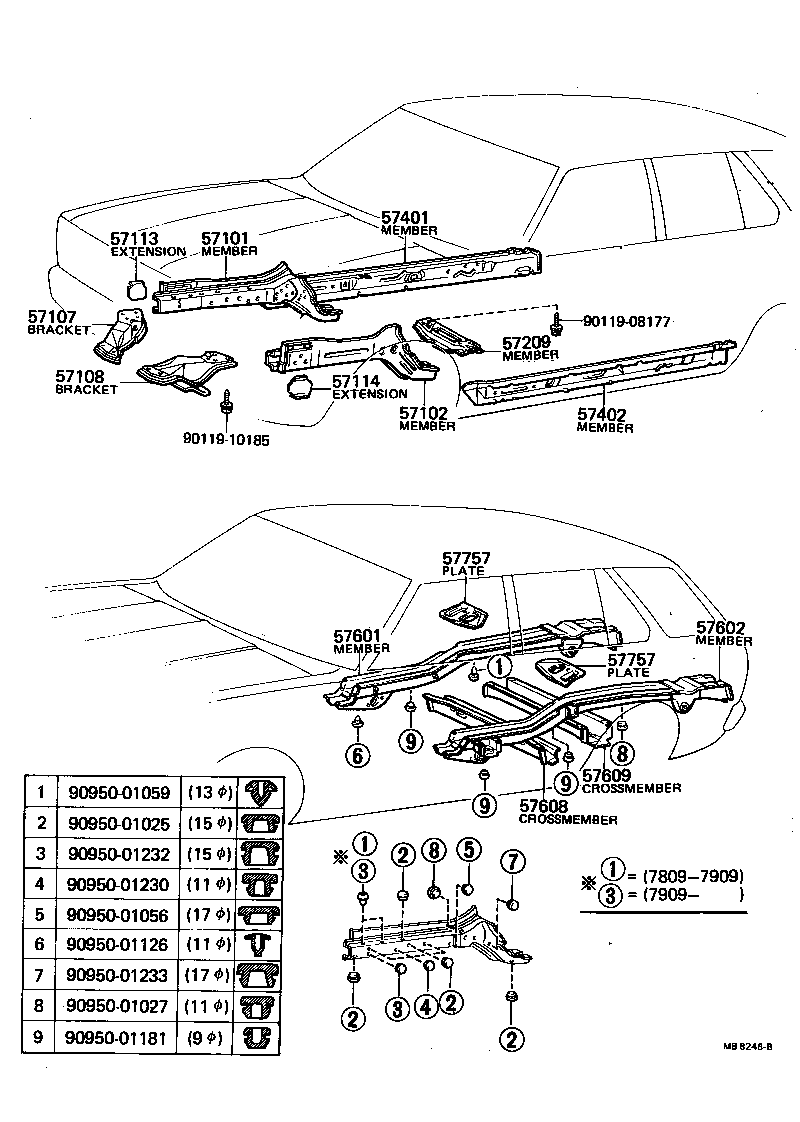

Click highlighted areas on diagram

diagram 57101 57102 57107 57108 57113 57114 57209 57401 57402 57601 57602 57608 57609 57757 57757 9011908177 9011910185 9095001025 9095001027 9095001056 9095001059 9095001126 9095001181 9095001230 9095001232 9095001233
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20240

RT13#..LPB

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20230

RT13#..LPB

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14012

RT13#..DLX

 1
57107-14040

RT13#

W/POWER STEERING

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14040

RT13#

W/POWER STEERING

 1
57108-14012

RT13#..DLX

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14050

RT13#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57113-14050

RT13#

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14061

RT134..CND

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20150

RT13#..LPB

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20150

RT13#..LPB

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-91256

RT134..WG

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-91256

RT134..WG

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-91255

RT134..WG

 1
57609 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3
57607-91255

RT13#..WG

 1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57758-91259

RT13#..WG

LH

 1
57757-91255

RT13#..WG

RH

 1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57758-91259

RT13#..WG

LH

 1
57757-91255

RT13#..WG

RH

 1
Common parts
90119-08177
90119-10185
90950-01025
90950-01027
90950-01056
90950-01059
90950-01126
90950-01181
90950-01230
90950-01232
90950-01233
