RT134LG-TWMDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

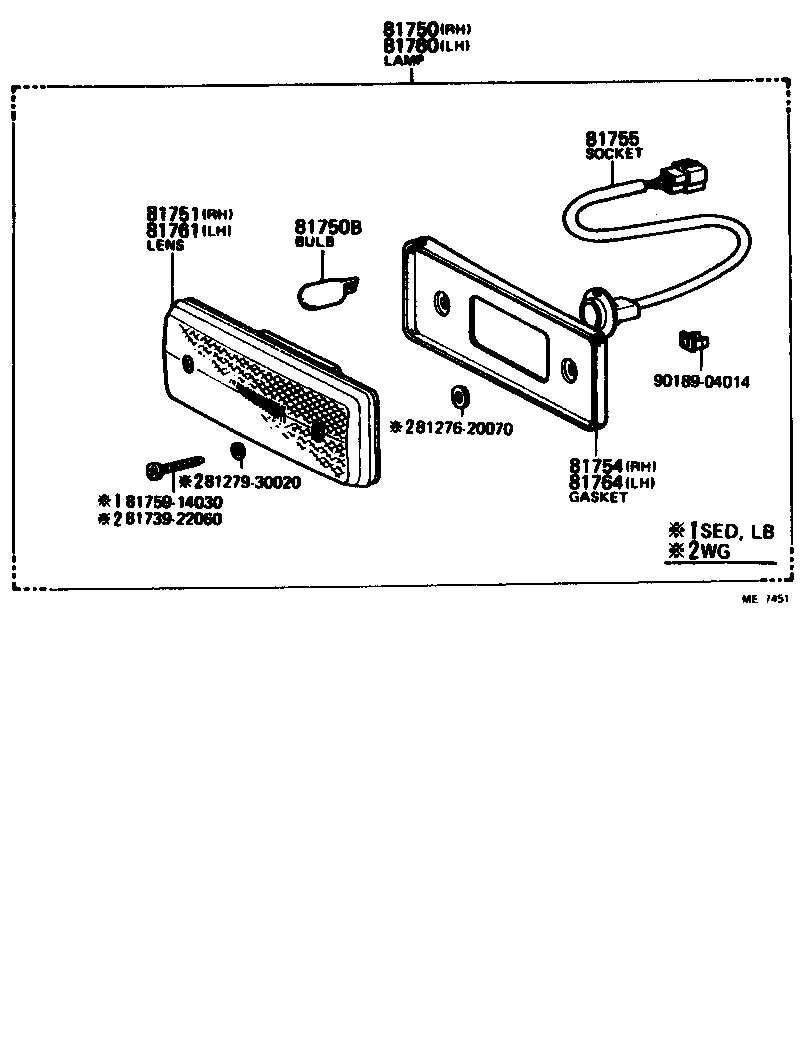

Click highlighted areas on diagram

diagram 8127620070 8127930020 8173922060 81750 81750B 81751 81754 81755 8175914030 81760 81761 81764 9018904014
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-29145

RT13#..WG

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

RT13#

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-14030

RT13#

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81754-91255

RT13#..WG

 1
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
81755-20060

RT13#

 2
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81750-29145

RT13#..WG

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81751-14030

RT13#

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81754-91255

RT13#..WG

 1
Common parts
81276-20070
81279-30020
81739-22060
81759-14030
90189-04014
