RT134LG-TWKDSA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1979
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

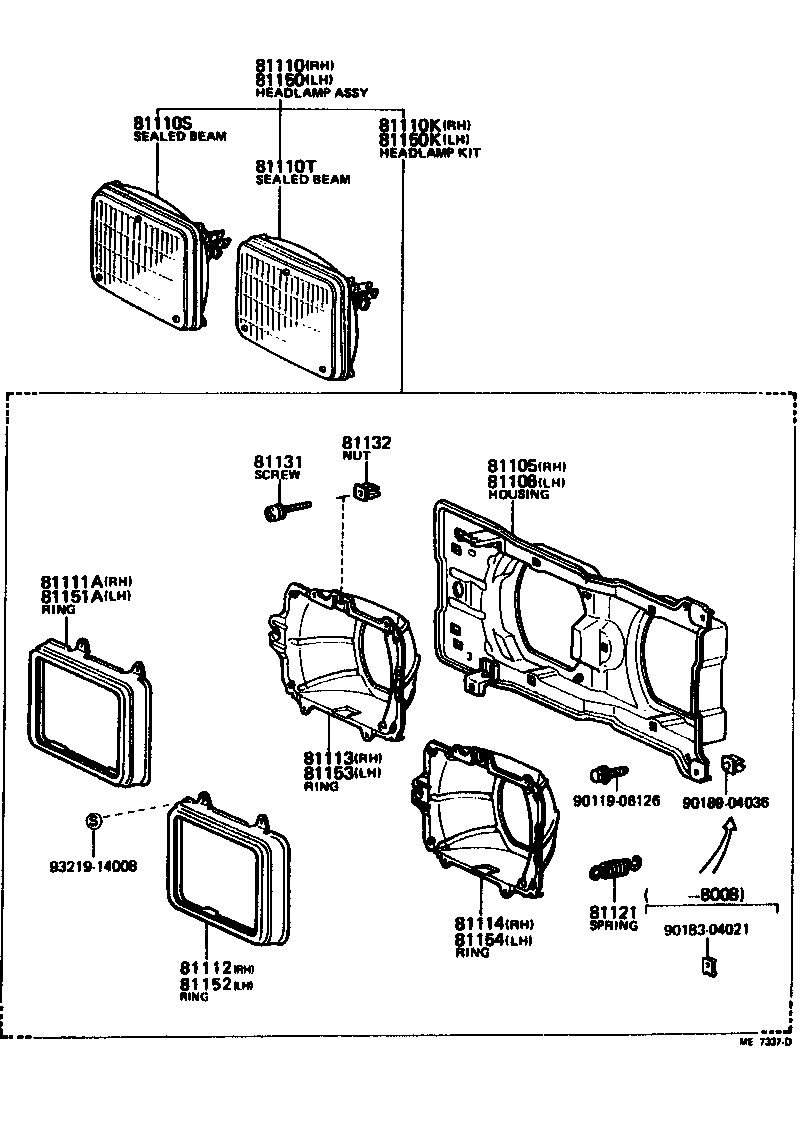

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-20360 |
RT134 KOITO |
1 | ||
| 81105-20380 |
RT134 IKI |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-20340 |
RT134 IKI |
1 | ||
| 81106-20360 |
RT134 KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-29725 |
RT134..LPB IKI |
1 | ||
| 81110-29705 |
RT134..LPB KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-05001 |
RT134..LPB 12V 50W,IKI |
2 | ||
| 90981-05002 |
RT134..LPB 12V 50W,*WB,12V 50W,KOITO |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-05006 |
RT134..LPB 12V 40/60W,KOITO |
2 | ||
| 90981-05005 |
RT134..LPB 12V 40/60W,WHITE,12V 40/60W,IKI |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-20360 |
RT13# KOITO |
1 | ||
| 81111-20380 |
RT13# IKI |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-20360 |
RT13# KOITO |
1 | ||
| 81111-20380 |
RT13# IKI |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-20360 |
RT13# KOITO |
1 | ||
| 81113-20380 |
RT13# IKI |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-20360 |
RT134 KOITO |
1 | ||
| 81114-20380 |
RT134 IKI |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-20380 |
RT13# IKI |
4 | ||
| 81121-14320 |
RT13# KOITO |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-16010 |
RT13# IKI |
8 | ||
| 81131-20360 |
RT13# KOITO |
8 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81132-20380 |
RT13# IKI |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-29705 |
RT134..LPB KOITO |
1 | ||
| 81150-29725 |
RT134..LPB IKI |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20360 |
RT13# KOITO |
1 | ||
| 81111-20380 |
RT13# IKI |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-20360 |
RT13# KOITO |
1 | ||
| 81111-20380 |
RT13# IKI |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-20320 |
RT13# KOITO |
1 | ||
| 81153-20340 |
RT13# IKI |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-20320 |
RT134 KOITO |
1 | ||
| 81154-20340 |
RT134 IKI |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90183-04021 | ||||
| 90189-04036 | ||||
| 93219-14008 | ||||
