RT134LG-TWKDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-7908)

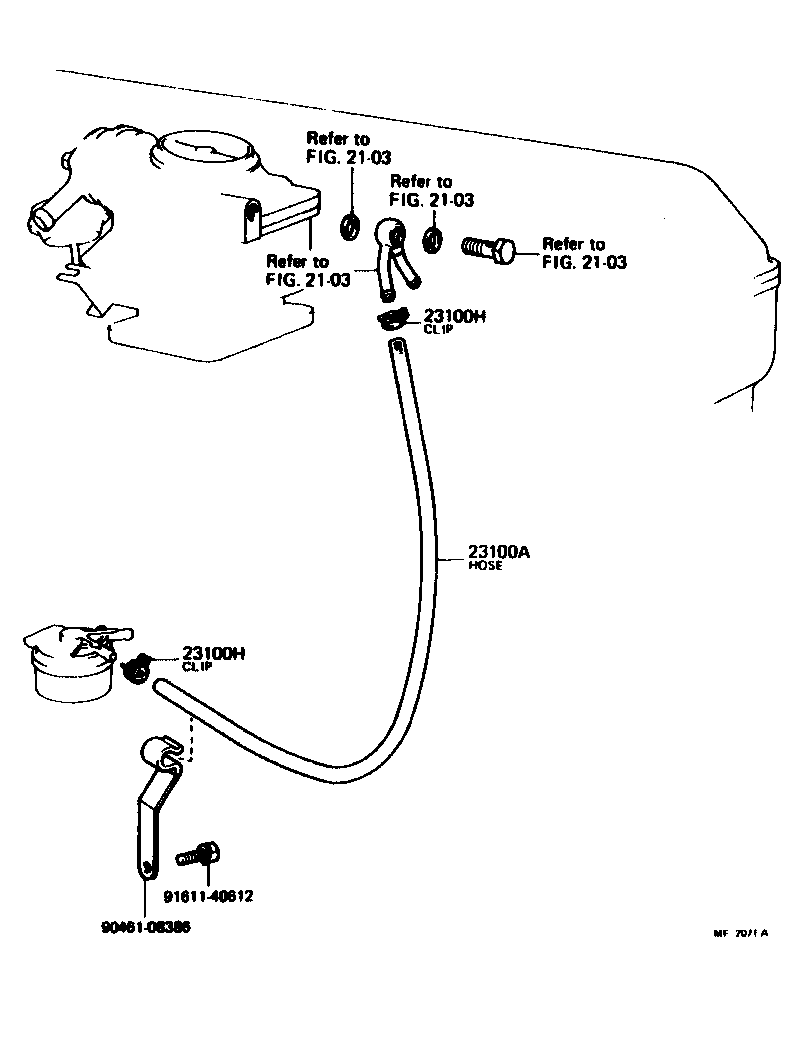

Click highlighted areas on diagram

diagram 2103 2103 2103 2103 23100A 23100H 23100H 9046108386 9161140612
Part # Description Qty Price
23100A - HOSE, FUEL
95332-06044

20R..RT134

L=440

 1
95332-06060

20R..RT134

*H,L=440

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R,22R..RT13#

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R,22R..RT13#

 6
Common parts
90461-08386
91611-40612
Linked diagrams
2103
