RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

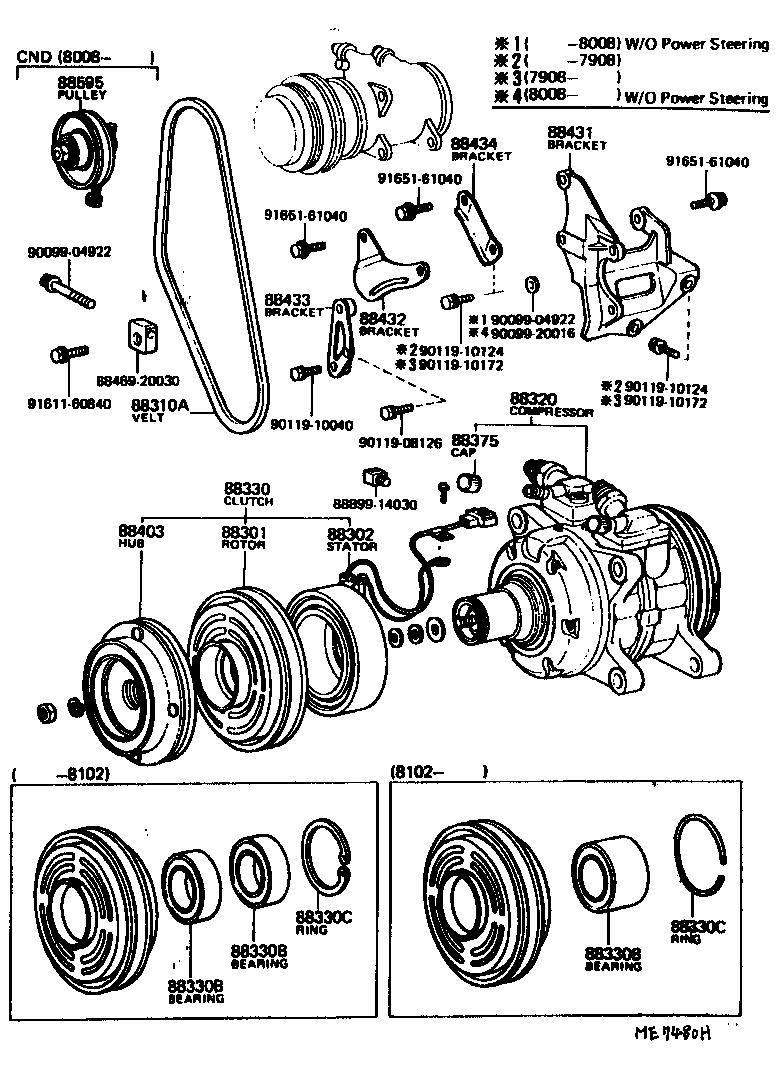

(7809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20060 |
RT13# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22040 |
RT13# |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-01140 |
RT134 L=1140 |
1 | ||
| 99332-11110 |
RT134 L=1140 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14250 |
RT134 |
1 | ||
| 88320-20240 |
RT134 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-20130 |
RT13# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
RT13# |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
RT13# |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10117 |
RT13# |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
RT13# |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
RT13# |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RT134 |
2 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-22030 |
RT13# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-14110 |
RT134..(3FC,3HC,5F)..USA |
1 | ||
| 88431-20130 |
RT134 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-20080 |
RT134 |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 11324-38011 |
RT13# |
1 | ||
| 88434 - BRACKET, COMPRESSOR MOUNTING, NO.4 | ||||
| 88434-20140 |
RT134 |
1 | ||
| Common parts | ||||
| 88469-20030 | ||||
| 88899-14030 | ||||
| 90099-04922 | ||||
| 90099-20016 | ||||
| 90119-08126 | ||||
| 90119-10040 | ||||
| 90119-10124 | ||||
| 90119-10172 | ||||
| 91611-60840 | ||||
| 91651-61040 | ||||

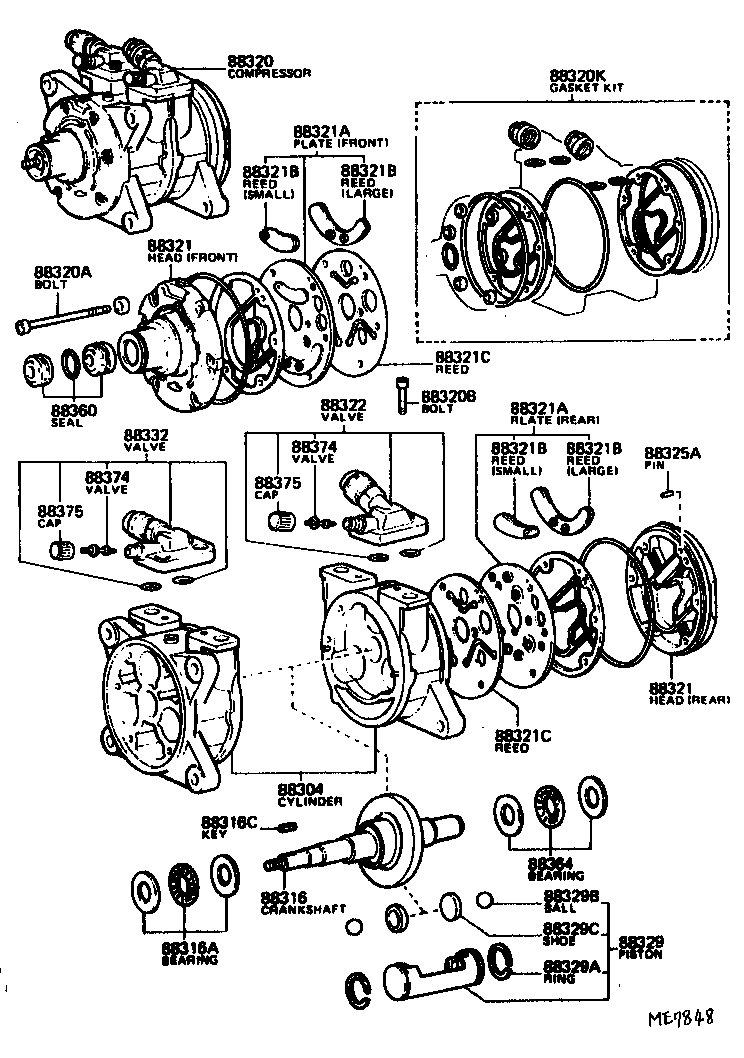

(7809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-22050 |
RT134 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20070 |
RT13# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
RT13# |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
RT13# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14250 |
RT134 |
1 | ||
| 88320-20240 |
RT134 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
RT13# |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
RT13# |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20040 |
RT134 |
1 | ||
| 04881-14020 |
RT134 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
RT13# RR |
1 | ||
| 88321-20060 |
RT134 FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
RT13# RR |
1 | ||
| 88321-20060 |
RT134 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20070 |
RT13# FR |
1 | ||
| 88305-20040 |
RT134 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20070 |
RT13# FR |
1 | ||
| 88305-20040 |
RT134 RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
RT13# LARGE |
2 | ||
| 88307-20050 |
RT13# SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
RT13# LARGE |
2 | ||
| 88307-20050 |
RT13# SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
RT13# LARGE |
2 | ||
| 88307-20050 |
RT13# SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20060 |
RT13# LARGE |
2 | ||
| 88307-20050 |
RT13# SMALL |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
RT13# |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
RT13# |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30100 |
RT134 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RT13# |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
RT13# |
3 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 88317-20030 |
RT13# |
6 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
RT13# |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
RT13# |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-20100 |
RT134 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
RT13# |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
RT13# |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RT13# |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RT13# |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RT134 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RT134 |
2 | ||

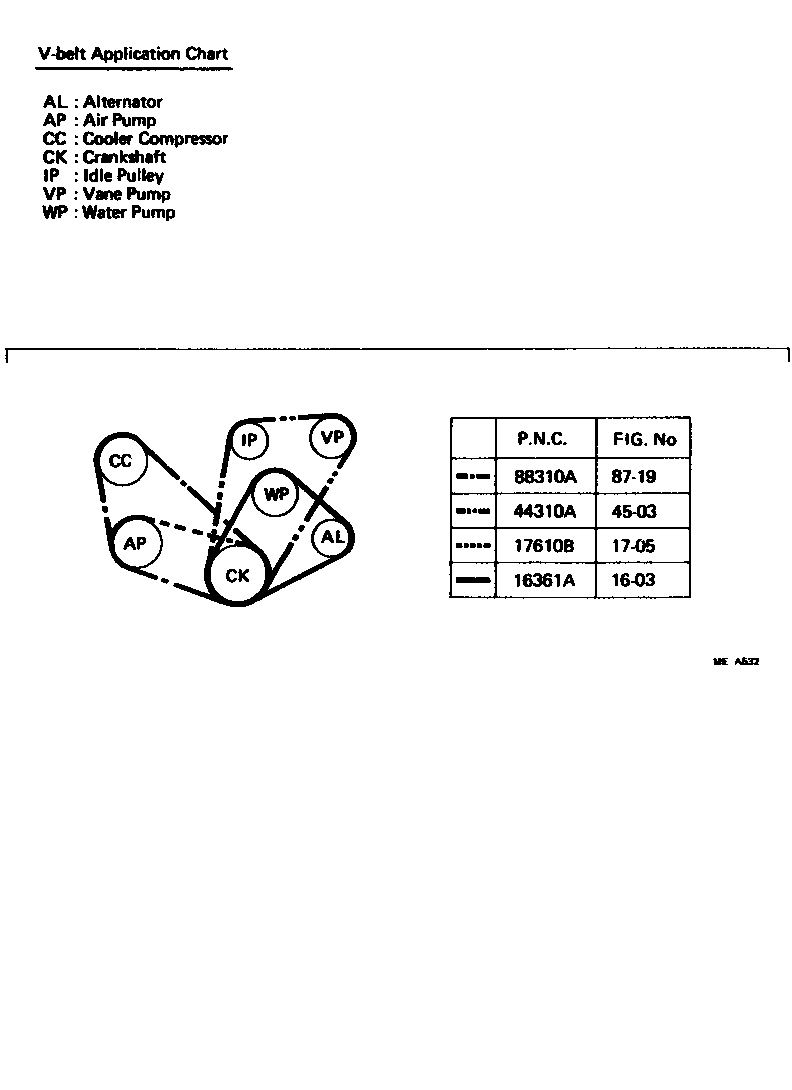

(7809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RT134 L=880 |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99332-00865 |
20R..RT134 L=865 |
1 | ||
| 99332-10830 |
20R..RT134 L=830 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-51135 |
RT134 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-01140 |
RT134 L=1140 |
1 | ||
| 99332-11110 |
RT134 L=1140 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
