RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

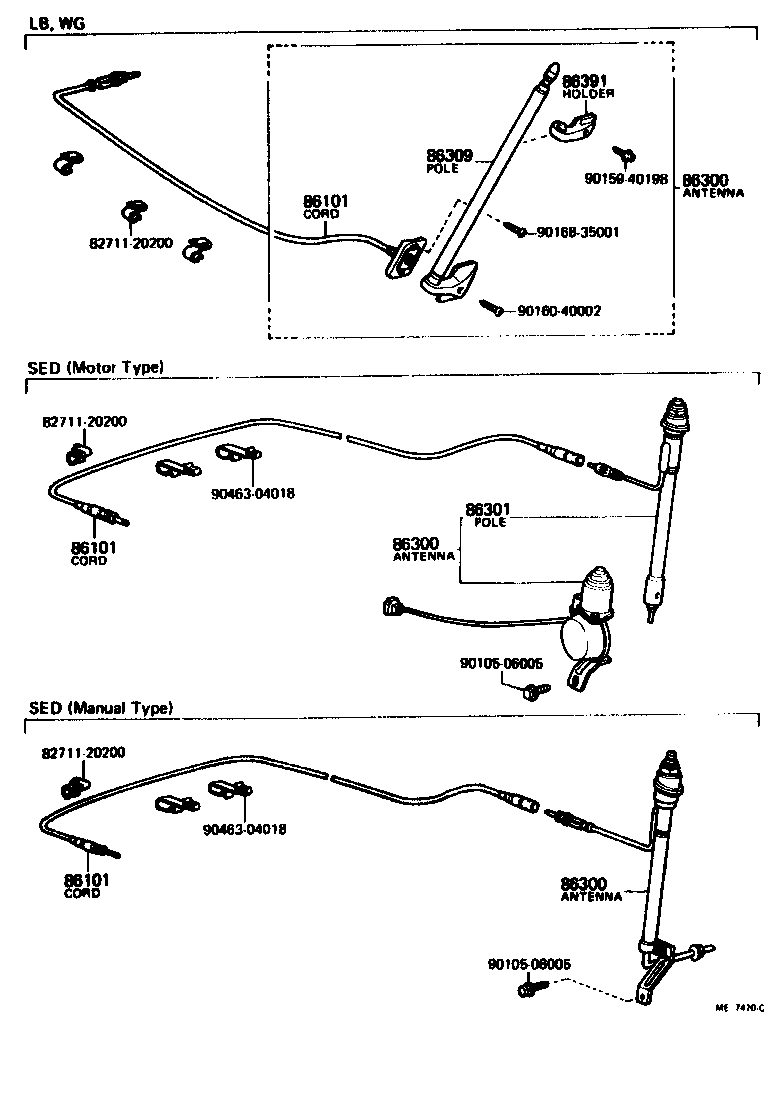

Click highlighted areas on diagram

diagram 8271120200 8271120200 8271120200 86101 86101 86101 86300 86300 86300 86301 86309 86391 9010506005 9010506005 9015940198 9016040002 9016835001 9046304018 9046304018
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20060

RT134..LB,WG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20060

RT134..LB,WG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20060

RT134..LB,WG

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-20130

RT134..LB,WG

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-20130

RT134..LB,WG

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-20130

RT134..LB,WG

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-20040

RT134..LB,WG

 1
86391 - HOLDER, ANTENNA
86391-20070

RT134..LB,WG

 1
Common parts
82711-20200
90105-06005
90159-40198
90160-40002
90168-35001
90463-04018
