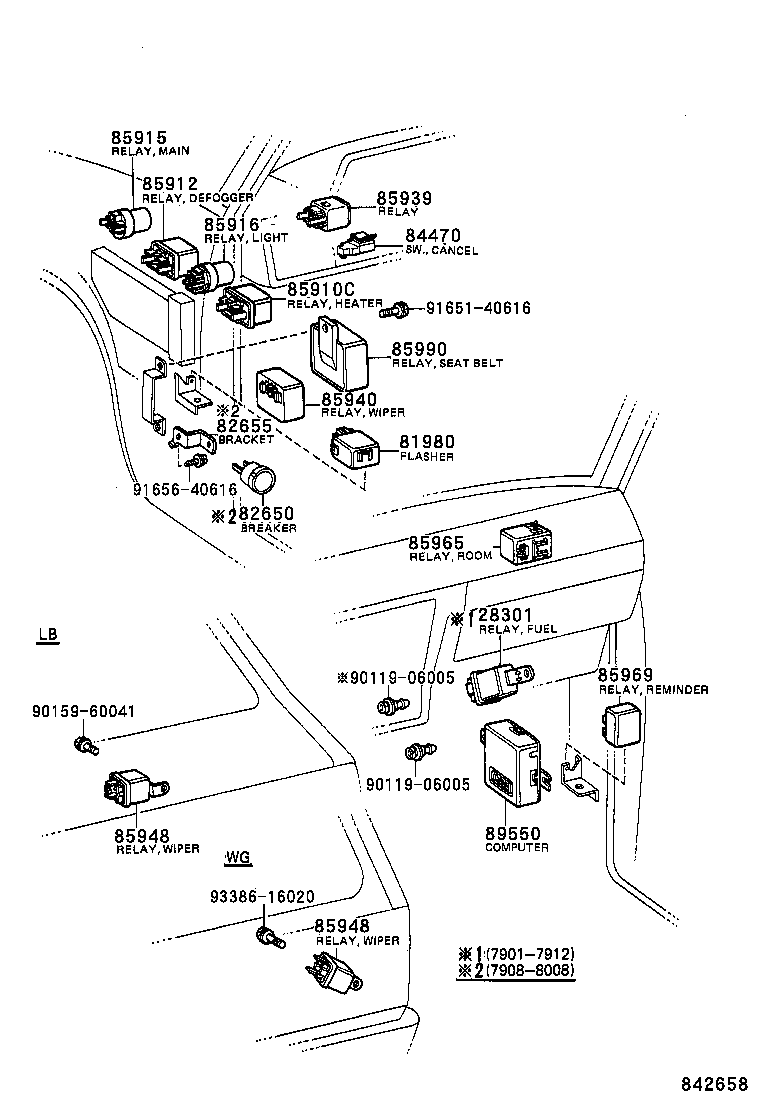

RT134LG-TWHESA (1978)
Toyota Corona
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28301 - RELAY ASSY, FUEL PUMP | ||||
| 28380-20010 |
20R..RT134 |
1 | ||
| 28380-38010 |
20R..RT134 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
RT13# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
RT134 |
1 | ||
| 82655 - BRACKET, CURCUIT BREAKER | ||||
| 82655-16010 |
RT134 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-22010 |
RT134..LPB |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
RT13# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
RT134 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RT134 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
RT134 W/*IW |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 85940-20060 |
RT13#..LB,WG |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 85940-20060 |
RT13#..LB,WG |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-20010 |
RT13#..LE |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-22010 |
RT134..LE |
1 | ||
| 85969-22011 |
RT134..LE |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-20010 |
RT134 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-14310 |
RT134..USA CALIFORNIA SPEC |
1 | ||
| 89550-20230 |
RT134..USA |
1 | ||
| 89550-14320 |
RT134..USA FEDERAL SPEC |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90159-60041 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93386-16020 | ||||

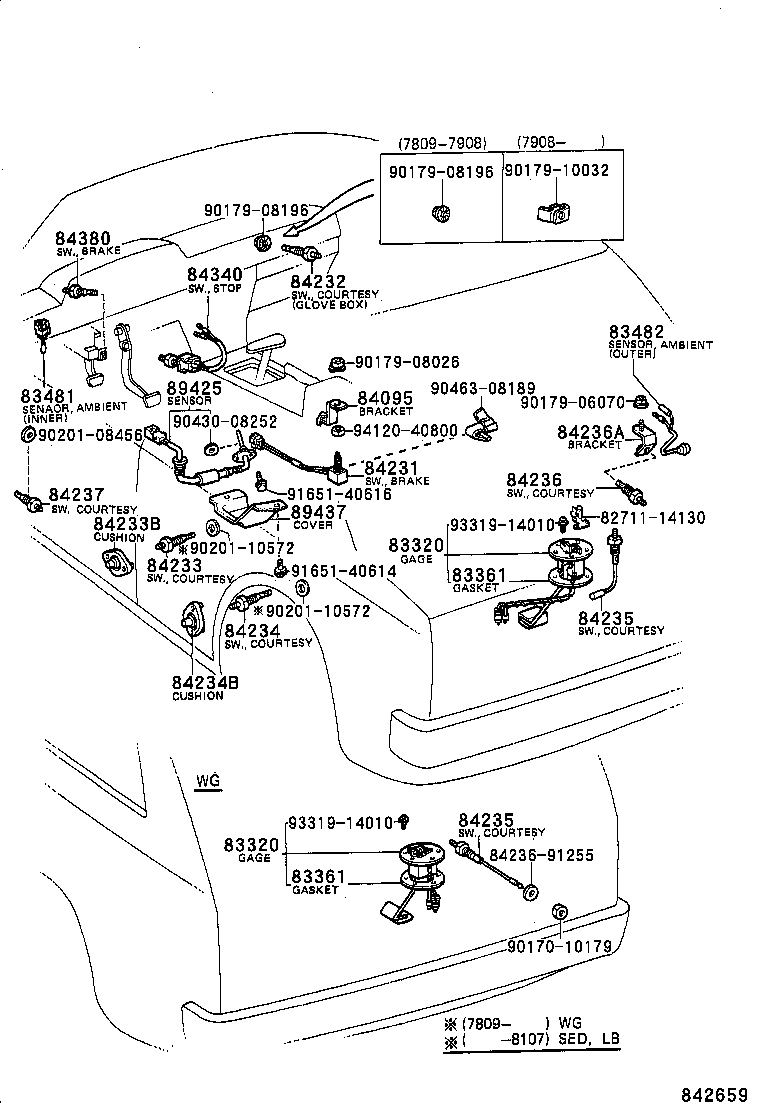

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29295 |
RT13#..WG |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29295 |
RT13#..WG |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT134 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT134 |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-20030 |
RT134..(3FC,4F,5F)..LPB |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-22010 |
RT134 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20050 |
RT134..WG |
2 | ||
| 84231-20010 |
RT134 |
2 | ||
| 84230-20110 |
RT134 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20010 |
RT134 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20010 |
RT134 |
2 | ||
| 84230-91256 |
RT134..WG |
2 | ||
| 84230-91258 |
RT134..WG |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-20010 |
RT134 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-14040 |
RT134..WG |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-14040 |
RT134..WG |
1 | ||
| 84237 - SWITCH ASSY, COURTESY LAMP (FOR STEERING UN-LOCK WARNIN | ||||
| 84231-20010 |
RT134 |
1 | ||
| 84231-20040 |
RT134 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
RT13# MATSUSHITA |
1 | ||
| 84340-22071 |
RT13# TOKAIRIKA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
RT134..3FC..LPB |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19046 |
RT134..USA |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-14040 |
RT135;RT134..USA |
1 | ||
| Common parts | ||||
| 82711-14130 | ||||
| 84236-91255 | ||||
| 90170-10179 | ||||
| 90179-06070 | ||||
| 90179-08026 | ||||
| 90179-08196 | ||||
| 90179-10032 | ||||
| 90201-08456 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 90463-08189 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||

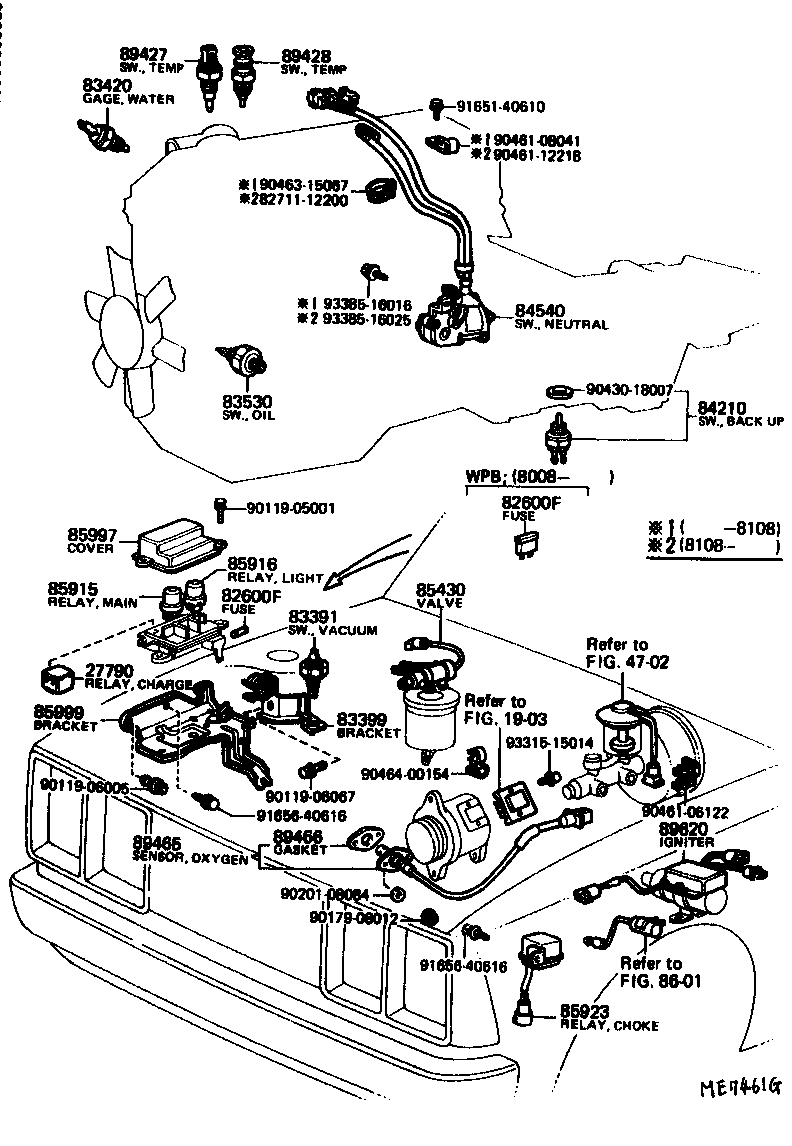

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-41010 |
20R..RT134..LPB |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62915 |
RT134..LPB 15A,15A |
5 | ||
| 99118-62005 |
RT134..LPB 5A |
5 | ||
| 99118-62920 |
RT134..LPB 20A,20A |
3 | ||
| 99118-62910 |
RT134..LPB 10A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62915 |
RT134..LPB 15A,15A |
5 | ||
| 99118-62005 |
RT134..LPB 5A |
5 | ||
| 99118-62920 |
RT134..LPB 20A,20A |
3 | ||
| 99118-62910 |
RT134..LPB 10A |
6 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14010 |
RT135;RT134..USA |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
RT134..USA |
1 | ||
| 83399-20080 |
RT134..USA |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT134 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
RT13# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12090 |
RT134..ATM |
1 | ||
| 84540-12120 |
RT134..ATM |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-14011 |
RT134..USA |
1 | ||
| 85430-14010 |
RT134..USA |
1 | ||
| 85430-14012 |
RT134..USA |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
RT134 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
RT134 |
2 | ||
| 85997 - COVER, RELAY BRACKET | ||||
| 85997-20010 |
RT134..LPB |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-20050 |
RT134 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35051 |
RT134..USA COLD SPEC |
1 | ||
| 89620-35041 |
RT134..USA |
1 | ||
| 89620-35042 |
RT134..USA CALIFORNIA SPEC |
1 | ||
| 89620-35052 |
RT134..USA FEDERAL SPEC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-05001 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-08012 | ||||
| 90201-08084 | ||||
| 90430-18007 | ||||
| 90461-06122 | ||||
| 90461-08041 | ||||
| 90461-12218 | ||||
| 90463-15067 | ||||
| 90464-00154 | ||||
| 91651-40610 | ||||
| 91656-40616 | ||||
| 93315-15014 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 4702 | ||||
| 8601 | ||||

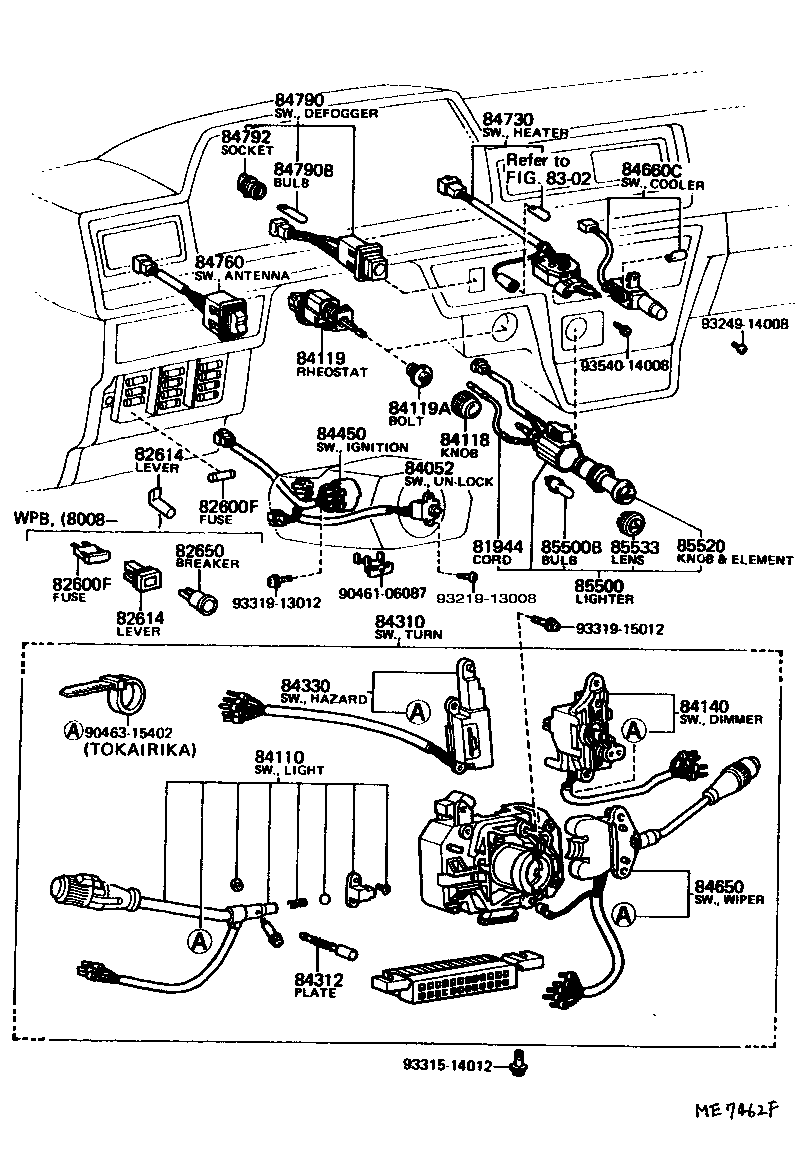

(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20030 |
RT13# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62915 |
RT134..LPB 15A,15A |
5 | ||
| 99118-62005 |
RT134..LPB 5A |
5 | ||
| 99118-62920 |
RT134..LPB 20A,20A |
3 | ||
| 99118-62910 |
RT134..LPB 10A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62915 |
RT134..LPB 15A,15A |
5 | ||
| 99118-62005 |
RT134..LPB 5A |
5 | ||
| 99118-62920 |
RT134..LPB 20A,20A |
3 | ||
| 99118-62910 |
RT134..LPB 10A |
6 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
RT134..LPB |
1 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
RT134..LPB |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
RT134 |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12021 |
RT134 |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29185 |
RT134..LE MATSUSHITA |
1 | ||
| 84112-29145 |
RT134..LE TOKAIRIKA |
1 | ||
| 84112-29186 |
RT134..LE..LPB MATSUSHITA |
1 | ||
| 84112-29146 |
RT134..LE..LPB TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20010 |
RT134 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20030 |
RT13# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01013 |
RT13# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20100 |
RT134..LE MATSUSHITA |
1 | ||
| 84140-29045 |
RT134..LE TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20341 |
RT134..LE..LPB TOKAIRIKA,W/*IW |
1 | ||
| 84310-20351 |
RT134..(LB,WG)..LE TOKAIRIKA,W/*IW & *RW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT13# MATSUSHITA |
1 | ||
| 84312-20011 |
RT13# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29045 |
RT134..LE TOKAIRIKA |
1 | ||
| 84332-20110 |
RT134..LE MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22070 |
RT13# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-20270 |
RT134..LE MATSUSHITA,W/*IW |
1 | ||
| 84652-29215 |
RT134..LE TOKAIRIKA,W/*IW |
1 | ||
| 84652-20280 |
RT134..(LB,WG)..LE MATSUSHITA,W/*IW & *RW |
1 | ||
| 84652-29225 |
RT134..(LB,WG)..LE TOKAIRIKA,W/*IW & *RW |
1 | ||
| 84652-20271 |
RT134..LE..LPB MATSUSHITA,W/*IW |
1 | ||
| 84652-29216 |
RT134..LE..LPB TOKAIRIKA,W/*IW |
1 | ||
| 84652-29226 |
RT134..(LB,WG)..LE TOKAIRIKA,W/*IW & *RW |
1 | ||
| 84652-20281 |
RT134..(LB,WG)..LE MATSUSHITA,W/*IW & *RW |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20020 |
RT13# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20060 |
RT134 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20040 |
RT134 |
1 | ||
| 84790-20041 |
RT134 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
RT134 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 84792 - SOCKET SUB-ASSY, REAR WINDOW DEFOGGER SWITCH | ||||
| 83101-22010 |
RT134 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20121 |
RT134 |
1 | ||
| 85500-20120 |
RT134 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RT134 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RT13# |
1 | ||
| Common parts | ||||
| 90461-06087 | ||||
| 90463-15402 | ||||
| 93219-13008 | ||||
| 93249-14008 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93540-14008 | ||||
| Linked diagrams | ||||
| 8302 | ||||
