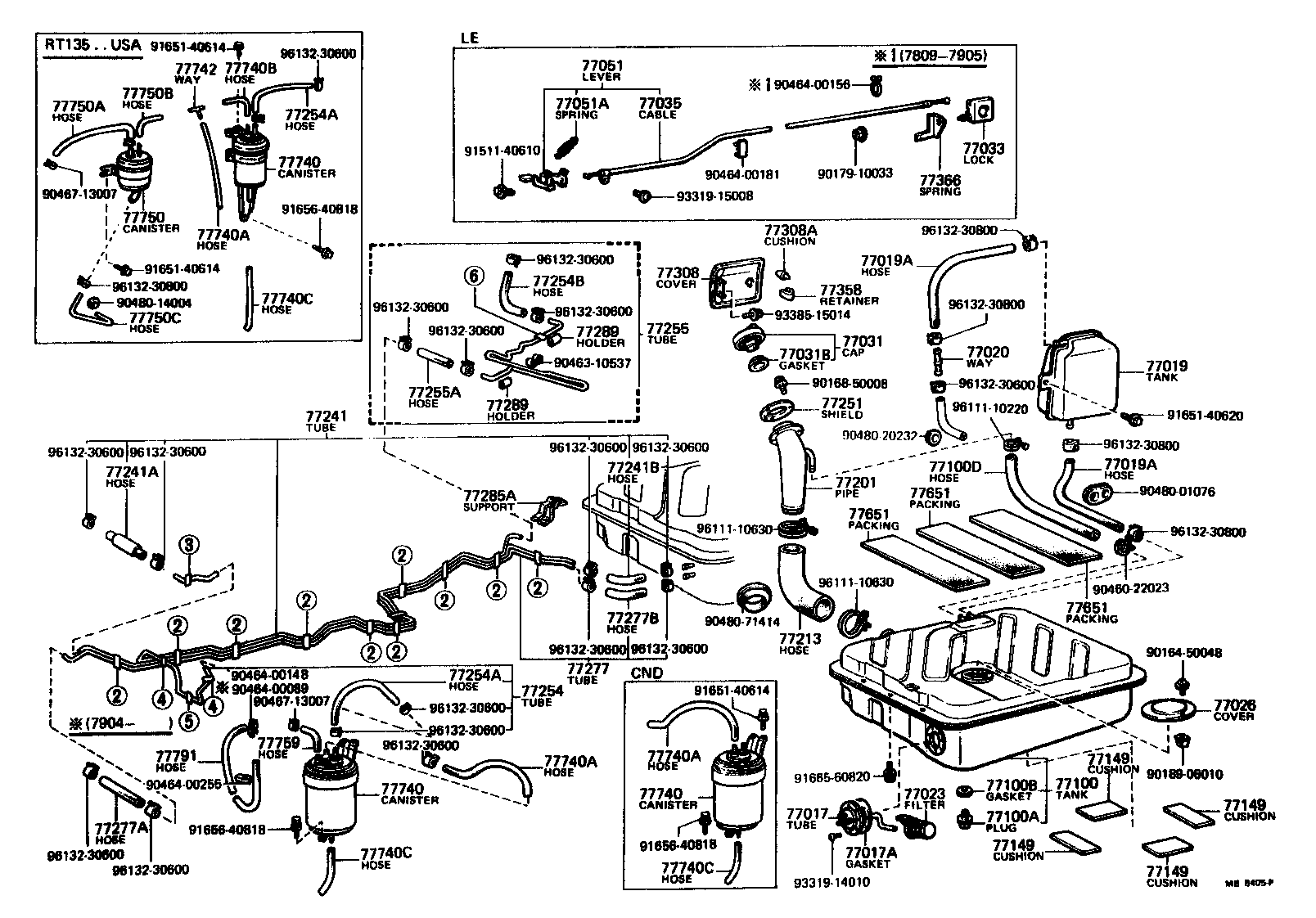

RT134LG-TWHESA (1978)
Toyota Corona
(7809- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-91257 |
RT134..WG |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 83361-14010 |
RT134..WG |
1 | ||
| 77019 - TANK SUB-ASSY, FUEL EXPANSION | ||||
| 77191-21010 |
RT13#..WG |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 95332-08046 |
RT134..WG *H,L=460,ID=7.6 |
2 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 95332-08046 |
RT134..WG *H,L=460,ID=7.6 |
2 | ||
| 77020 - WAY, 2(FOR FUEL EXPANSION TANK) | ||||
| 90412-08001 |
RT13#..WG |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77029-91600 |
RT13#..WG |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
RT134 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RT13# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77033-14020 |
RT134..(SED,WG)..LE |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20020 |
RT13#..(SED,WG)..LE L=3400 |
1 | ||
| 77035-91256 |
RT134..WG..LE |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77306-91256 |
RT134..WG..LE |
1 | ||
| 77051A - SPRING, TENSION (FOR FUEL LID LEVER) | ||||
| 90506-09004 |
RT134..WG..LE |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-91265 |
RT134..WG |
1 | ||
| 77001-91260 |
RT134..WG |
1 | ||
| 77001-91263 |
RT134..WG |
1 | ||
| 77001-91262 |
RT134..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RT13#..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RT13#..WG |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22012 |
RT13#..WG L=490 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91256 |
RT134..WG |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91256 |
RT134..WG |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91260 |
RT134..WG |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77019-20100 |
RT13# L=300 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT134..WG *H,L=200 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
RT13#..WG |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-91256 |
RT13#..WG |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
RT13# *H,L=200 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
RT13# *H,L=200 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
RT134..WG *H,L=280 |
1 | ||
| 90445-12086 |
RT134..WG *H,L=280 |
1 | ||
| 95332-06028 |
RT134..WG *H,L=280 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77263-91255 |
RT13#..WG |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06011 |
RT134..WG *H,L=110 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-91255 |
RT13#..WG |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06038 |
RT134 *H,L=380 |
1 | ||
| 95332-06030 |
RT134 *H,L=240 |
1 | ||
| 90447-12090 |
RT134 L=240 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
RT134 *H,L=260 |
1 | ||
| 95332-06026 |
RT134 *H,L=260 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-91255 |
RT13#..WG |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77273-20010 |
RT13#..WG |
2 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77273-20010 |
RT13#..WG |
2 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91255 |
RT13#..WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
RT13#..WG |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
RT13# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-91255 |
RT134..WG..LE |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
RT134..WG |
3 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
RT134..WG |
3 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
RT134..WG |
3 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14290 |
RT134..USA |
1 | ||
| 77740-14241 |
RT134..USA |
1 | ||
| 77740-14242 |
RT134..(3FC,3HC,5F)..USA *CAL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14290 |
RT134..USA |
1 | ||
| 77740-14241 |
RT134..USA |
1 | ||
| 77740-14242 |
RT134..(3FC,3HC,5F)..USA *CAL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14290 |
RT134..USA |
1 | ||
| 77740-14241 |
RT134..USA |
1 | ||
| 77740-14242 |
RT134..(3FC,3HC,5F)..USA *CAL |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
RT134..USA *H,L=330,MARK=#* |
1 | ||
| 95411-39960 |
RT134 *H,L=330 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
RT134..USA *H,L=330,MARK=#* |
1 | ||
| 95411-39960 |
RT134 *H,L=330 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
RT134..USA *H,L=330,MARK=#* |
1 | ||
| 95411-39960 |
RT134 *H,L=330 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
RT134 *H,L=200,ID=7.6 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
RT134 *H,L=200,ID=7.6 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
RT134 *H,L=200,ID=7.6 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-14011 |
RT134..USA |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-14011 |
RT134..USA |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90168-50008 | ||||
| 90179-10033 | ||||
| 90189-06010 | ||||
| 90460-22023 | ||||
| 90463-10537 | ||||
| 90464-00089 | ||||
| 90464-00148 | ||||
| 90464-00156 | ||||
| 90464-00181 | ||||
| 90464-00255 | ||||
| 90467-13007 | ||||
| 90480-01076 | ||||
| 90480-14004 | ||||
| 90480-20232 | ||||
| 90480-71414 | ||||
| 91511-40610 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91656-40818 | ||||
| 91665-60820 | ||||
| 93319-14010 | ||||
| 93319-15008 | ||||
| 93385-15014 | ||||
| 96111-10220 | ||||
| 96111-10630 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-07016 | ||||
| 90461-07019 | ||||
| 90461-08220 | ||||
| 90461-08474 | ||||
| 90461-08621 | ||||
| 90461-10210 | ||||
| 90461-10351 | ||||
| 91651-40614 | ||||
