RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )WG

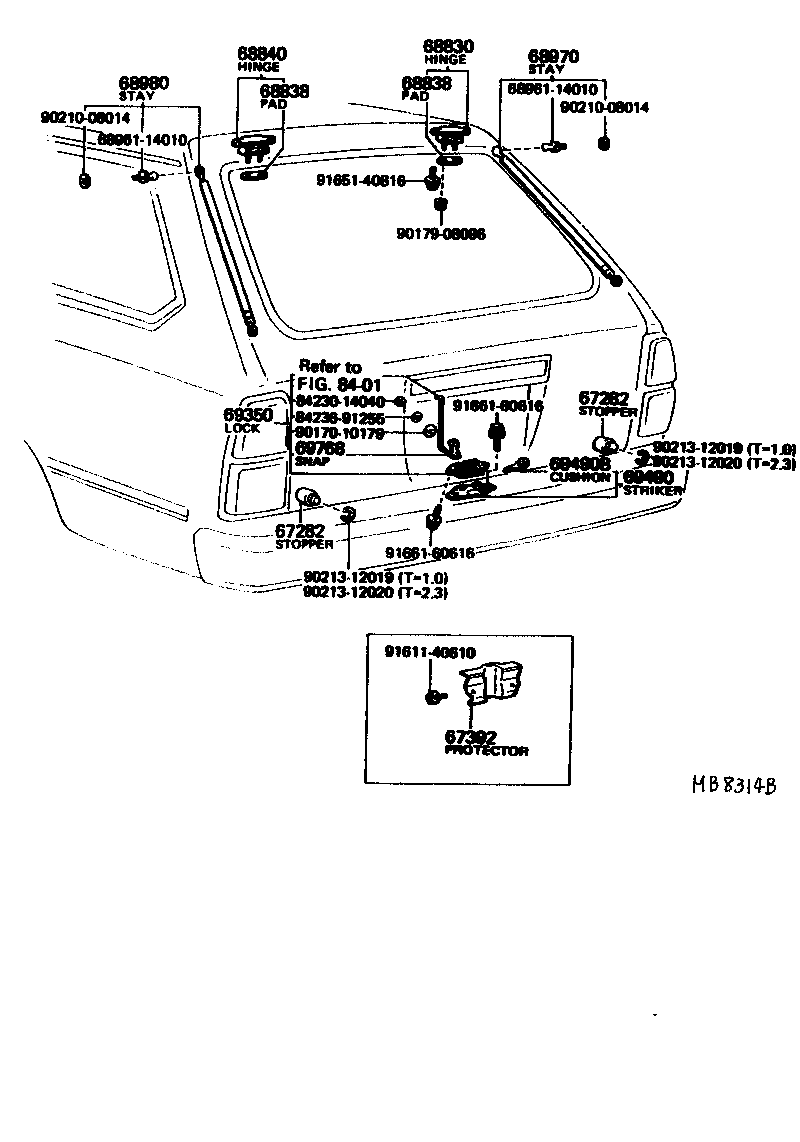

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67282 - STOPPER, BACK DOOR, NO.1 | ||||
| 67281-13030 |
RT13#..WG |
2 | ||
| 67282 - STOPPER, BACK DOOR, NO.1 | ||||
| 67281-13030 |
RT13#..WG |
2 | ||
| 67392 - PROTECTOR, BACK DOOR LOCK | ||||
| 67392-91255 |
RT134..WG |
1 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-91256 |
RT134..WG |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-91255 |
RT134..WG |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-91255 |
RT134..WG |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-91256 |
RT134..WG |
1 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-29035 |
RT13#..WG |
1 | ||
| 68950-29045 |
RT13#..WG W/RR WIPER |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-29035 |
RT13#..WG |
1 | ||
| 68950-29045 |
RT13#..WG W/RR WIPER |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-91258 |
RT134..WG |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-91255 |
RT134..WG |
1 | ||
| 69490B - CUSHION(FOR BACK DOOR LOCK STRIKER) | ||||
| 90541-06002 |
RT13#..WG |
1 | ||
| 69768 - SNAP, BACK DOOR LOCK CONTROL LINK | ||||
| 69377-30020 |
RT13#..WG |
1 | ||
| Common parts | ||||
| 68961-14010 | ||||
| 84230-14040 | ||||
| 84236-91255 | ||||
| 90170-10179 | ||||
| 90179-08096 | ||||
| 90210-08014 | ||||
| 90213-12019 | ||||
| 90213-12020 | ||||
| 91611-40610 | ||||
| 91651-40816 | ||||
| 91661-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
