RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

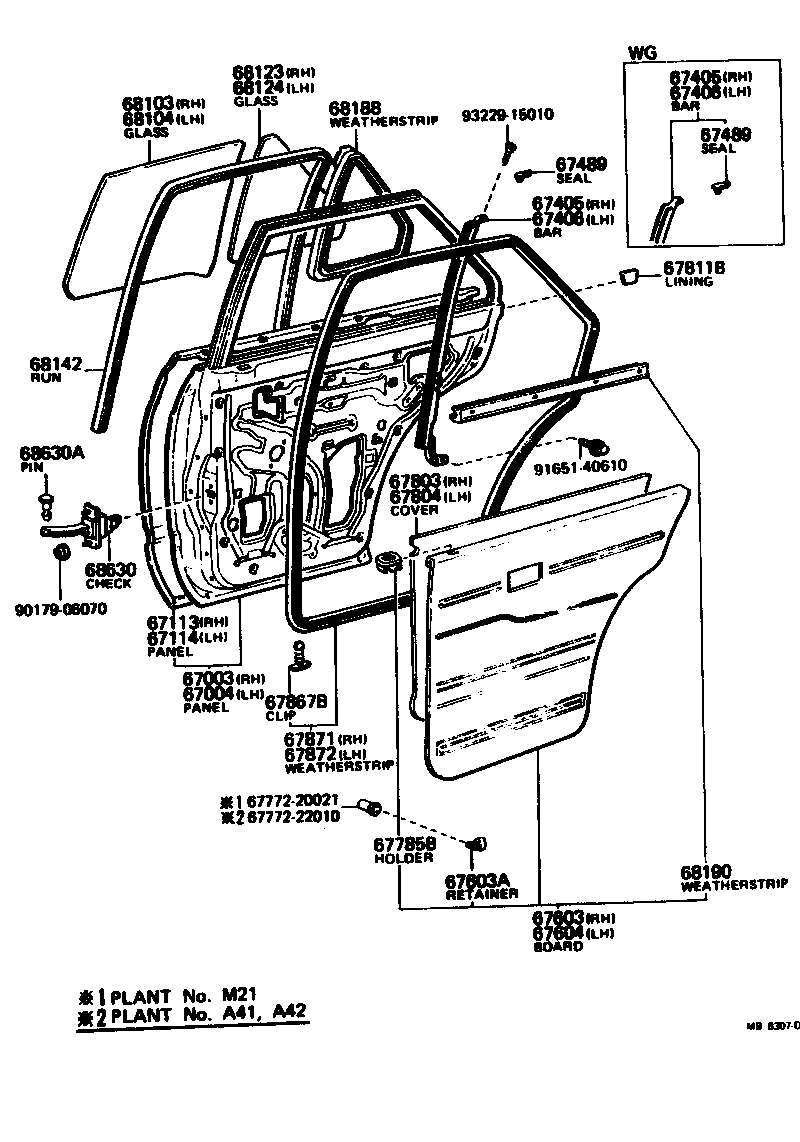

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-91260 |
RT134..WG |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-91260 |
RT134..WG |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20070 |
RT13# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20070 |
RT13# |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-91255 |
RT13#..WG |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-91255 |
RT13#..WG |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-91255 |
RT13#..WG |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-91255 |
RT13#..WG |
1 | ||
| 67489 - SEAL, REAR DOOR DIVISION BAR | ||||
| 67481-20010 |
RT13# RH |
1 | ||
| 67482-20010 |
RT13# LH |
1 | ||
| 67489 - SEAL, REAR DOOR DIVISION BAR | ||||
| 67481-20010 |
RT13# RH |
1 | ||
| 67482-20010 |
RT13# LH |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2044002 |
RT134..LE DARK WINE,RED/MAROON |
1 | ||
| 67630-2044001 |
RT134..LE BLACK,BLACK |
1 | ||
| 67630-2044005 |
RT134..LE BEIGE,BEIGE |
1 | ||
| 67630-20470 |
RT134..LE SSV |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-20022 |
RT13# |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2044001 |
RT134..LE BLACK,BLACK |
1 | ||
| 67640-2044002 |
RT134..LE DARK WINE,RED/MAROON |
1 | ||
| 67640-20470 |
RT134..LE SSV |
1 | ||
| 67640-2044005 |
RT134..LE BEIGE,BEIGE |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-20040 |
RT13# |
2 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-20110 |
RT13# |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-20110 |
RT13# |
1 | ||
| 67811B - PAD, SIDE PANEL SILENCER | ||||
| 67139-12010 |
RT13# |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
RT13# |
40 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-91259 |
RT13#..WG |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-91259 |
RT13#..WG |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-91260 |
RT134..WG *TT,T=4.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-91258 |
RT134..WG *TT,T=4.0 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-91261 |
RT13#..WG *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-91259 |
RT13#..WG *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-20040 |
RT13#..SED,WG |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68189-91256 |
RT13#..WG LH |
1 | ||
| 68188-91258 |
RT13#..WG RH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20120 |
RT13# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20020 |
RT13# |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-22010 |
RT13# |
2 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 67772-22010 | ||||
| 90179-06070 | ||||
| 91651-40610 | ||||
| 93229-15010 | ||||
