RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )LB,WG

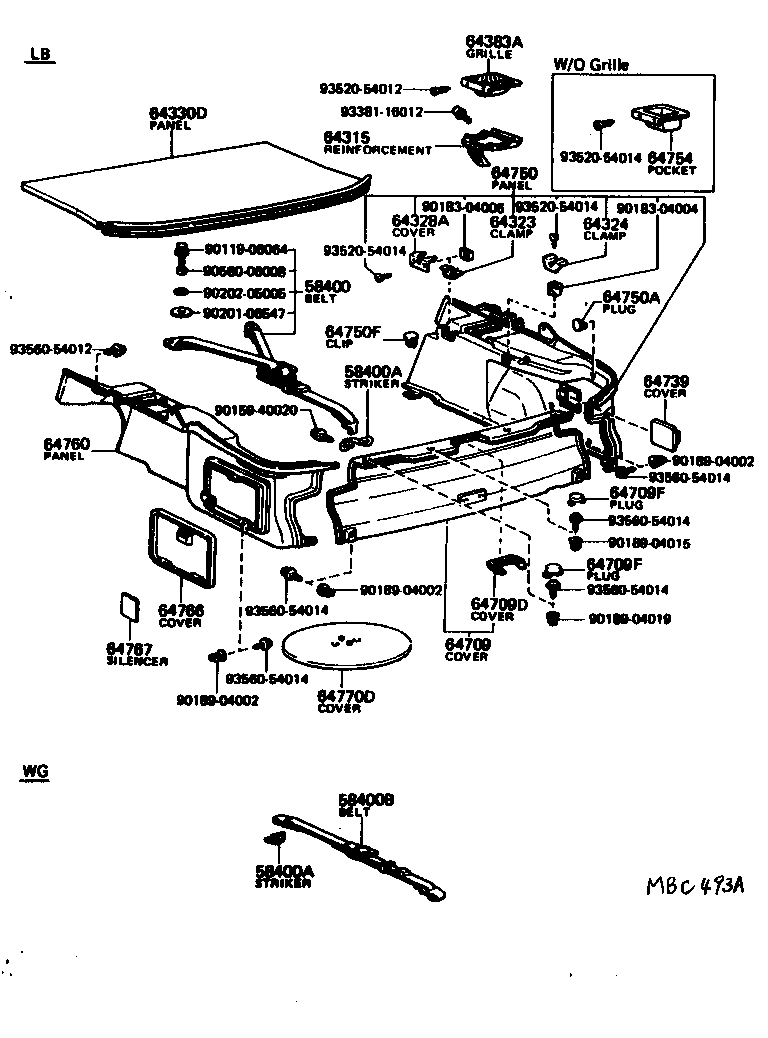

Click highlighted areas on diagram

diagram 58400 58400A 58400A 58400B 64315 64323 64324 64328A 64330D 64383A 64709 64709D 64709F 64709F 64739 64750 64750A 64750F 64754 64760 64766 64767 64770D 9011906064 9015940020 9018304004 9018304006 9018904002 9018904002 9018904002 9018904015 9018904019 9020106547 9020205005 9056006008 9338116012 9352054012 9352054014 9352054014 9352054014 9356054012 9356054014 9356054014 9356054014 9356054014 9356054014
Part # Description Qty Price
58400A - STRIKER, LUGGAGE HOLD BELT
58460-91255

RT13#..WG

 4
58400A - STRIKER, LUGGAGE HOLD BELT
58460-91255

RT13#..WG

 4
58400B - BELT ASSY, LUGGAGE HOLD, NO.2
58400-9125505

RT134..WG

BEIGE,BEIGE

 2
58400-9125502

RT13#..WG

DARK WINE,RED/MAROON

 2
58400-9125501

RT13#..WG

BLACK,BLACK

 2
Common parts
90119-06064
90159-40020
90183-04004
90183-04006
90189-04002
90189-04015
90189-04019
90201-06547
90202-05005
90560-06008
93381-16012
93520-54012
93520-54014
93560-54012
93560-54014
