RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )LE..LPB

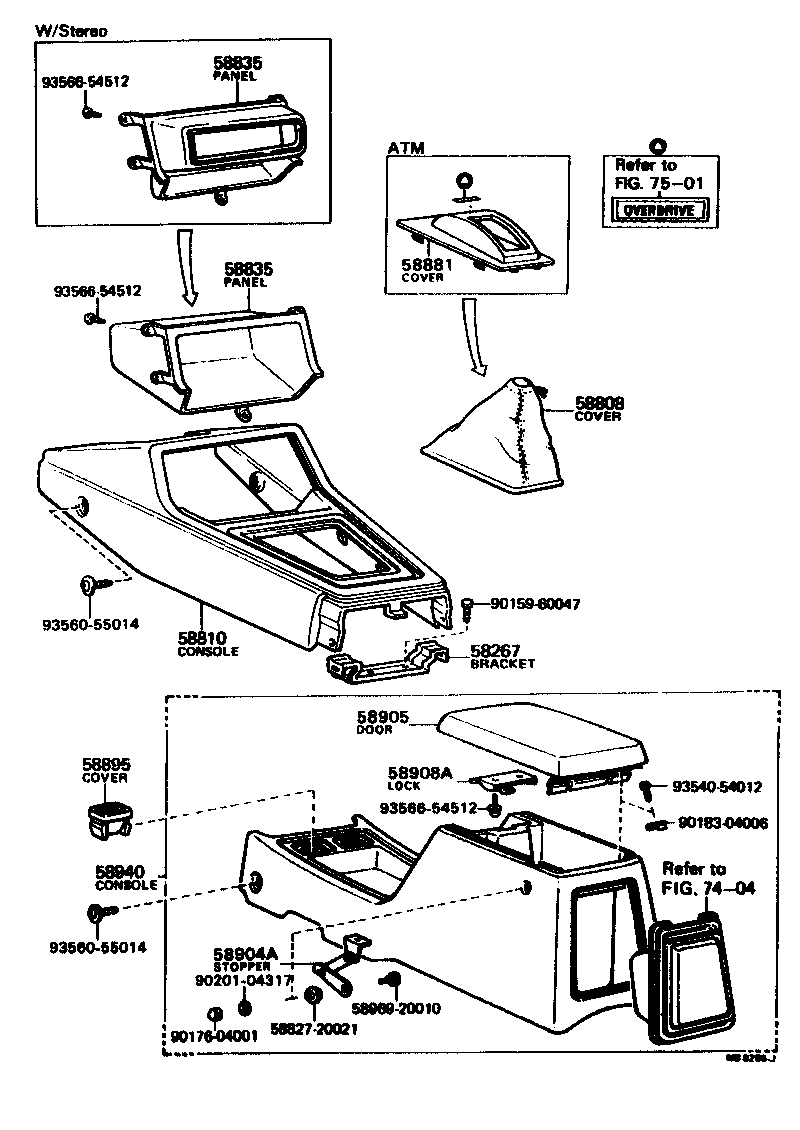

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER | ||||
| 58996-20010 |
RT13#..3FC,4F,4FC,5F |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-2014002 |
RT134..LE DARK WINE,RED/MAROON |
1 | ||
| 58811-2014005 |
RT134..LE BEIGE,BEIGE |
1 | ||
| 58811-2014001 |
RT134..LE BLACK,BLACK |
1 | ||
| 58835 - PANEL, CONSOLE, UPPER | ||||
| 58821-20040 |
RT134..LE W/STEREO |
1 | ||
| 58821-20030 |
RT134..LE |
1 | ||
| 58835 - PANEL, CONSOLE, UPPER | ||||
| 58821-20040 |
RT134..LE W/STEREO |
1 | ||
| 58821-20030 |
RT134..LE |
1 | ||
| 58881 - COVER, SHIFTING HOLE | ||||
| 58843-20030 |
RT134..3FC |
1 | ||
| 58895 - COVER, SWITCH HOLE, NO.1 | ||||
| 58896-20011 |
RT134..3FC,4F,5F |
2 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
RT13#..LE..LPB |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2003002 |
RT13#..LE..LPB DARK WINE,RED/MAROON |
1 | ||
| 58905-2003001 |
RT13#..LE..LPB BLACK,BLACK |
1 | ||
| 58905-2003005 |
RT134..LE..LPB BEIGE,BEIGE |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58803-20010 |
RT13#..LE..LPB |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-2001002 |
RT134..LE..LPB DARK WINE,RED/MAROON |
1 | ||
| 58901-2001005 |
RT134..LE..LPB BEIGE,BEIGE |
1 | ||
| 58901-2001001 |
RT134..LE..LPB BLACK,BLACK |
1 | ||
| Common parts | ||||
| 58827-20021 | ||||
| 58969-20010 | ||||
| 90159-60047 | ||||
| 90176-04001 | ||||
| 90183-04006 | ||||
| 90201-04317 | ||||
| 93540-54012 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 7501 | ||||
