RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)

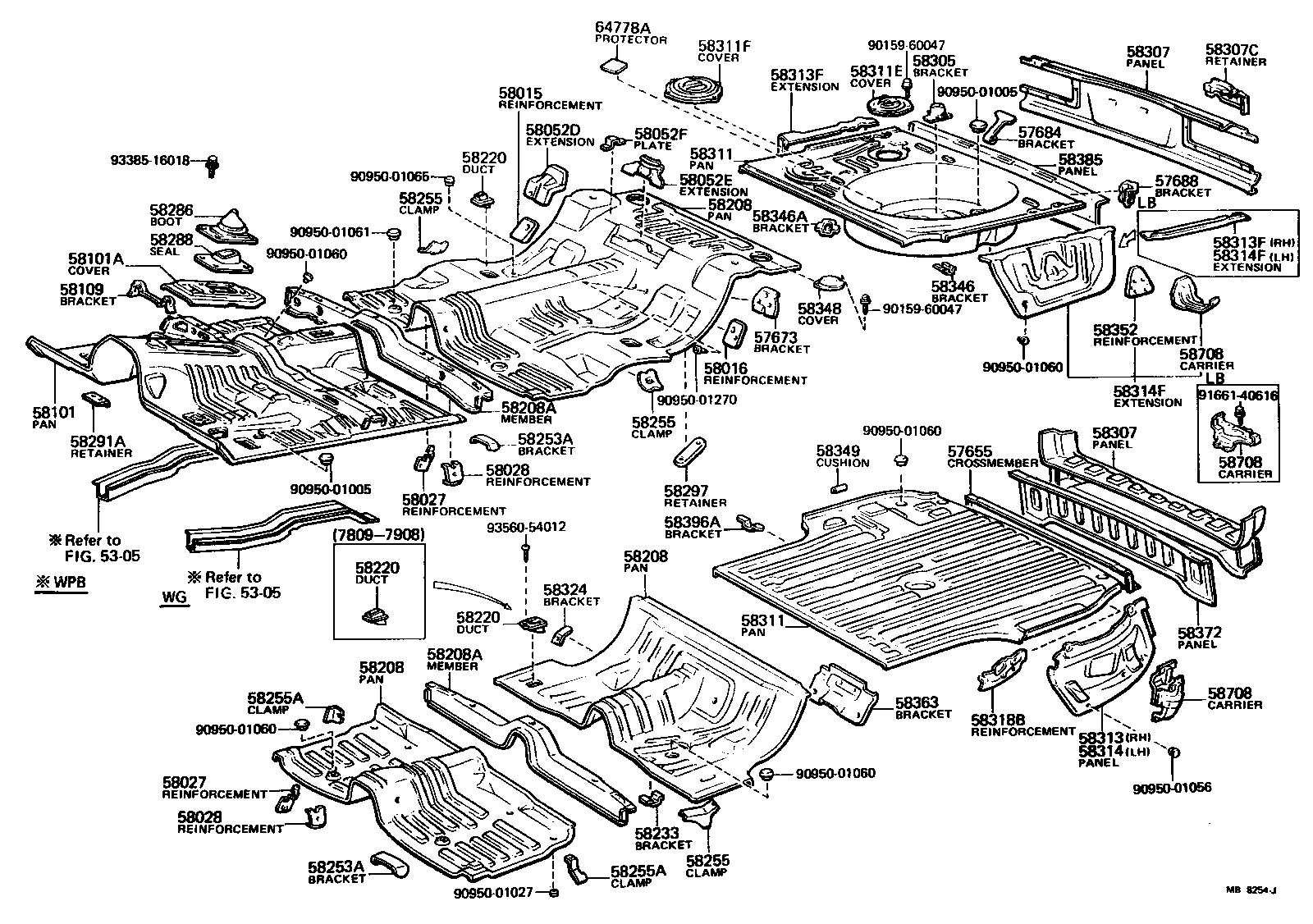

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57655 - MEMBER, REAR FLOOR CROSS, NO.5 | ||||
| 57609-91255 |
RT13#..WG |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-20030 |
RT13# |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-20030 |
RT13# |
1 | ||
| 58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2 | ||||
| 58028-20010 |
RT13# |
1 | ||
| 58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2 | ||||
| 58028-20010 |
RT13# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-20900 |
RT134..3FC,4F,5F |
1 | ||
| 58101-20902 |
RT134..3FC,4F,5F |
1 | ||
| 58101-20904 |
RT134..3FC,4F,5F |
1 | ||
| 58101A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-20040 |
RT13#..3FC,4FC |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-20050 |
RT13#..LPB |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-91255 |
RT134..WG RR |
1 | ||
| 58212-91255 |
RT13#..WG FR |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-91255 |
RT134..WG RR |
1 | ||
| 58212-91255 |
RT13#..WG FR |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-91255 |
RT134..WG RR |
1 | ||
| 58212-91255 |
RT13#..WG FR |
1 | ||
| 58208A - MEMBER, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-91255 |
RT13#..WG |
1 | ||
| 58208A - MEMBER, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-91255 |
RT13#..WG |
1 | ||
| 58220 - DUCT ASSY, CENTER FLOOR VENT | ||||
| 62860-91255 |
RT134..WG |
1 | ||
| 58220 - DUCT ASSY, CENTER FLOOR VENT | ||||
| 62860-91255 |
RT134..WG |
1 | ||
| 58220 - DUCT ASSY, CENTER FLOOR VENT | ||||
| 62860-91255 |
RT134..WG |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-91255 |
RT13#..WG |
2 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58207-20050 |
RT13# |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58207-20050 |
RT13# |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58038-91255 |
RT13#..WG RH |
1 | ||
| 58039-91256 |
RT13#..WG LH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58038-91255 |
RT13#..WG RH |
1 | ||
| 58039-91256 |
RT13#..WG LH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58038-91255 |
RT13#..WG RH |
1 | ||
| 58039-91256 |
RT13#..WG LH |
1 | ||
| 58255A - CLAMP, PARKING BRAKE CABLE, NO.2 | ||||
| 58276-91255 |
RT13#..WG LH |
1 | ||
| 58265-91255 |
RT13#..WG RH |
1 | ||
| 58255A - CLAMP, PARKING BRAKE CABLE, NO.2 | ||||
| 58276-91255 |
RT13#..WG LH |
1 | ||
| 58265-91255 |
RT13#..WG RH |
1 | ||
| 58291A - RETAINER, ACCELERATOR PEDAL | ||||
| 58291-20010 |
RT13# RH |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91257 |
RT13#..WG |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91257 |
RT13#..WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-91257 |
RT13#..WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-91257 |
RT13#..WG |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-91257 |
RT13#..WG |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-91256 |
RT13#..WG |
1 | ||
| 58318B - REINFORCEMENT, WASHER TANK BRACKET | ||||
| 58318-91255 |
RT13#..WG |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 58326-91255 |
RT13#..WG |
1 | ||
| 58349 - CUSHION, REAR FLOOR SIDE | ||||
| 58349-91600 |
RT13#..WG |
1 | ||
| 58363 - BRACKET SUB-ASSY, DIFF CARRIER BUMPER | ||||
| 58235-91255 |
RT13#..WG |
1 | ||
| 58372 - PANEL, BODY LOWER BACK, INNER | ||||
| 58372-91256 |
RT13#..WG |
1 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-91255 |
RT13#..WG |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58709-91255 |
RT13#..WG |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58709-91255 |
RT13#..WG |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58709-91255 |
RT13#..WG |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01065 | ||||
| 90950-01270 | ||||
| 91661-40616 | ||||
| 93385-16018 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 5305 | ||||
