RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )LPB

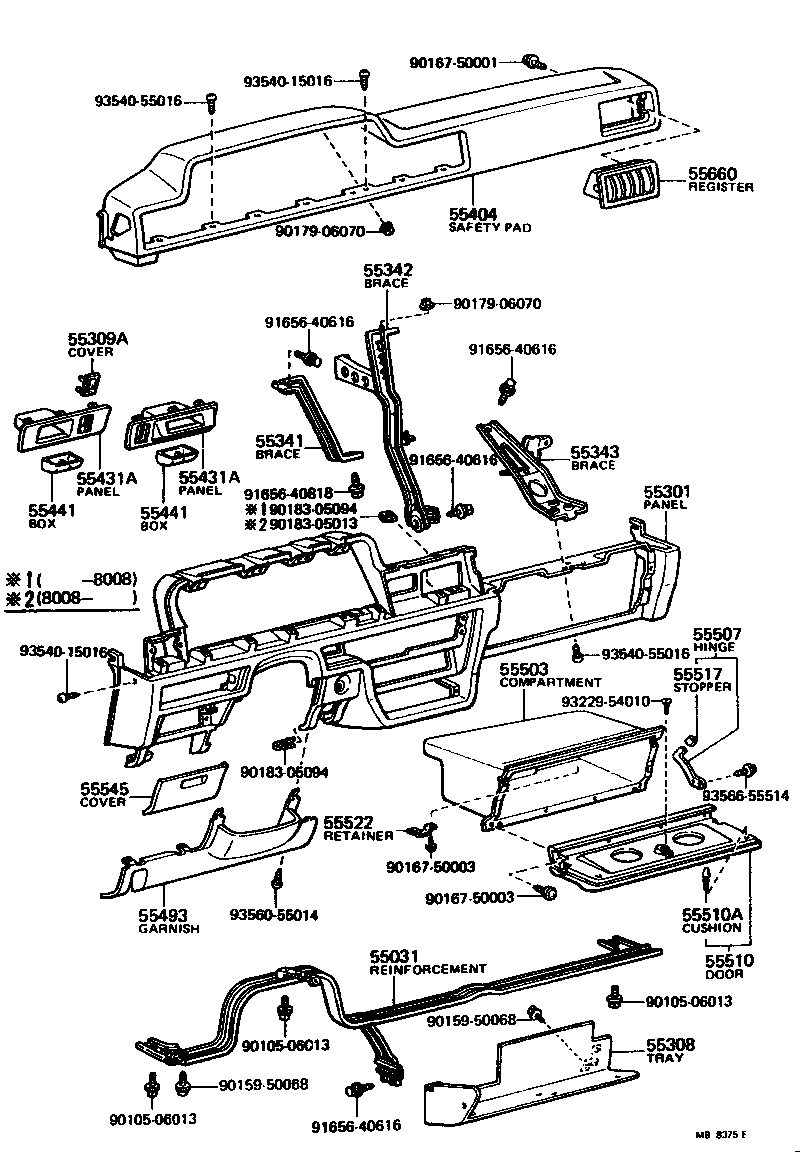

Click highlighted areas on diagram

diagram 55031 55301 55308 55309A 55341 55342 55343 55404 55431A 55431A 55441 55441 55493 55503 55507 55510 55510A 55517 55522 55545 55660 9010506013 9010506013 9010506013 9015950068 9015950068 9016750001 9016750003 9016750003 9017906070 9017906070 9018305013 9018305094 9018305094 9165640616 9165640616 9165640616 9165640616 9165640818 9322954010 9354015016 9354015016 9354055016 9354055016 9356055014 9356655514
Part # Description Qty Price
55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1
55305-20080

RT13#..LPB

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-2011105

RT134

BEIGE,BEIGE

 1
55311-2011001

RT134..LPB

BLACK,BLACK

 1
55311-2011005

RT134..LPB

BEIGE,BEIGE

 1
55311-2011002

RT134..LPB

DARK WINE,RED/MAROON

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55601-2002005

RT134..LPB

BEIGE,BEIGE

 1
55601-2002001

RT13#..LPB

BLACK,BLACK

 1
55601-2002002

RT13#..LPB

DARK WINE,RED/MAROON

 1
55309A - COVER, BASE SWITCH HOLE, NO.1
55384-20011

RT13#..LPB

 2
55341 - BRACE, INSTRUMENT PANEL, NO.1
55341-20060

RT13#..LPB

 1
55342 - BRACE, INSTRUMENT PANEL, NO.2
55307-20040

RT13#..LPB

 1
55343 - BRACE, INSTRUMENT PANEL, NO.3
55308-20110

RT13#..LPB

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-2037002

RT134

DARK WINE,RED/MAROON

 1
55401-2037005

RT134

BEIGE,BEIGE

 1
55401-2037001

RT134

BLACK,BLACK

 1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-20090

RT134..LE..LPB

 1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-20090

RT134..LE..LPB

 1
55441 - BOX, INSTRUMENT PANEL
55441-20120

RT13#..LPB

 1
55441 - BOX, INSTRUMENT PANEL
55441-20120

RT13#..LPB

 1
55493 - GARNISH OR SAFETY PAD, LOWER, LH
55432-2009005

RT134..(3FC,4F,5F)..LPB

BEIGE,BEIGE

 1
55432-2009105

RT134..3FC,4F,5F

BEIGE,BEIGE

 1
55432-2009002

RT134..(3FC,4F,5F)..LPB

DARK WINE,RED/MAROON

 1
55432-2009001

RT134..(3FC,4F,5F)..LPB

BLACK,BLACK

 1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55581-20040

RT13#..LPB

 1
55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55556-20030

RT13#..LPB

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-2004002

RT13#..LPB

DARK WINE,RED/MAROON

 1
55550-2004005

RT134..LPB

BEIGE,BEIGE

 1
55550-2004001

RT13#..LPB

BLACK,BLACK

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

RT13#

 2
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-14010

RT13#

 1
55522 - RETAINER, GLOVE COMPARTMENT MALE
55561-12010

RT13#..LPB

 1
55545 - COVER, FUSE BOX OPENING
55540-2002101

RT134..LPB

BLACK,BLACK

 1
55540-2002102

RT134..LPB

DARK WINE,RED/MAROON

 1
55540-2002002

RT134

DARK WINE,RED/MAROON

 1
55540-2002005

RT134

BEIGE,BEIGE

 1
55540-2002001

RT134

BLACK,BLACK

 1
55540-2002105

RT134..LPB

BEIGE,BEIGE

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-20020

RT134..LE

 1
Common parts
90105-06013
90159-50068
90167-50001
90167-50003
90179-06070
90183-05013
90183-05094
91656-40616
91656-40818
93229-54010
93540-15016
93540-55016
93560-55014
93566-55514

(7809-8008)

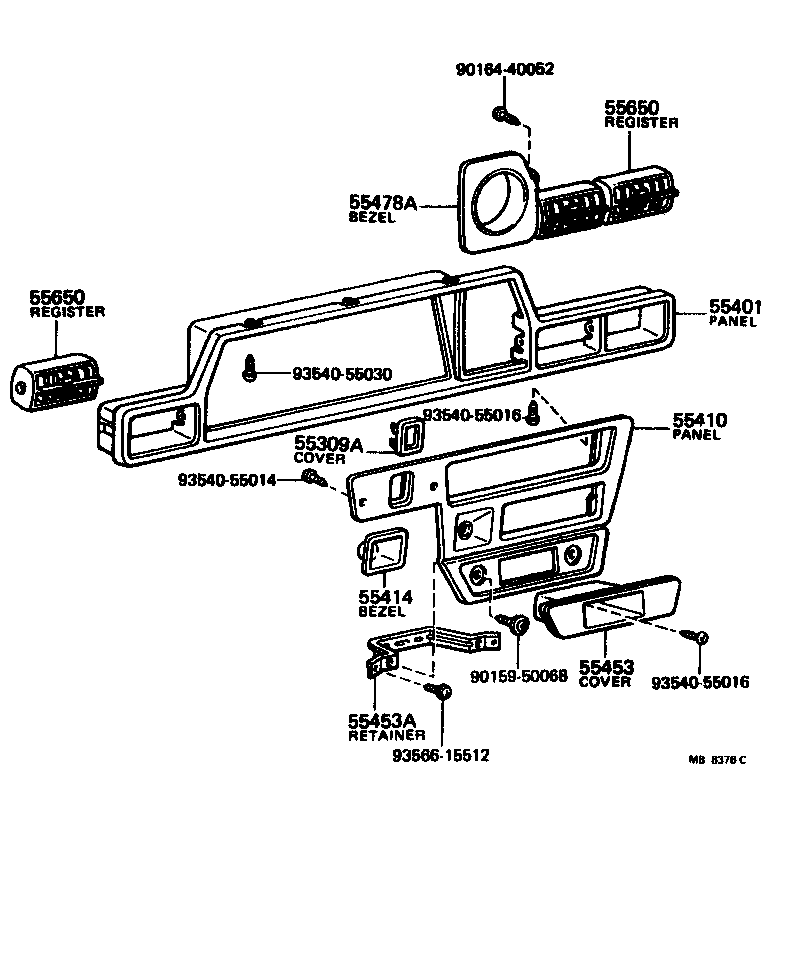

Click highlighted areas on diagram

diagram 55309A 55401 55410 55414 55453 55453A 55478A 55650 55650 9015950068 9016440052 9354055014 9354055016 9354055016 9354055030 9356615512
Part # Description Qty Price
55309A - COVER, BASE SWITCH HOLE, NO.1
55384-20011

RT13#..LPB

 2
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55410-20350

RT134..LE

 1
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55412-20150

RT134..LE

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-20040

RT13#

 1
55453 - COVER, RADIO TUNER OPENING
55522-20030

RT13#..LPB

 1
55453A - RETAINER, RADIO TUNER OPENING, NO.1
55417-20030

RT13#..LPB

 1
55478A - BEZEL, AUTO CLOCK HOLE
55478-20050

RT134

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55061-20020

RT13#

 3
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55061-20020

RT13#

 3
Common parts
90159-50068
90164-40052
93540-55014
93540-55016
93540-55030
93566-15512
