RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

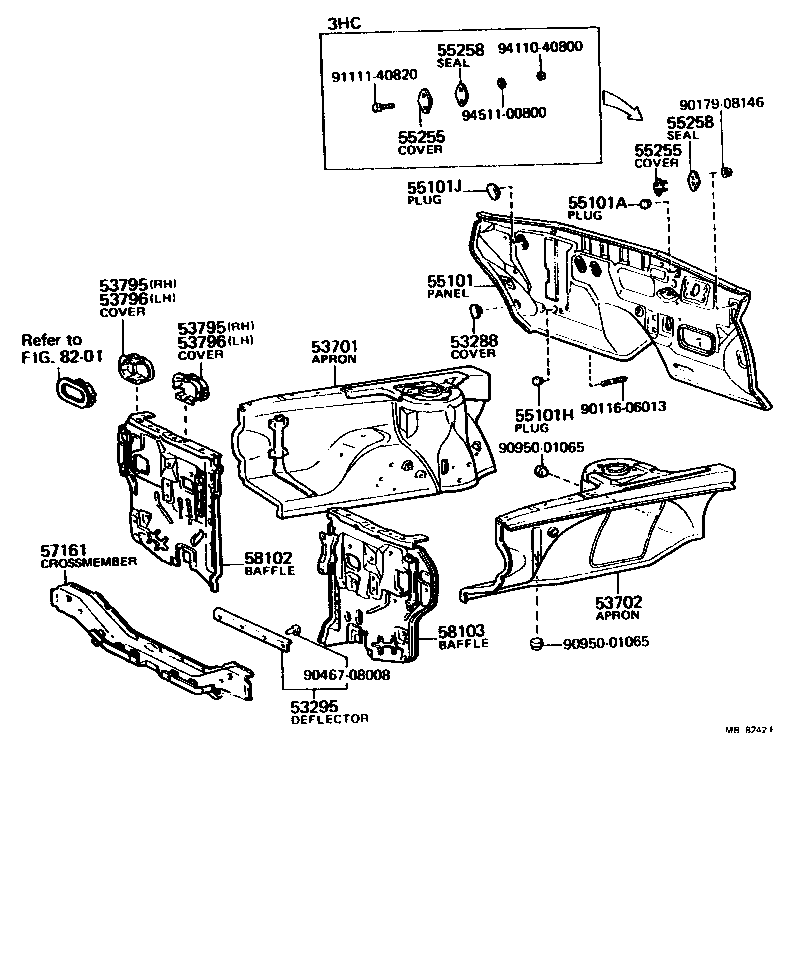

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-14021 |
RT134 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-20340 |
RT134 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-20420 |
RT134 |
1 | ||
| 53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH | ||||
| 53793-20020 |
RT134..(3FC,3HC,5F)..USA W/COOLER,INNER |
1 | ||
| 53795-20040 |
RT134..(3FC,3HC,5F)..USA W/COOLER,OUTER |
1 | ||
| 53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH | ||||
| 53793-20020 |
RT134..(3FC,3HC,5F)..USA W/COOLER,INNER |
1 | ||
| 53795-20040 |
RT134..(3FC,3HC,5F)..USA W/COOLER,OUTER |
1 | ||
| 53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH | ||||
| 53793-20020 |
RT134..(3FC,3HC,5F)..USA W/COOLER,INNER |
1 | ||
| 53795-20040 |
RT134..(3FC,3HC,5F)..USA W/COOLER,OUTER |
1 | ||
| 53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH | ||||
| 53793-20020 |
RT134..(3FC,3HC,5F)..USA W/COOLER,INNER |
1 | ||
| 53795-20040 |
RT134..(3FC,3HC,5F)..USA W/COOLER,OUTER |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-20910 |
RT134 |
1 | ||
| 55101-20902 |
RT134 |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01133 |
RT13# |
1 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01060 |
RT13# |
1 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
RT13# |
1 | ||
| 55255 - COVER, CLUTCH MASTER CYLINDER HOLE | ||||
| 55255-22020 |
RT13#..3FC,4FC |
1 | ||
| 55255 - COVER, CLUTCH MASTER CYLINDER HOLE | ||||
| 55255-22020 |
RT13#..3FC,4FC |
1 | ||
| 55258 - SEAL, CLUTCH MASTER CYLINDER HOLE | ||||
| 55258-20010 |
RT13#..ATM |
1 | ||
| 55258 - SEAL, CLUTCH MASTER CYLINDER HOLE | ||||
| 55258-20010 |
RT13#..ATM |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-20901 |
RT13# |
1 | ||
| 58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH | ||||
| 53202-20030 |
RT134 |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53203-20050 |
RT134 |
1 | ||
| Common parts | ||||
| 90116-06013 | ||||
| 90179-08146 | ||||
| 90467-08008 | ||||
| 90950-01065 | ||||
| 91111-40820 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 8201 | ||||
