RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)WG

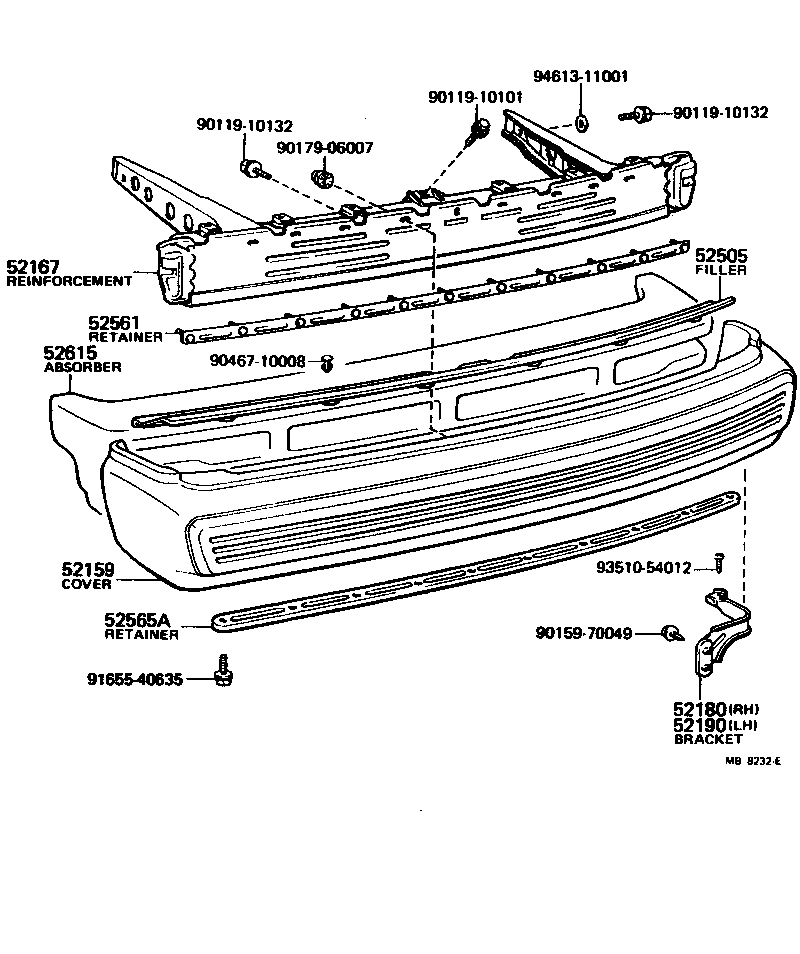

Click highlighted areas on diagram

diagram 52159 52167 52180 52190 52505 52561 52565A 52615 9011910101 9011910132 9011910132 9015970049 9017906007 9046710008 9165540635 9351054012 9461311001
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-20030

RT134..LPB

 1
52167 - REINFORCEMENT, REAR BUMPER
52023-91255

RT134..WG

 1
52180 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52180-20010

RT13#

 1
52190 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52190-20010

RT13#

 1
52505 - FILLER SUB-ASSY, REAR BUMPER
52551-91255

RT13#..WG

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20020

RT13#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14020

RT13#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20010

RT134

 1
Common parts
90119-10101
90119-10132
90159-70049
90179-06007
90467-10008
91655-40635
93510-54012
94613-11001
