RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

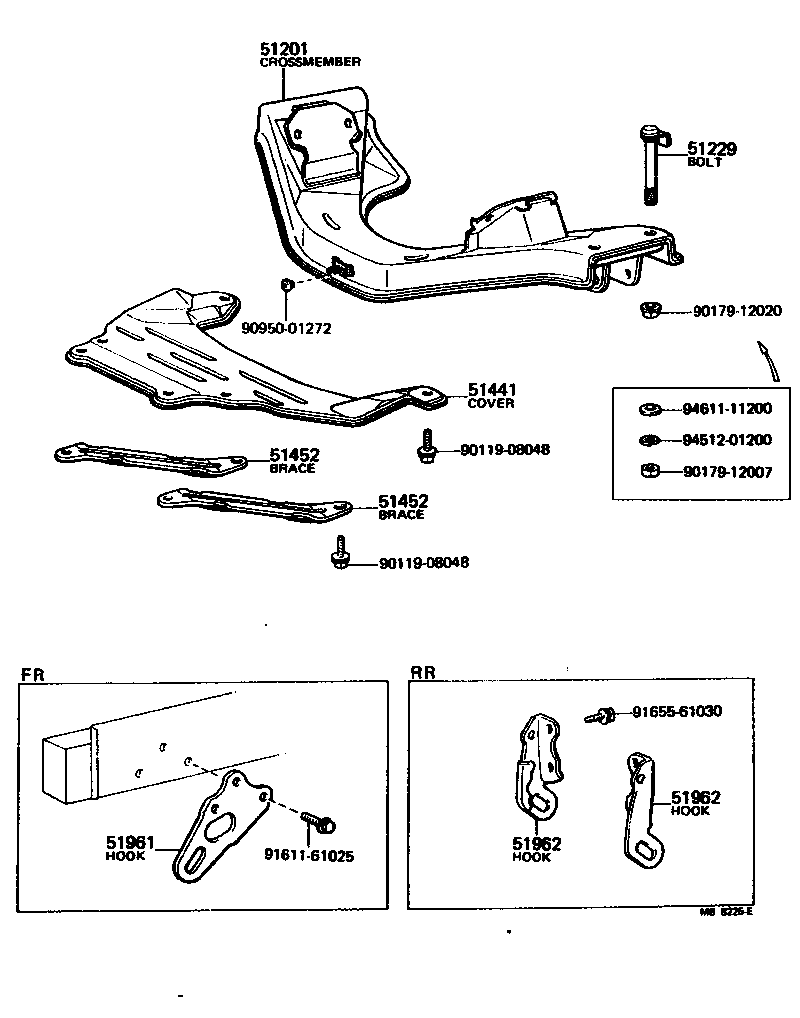

Click highlighted areas on diagram

diagram 51201 51229 51441 51452 51452 51961 51962 51962 9011908048 9011908048 9017912007 9017912020 9095001272 9161161025 9165561030 9451201200 9461111200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20130

RT134

 1
51229 - BOLT, SUSPENSION MEMBER SET
51296-14010

RT134

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-14021

RT13#

 1
51452 - BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER
51452-14011

RT13#

 2
51452 - BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER
51452-14011

RT13#

 2
51961 - HOOK, NO.1
51963-20050

RT134

 2
Common parts
90119-08048
90179-12007
90179-12020
90950-01272
91611-61025
91655-61030
94512-01200
94611-11200
