RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

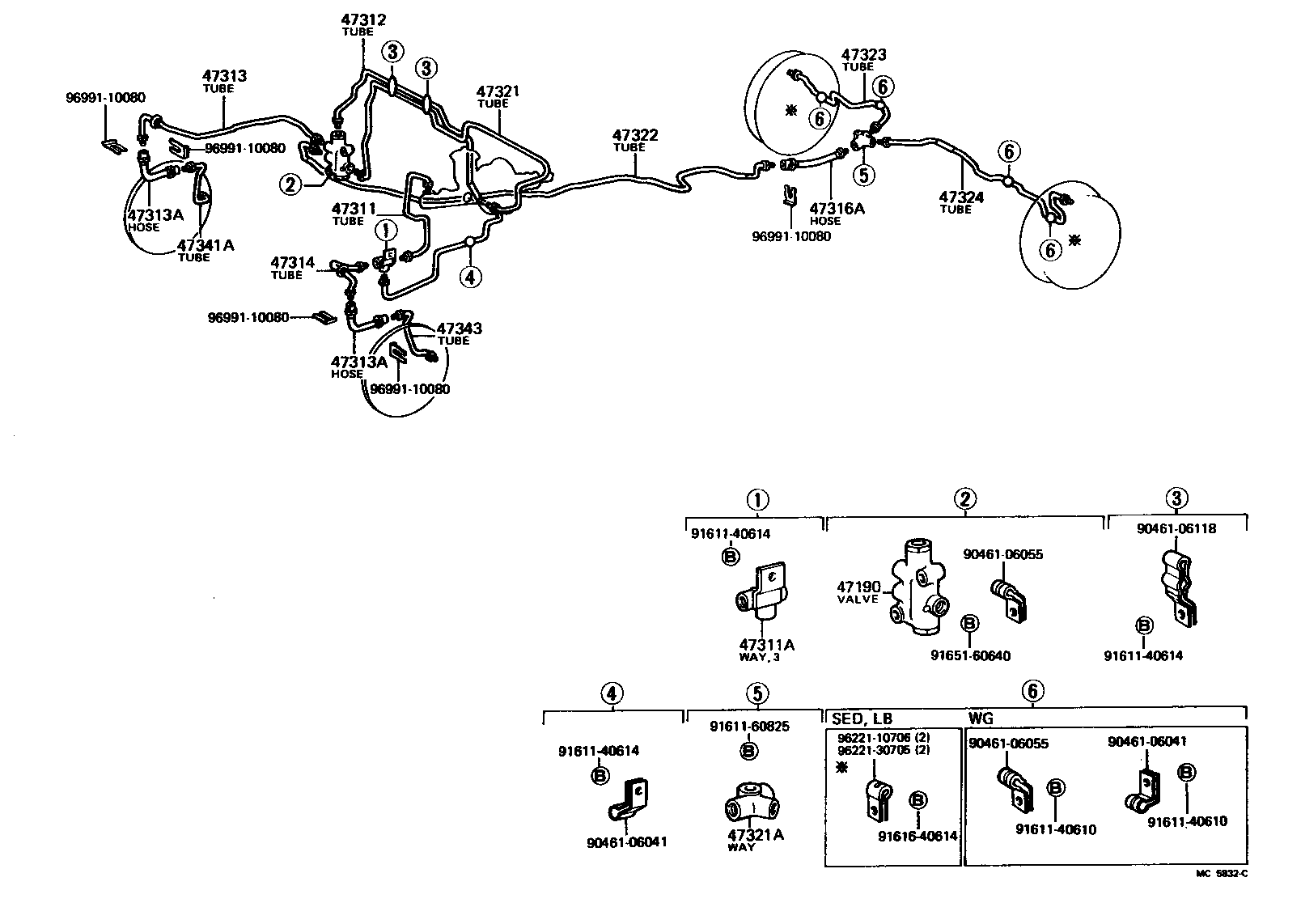

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-20010 |
RT13# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14130 |
RT13# |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10004 |
RT13# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20060 |
RT134 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20150 |
RT134 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02386 |
RT134 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02386 |
RT134 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-14022 |
RT13# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02262 |
RT134..WG |
1 | ||
| 96910-33905 |
RT134..WG |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-20030 |
RT134 |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
RT13# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-21020 |
RT13#..WG |
1 | ||
| 47322-20030 |
RT13# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-20020 |
RT13#..WG |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-20020 |
RT13#..WG |
1 | ||
| 47341A - TUBE, WHEEL CYLINDER, FRONT RH | ||||
| 47341-20040 |
RT13# |
1 | ||
| 47343 - TUBE, WHEEL CYLINDER, FRONT LH | ||||
| 47343-20020 |
RT13# |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 90461-06055 | ||||
| 90461-06118 | ||||
| 91611-40610 | ||||
| 91611-40614 | ||||
| 91611-60825 | ||||
| 91616-40614 | ||||
| 91651-60640 | ||||
| 96221-10706 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
