RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )3FC,4F,5F

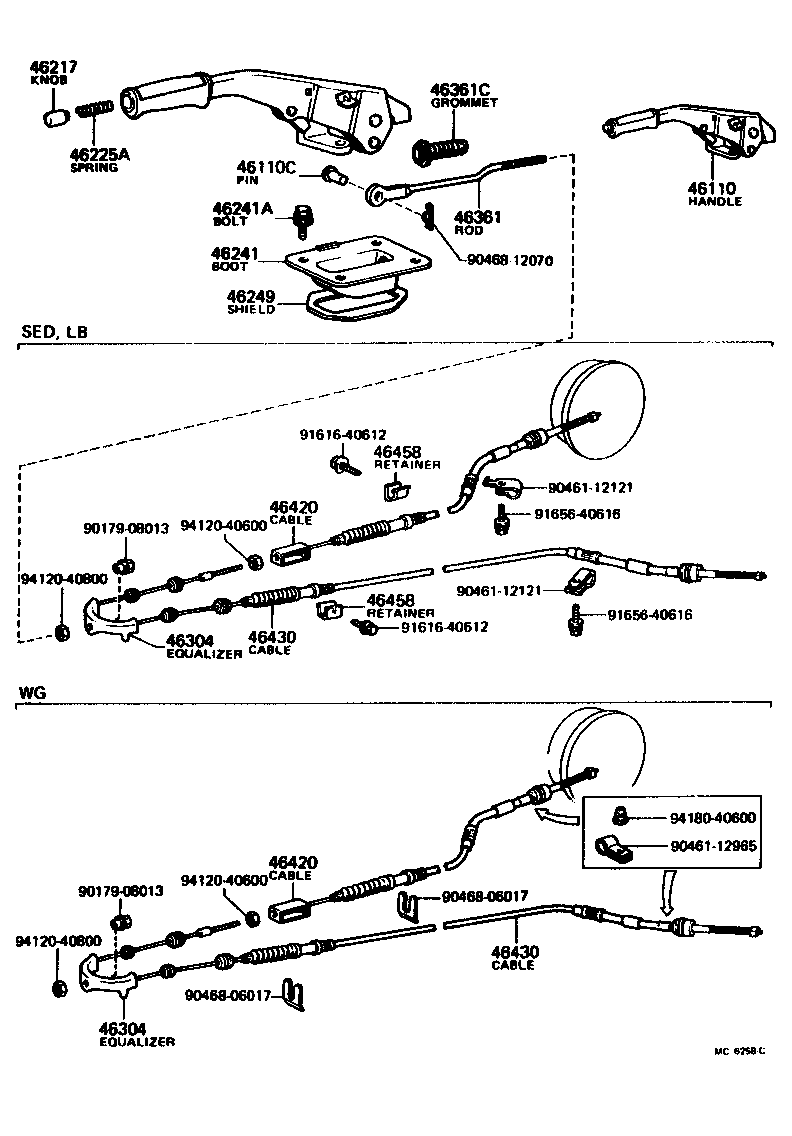

Click highlighted areas on diagram

diagram 46110 46110C 46217 46225A 46241 46241A 46249 46304 46304 46361 46361C 46420 46420 46430 46430 46458 46458 9017908013 9017908013 9046112121 9046112121 9046112965 9046806017 9046806017 9046812070 9161640612 9161640612 9165640616 9165640616 9412040600 9412040600 9412040800 9412040800 9418040600
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46201-20060

RT134..LE..LPB

 1
46110C - PIN(FOR PARKING BRAKE HANDLE SET)
90240-08037

RT134..3FC,4F,5F

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002001

RT134..3FC,4F,5F

BLACK,BLACK

 1
46217-1002002

RT134..3FC,4F,5F

DARK WINE,RED/MAROON

 1
46217-1002006

RT134..3FC,4F,5F

LIGHT BROWN,BROWN

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

RT134..3FC,4F,5F

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-14020

RT134..3FC,4F,5F

 1
46241-14021

RT134..3FC,4F,5F

 1
46241A - BOLT(FOR PARKING BRAKE SETTING)
90119-08146

RT134..(3FC,4F,5F)..LPB

*8-1.25PX25-18.5

 4
46249 - SHIELD, PARKING BRAKE HOLE
46249-22020

RT134..3FC,4F,5F

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-14010

RT134..3FC,4F,5F

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-14010

RT134..3FC,4F,5F

 1
46361 - ROD, PARKING BRAKE PULL
46361-20040

RT134..3FC,4F,5F

 1
46361C - GROMMET(FOR PARKING BRAKE PULL ROD)
90480-01057

RT134..3FC,4F,5F

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-21050

RT134..WG

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-21050

RT134..WG

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-21070

RT134..WG

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-21070

RT134..WG

 1
Common parts
90179-08013
90461-12121
90461-12965
90468-06017
90468-12070
91616-40612
91656-40616
94120-40600
94120-40800
94180-40600
