RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

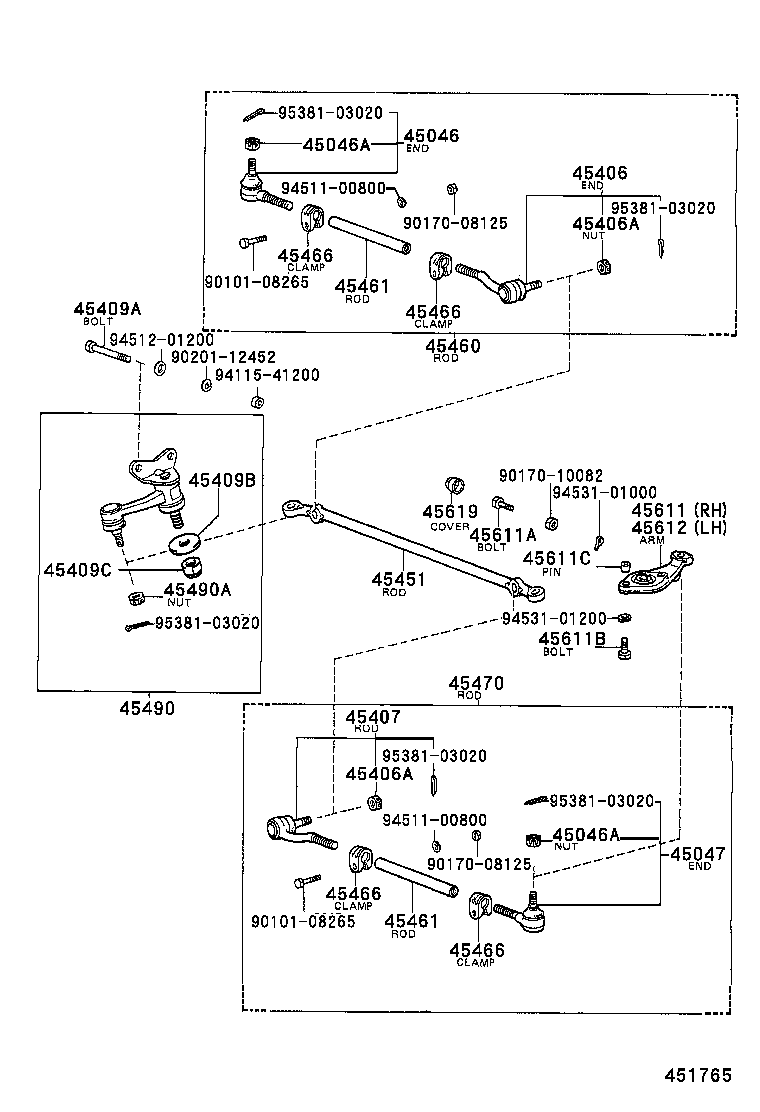

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45406 45406A 45406A 45407 45409A 45409B 45409C 45451 45460 45461 45461 45466 45466 45466 45466 45470 45490 45490A 45611 45611A 45611B 45611C 45612 45619 9010108265 9010108265 9017008125 9017008125 9017010082 9020112452 9411541200 9451100800 9451100800 9451201200 9453101000 9453101200 9538103020 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29075

RT13#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

RT13#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

RT13#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29075

RT13#

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-19016

RT13#

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-12028

RT13#

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-12028

RT13#

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-19016

RT13#

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90101-12033

RT13#

 2
45451 - ROD, STEERING RELAY
45451-15020

RT13#..WG

 1
45460 - ROD ASSY, TIE, RH
45460-29145

RT134

 1
45461 - ROD, STEERING TIE
45465-14010

RT13#

 2
45461 - ROD, STEERING TIE
45465-14010

RT13#

 2
45466 - CLAMP, TIE ROD END
45466-22010

RT13#

 4
45466 - CLAMP, TIE ROD END
45466-22010

RT13#

 4
45466 - CLAMP, TIE ROD END
45466-22010

RT13#

 4
45466 - CLAMP, TIE ROD END
45466-22010

RT13#

 4
45470 - ROD ASSY, TIE, LH
45460-29145

RT134

 1
45490 - ARM ASSY, STEERING IDLER
45490-29305

RT134

W/POWER STEERING

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

RT13#

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-14011

RT13#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10002

RT13#

 2
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12295

RT13#

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

RT13#

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-14011

RT13#

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

RT13#

 2
Common parts
90101-08265
90170-08125
90170-10082
90201-12452
94115-41200
94511-00800
94512-01200
94531-01000
94531-01200
95381-03020
