RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )ATM

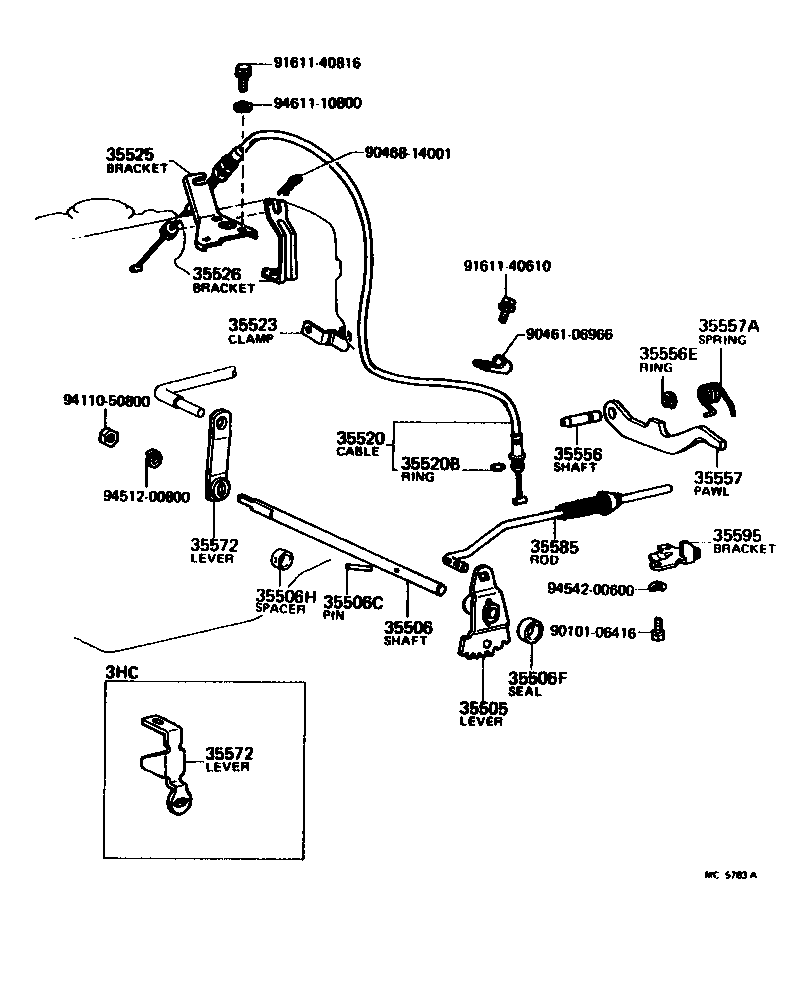

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35520 35520B 35523 35525 35526 35556 35556E 35557 35557A 35572 35572 35585 35595 9010106416 9046106966 9046814001 9161140610 9161140816 9411050800 9451200800 9454200600 9461110800
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

RT13#..ATM

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

RT134..3FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03004

RT13#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

RT13#..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

RT13#..ATM

 1
35520 - CABLE ASSY, THROTTLE
35520-20060

RT134..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RT13#..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-20021

RT13#..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-20042

RT13#..ATM

 1
35526 - BRACKET, THROTTLE CABLE GUIDE
35526-20010

RT13#..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

RT13#..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

RT13#..ATM

 1
35557 - PAWL, PARKING LOCK
35557-22010

RT13#..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25329

RT13#..ATM

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

RT134..3FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

RT134..3FC

 1
35585 - ROD, PARKING LOCK
35501-22010

RT134..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-22010

RT134..ATM

 1
Common parts
90101-06416
90461-06966
90468-14001
91611-40610
91611-40816
94110-50800
94512-00800
94542-00600
94611-10800
