RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )ATM

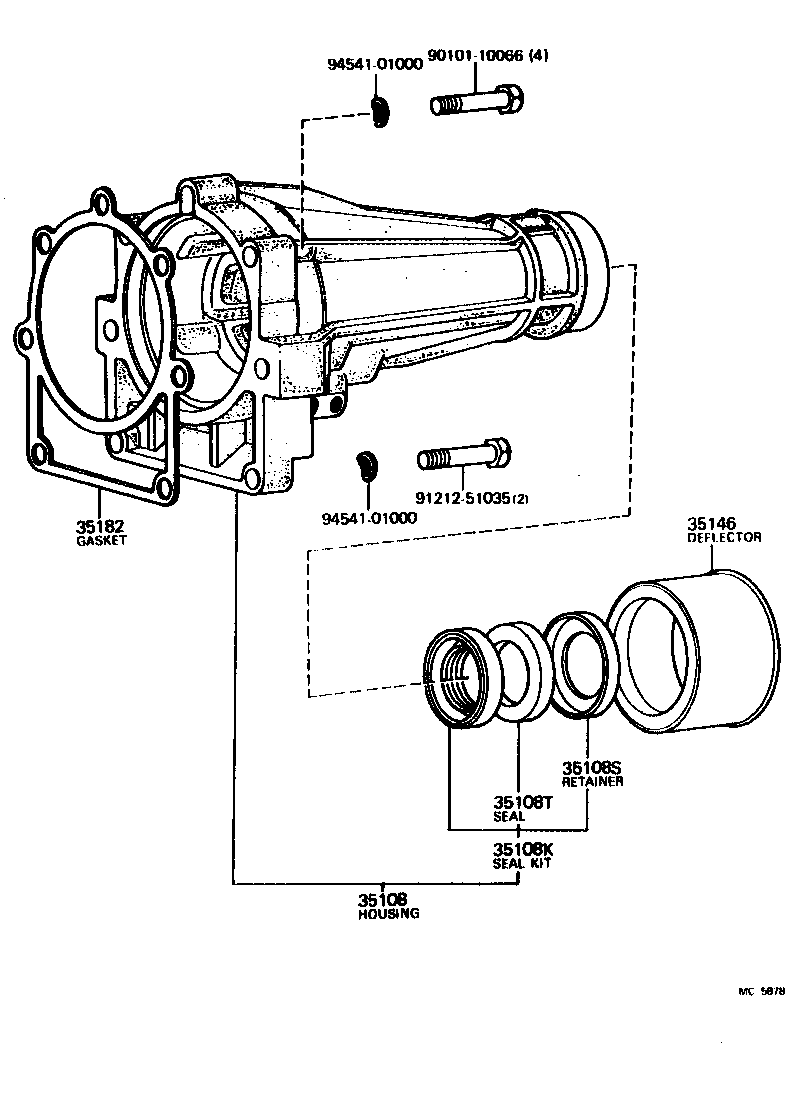

Click highlighted areas on diagram

diagram 35108 35108K 35108S 35108T 35146 35182 9010110066 9121251035 9454101000 9454101000
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-22031

RT134..ATM

 1
35108K - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30020

RT13#..ATM

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

RT13#..ATM

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

RT13#..ATM

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30010

RT13#..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

RT13#..ATM

 1
Common parts
90101-10066
91212-51035
94541-01000
