RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )ATM

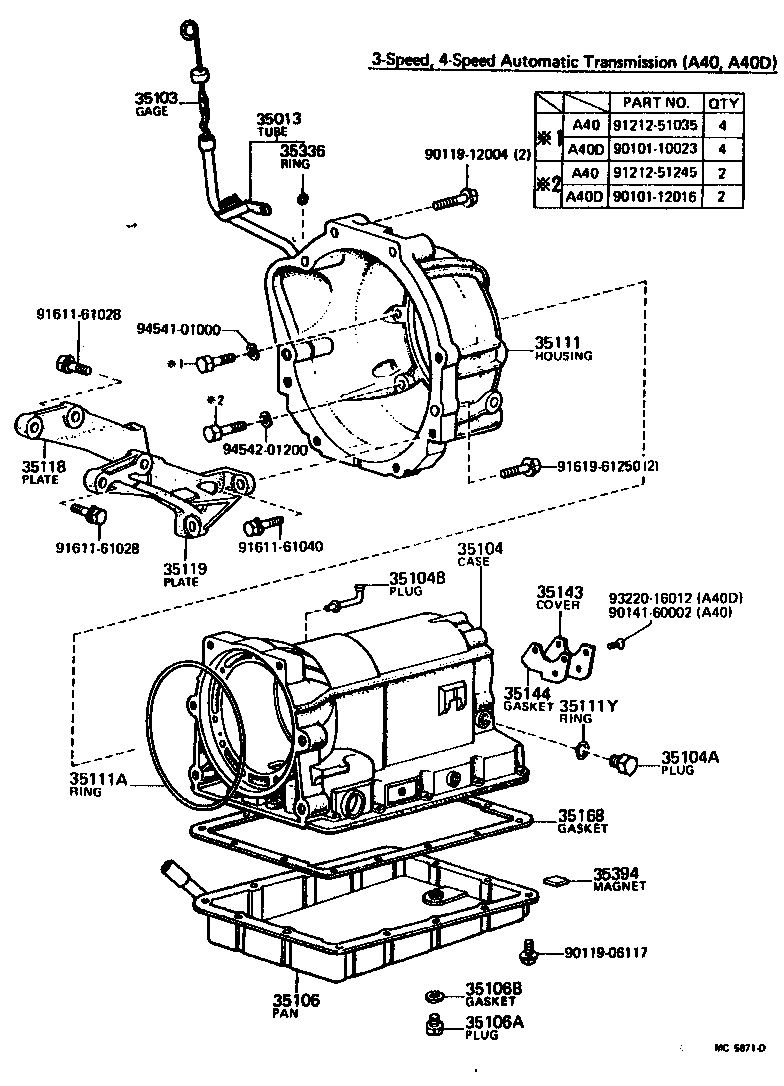

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111A 35111Y 35118 35119 35143 35144 35168 35336 35394 9010110023 9010112016 9011906117 9011912004 9014160002 9121251035 9121251245 9161161028 9161161028 9161161040 9161961250 9322016012 9454101000 9454201200
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-14091

RT13#..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-14022

RT134..ATM

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22022

RT134..ATM

 1
35104-22023

RT134..ATM

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

RT13#..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03061

RT134..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22020

RT134..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10078

RT134..ATM

L=8.0

 1
35106B - GASKET, DRAIN PLUG (ATM)
90202-10110

RT134..ATM

T=0.8,OD=22.0

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-20060

RT134..ATM

 1
35111-20061

RT134..ATM

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

RT13#..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-22030

RT13#..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-22021

RT13#..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

RT13#..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

RT13#..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22010

RT134..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

RT13#..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

RT134..ATM

 1
Common parts
90101-10023
90101-12016
90119-06117
90119-12004
90141-60002
91212-51035
91212-51245
91611-61028
91611-61040
91619-61250
93220-16012
94541-01000
94542-01200
