RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)ATM

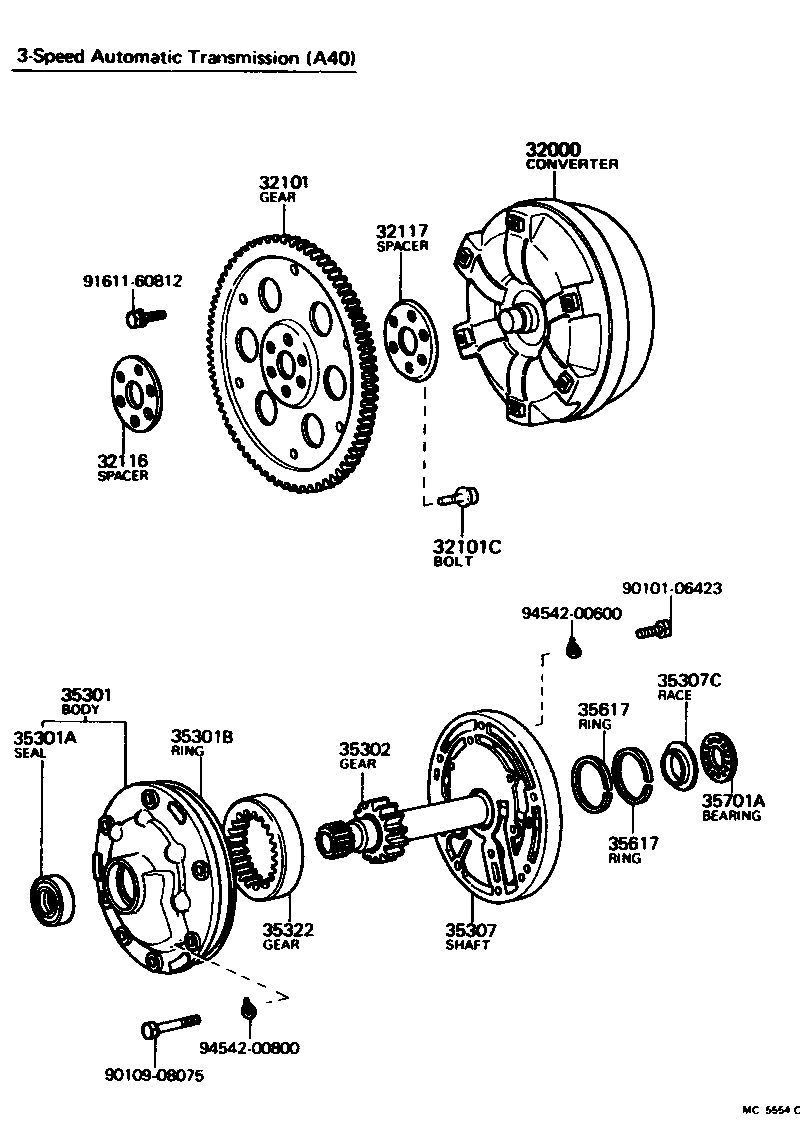

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-14060 |
RT134..ATM |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-20050 |
RT13#..ATM |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90913-01011 |
RT13#..ATM *17-1.25PX26-18 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-20011 |
RT13#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-20021 |
RT13#..ATM |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-22011 |
RT134..ATM |
1 | ||
| 35301-22012 |
RT134..ATM |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38129 |
RT13#..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35147-22010 |
RT134..ATM |
1 | ||
| 35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE | ||||
| 35321-22010 |
RT13#..ATM |
1 | ||
| 35307 - SHAFT SUB-ASSY, STATOR | ||||
| 35307-22011 |
RT134..ATM |
1 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-22010 |
RT13#..ATM T=4.3 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22010 |
RT13#..ATM T=15.286-15.235 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-22010 |
RT134..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-22010 |
RT134..ATM |
2 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90374-23012 |
RT13#..ATM |
1 | ||
| Common parts | ||||
| 90101-06423 | ||||
| 90109-08075 | ||||
| 91611-60812 | ||||
| 94542-00600 | ||||
| 94542-00800 | ||||
