RT134LG-TWHESA (1978)
Toyota Corona
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-38010 |
20R,22R..RT13# |
1 | ||
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-38010 |
20R,22R..RT13# |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-16044 |
20R,22R..RT13# |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-16044 |
20R,22R..RT13# |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-22081 |
20R,22R..RT13# |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-22081 |
20R,22R..RT13# |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-38210 |
20R..RT134..ATM..USA |
1 | ||
| 25620-38190 |
20R..RT134..ATM..USA CALIFORNIA SPEC |
1 | ||
| 25620-38191 |
20R..RT134..ATM..USA |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-38210 |
20R..RT134..ATM..USA |
1 | ||
| 25620-38190 |
20R..RT134..ATM..USA CALIFORNIA SPEC |
1 | ||
| 25620-38191 |
20R..RT134..ATM..USA |
1 | ||
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90116-08207 |
20R,22R..RT13# |
1 | ||
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90116-08207 |
20R,22R..RT13# |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-38010 |
20R,22R..RT13# |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-38010 |
20R,22R..RT13# |
1 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 11181-38011 |
20R..RT134 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 11182-38011 |
20R..RT134 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-38010 |
20R..RT134..USA |
1 | ||
| 25870-38020 |
20R..RT134..(3FC,3HC,5F)..USA CALIFORNIA SPEC |
1 | ||
| 25690-38020 |
20R..RT134..ATM..USA |
1 | ||
| 25870-38050 |
20R..RT134..ATM..USA |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-38010 |
20R..RT134..USA |
1 | ||
| 25870-38020 |
20R..RT134..(3FC,3HC,5F)..USA CALIFORNIA SPEC |
1 | ||
| 25690-38020 |
20R..RT134..ATM..USA |
1 | ||
| 25870-38050 |
20R..RT134..ATM..USA |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 90910-05137 |
20R..RT134 |
1 | ||
| 90910-05128 |
20R..RT134 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 90910-05137 |
20R..RT134 |
1 | ||
| 90910-05128 |
20R..RT134 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-38030 |
20R..RT134 |
1 | ||
| 25691-38020 |
20R..RT134 |
1 | ||
| 25691-38040 |
20R..RT134 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-38030 |
20R..RT134 |
1 | ||
| 25691-38020 |
20R..RT134 |
1 | ||
| 25691-38040 |
20R..RT134 |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90179-08146 | ||||
| 90467-11085 | ||||
| 91611-40822 | ||||
| 91611-40850 | ||||
| 91611-60820 | ||||
| 91651-40828 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

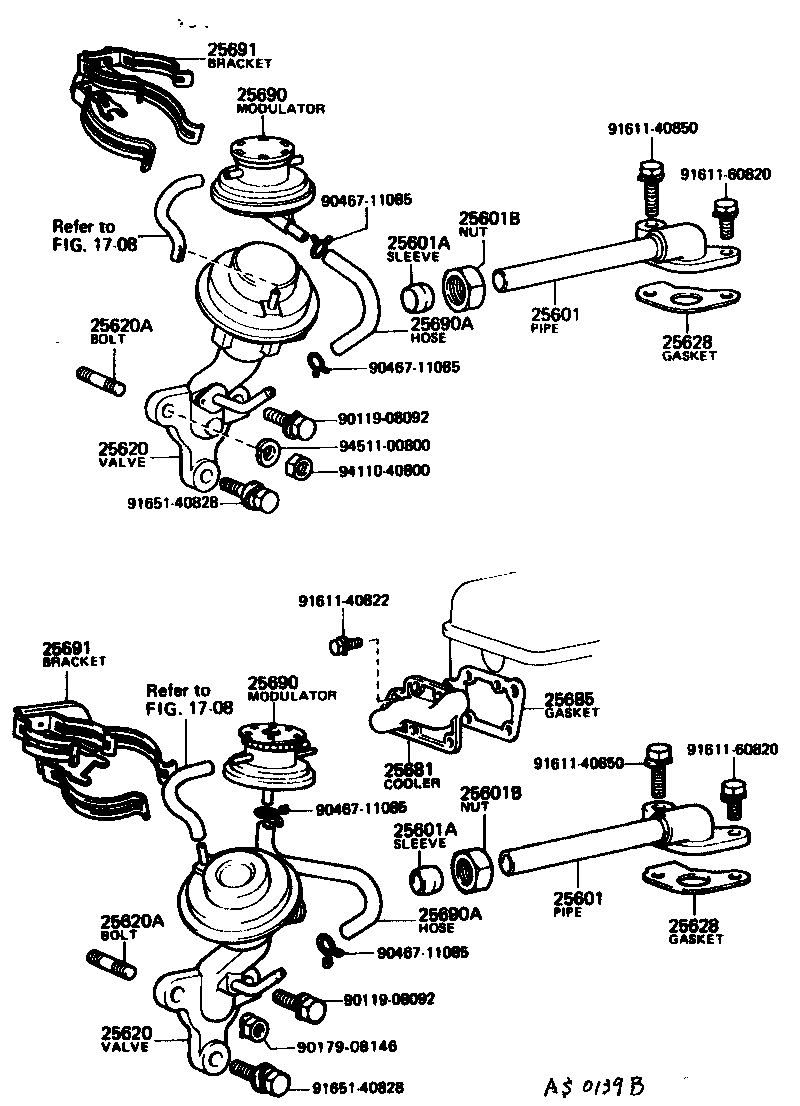

| Linked diagrams | ||||
| 1708 | ||||
