RT134LG-TWHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )

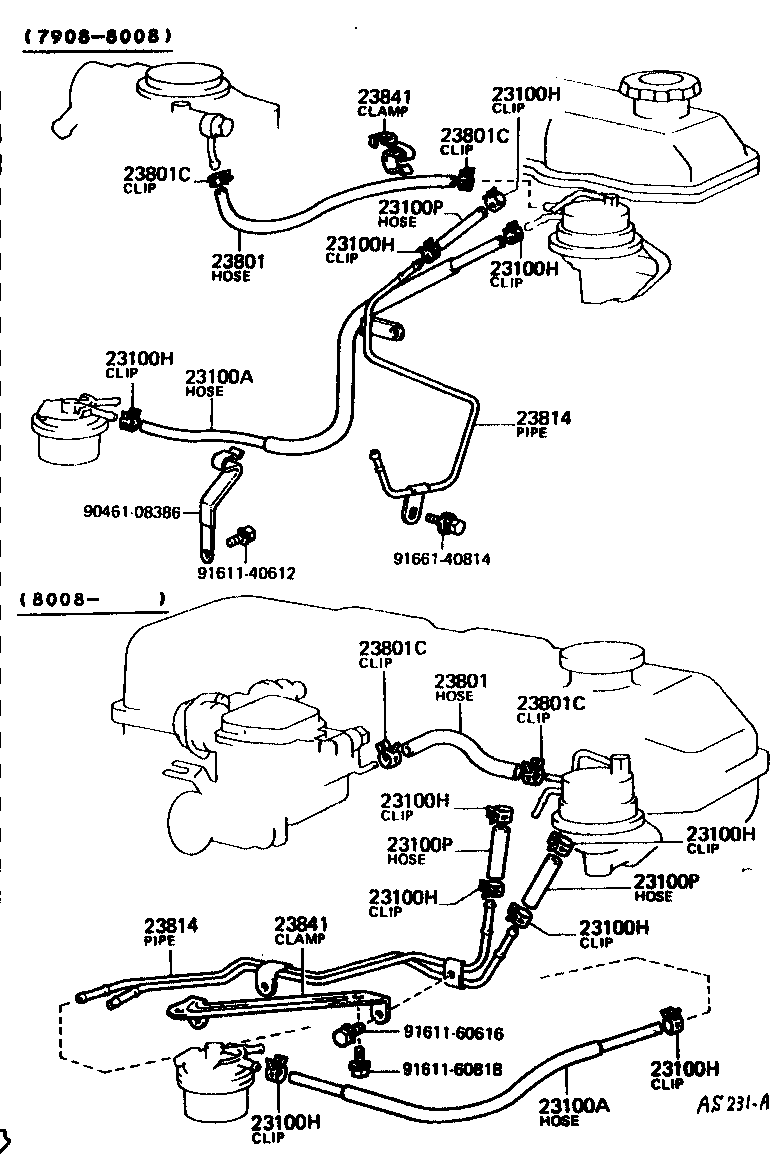

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06044 |
20R..RT134 L=440 |
1 | ||
| 90447-12009 |
20R..RT134 L=650 |
1 | ||
| 95332-06060 |
20R..RT134 *H,L=440 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06044 |
20R..RT134 L=440 |
1 | ||
| 90447-12009 |
20R..RT134 L=650 |
1 | ||
| 95332-06060 |
20R..RT134 *H,L=440 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-08030 |
20R..RT134 *H,L=240,ID=7.6 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-08030 |
20R..RT134 *H,L=240,ID=7.6 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RT134 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RT134 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RT134 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RT134 |
2 | ||
| 23814 - PIPE, FUEL DELIVERY | ||||
| 23814-38010 |
20R..RT134 |
1 | ||
| 23814 - PIPE, FUEL DELIVERY | ||||
| 23814-38010 |
20R..RT134 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-37010 |
20R..RT134 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-37010 |
20R..RT134 |
1 | ||
| Common parts | ||||
| 90461-08386 | ||||
| 91611-40612 | ||||
| 91611-40814 | ||||
| 91611-60616 | ||||
| 91611-60818 | ||||
(7809-7908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06044 |
20R..RT134 L=440 |
1 | ||
| 90447-12009 |
20R..RT134 L=650 |
1 | ||
| 95332-06060 |
20R..RT134 *H,L=440 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RT13# |
6 | ||
| Common parts | ||||
| 90461-08386 | ||||
| 91611-40612 | ||||
| Linked diagrams | ||||
| 2103 | ||||
