RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

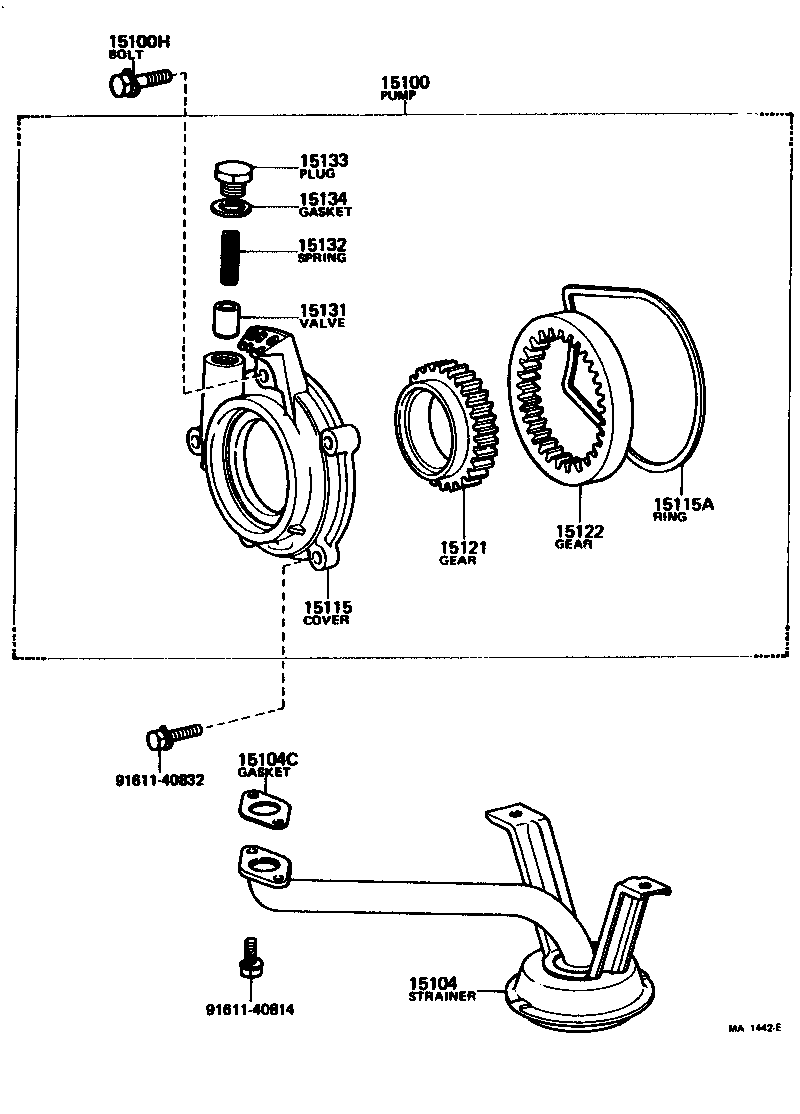

Click highlighted areas on diagram

diagram 15100 15100H 15104 15104C 15115 15115A 15121 15122 15131 15132 15133 15134 9161140814 9161140832
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-38021

20R,22R..RT13#

 1
15100H - BOLT, SEAL
15189-38020

20R,22R..RT13#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-38040

20R,22R..RT13#

 1
15104C - GASKET(FOR OIL STRAINER)
15147-38020

20R,22R..RT13#

 1
15115 - COVER, OIL PUMP
15115-38022

20R,22R..RT13#

 1
15115A - RING, O(FOR OIL PUMP COVER)
15188-38030

20R,22R..RT13#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

20R,22R..RT13#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

20R,22R..RT13#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

20R..RT134

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

20R,22R..RT13#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

20R,22R..RT13#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

20R,22R..RT13#

 1
Common parts
91611-40814
91611-40832
