RT134LG-TWHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

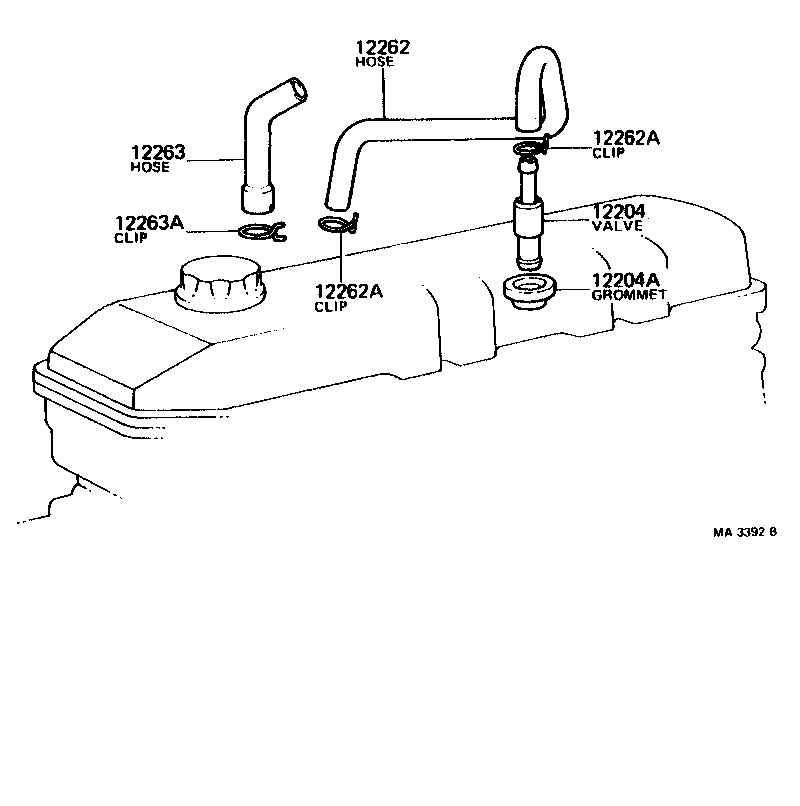

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 12263A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-45010

20R..RT134

 1
12204-31020

20R..RT134

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

20R,22R..RT13#

 1
12262 - HOSE, VENTILATION, NO.2
12261-38011

20R,22R..RT13#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

20R,22R..RT13#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

20R,22R..RT13#

 2
12263 - HOSE, VENTILATION, NO.3
12262-38010

20R,22R..RT13#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

20R,22R..RT13#

 1
